Rusty pivot bars

Quick Learner from North Carolina

Mar 1, 2023 5:11 pm

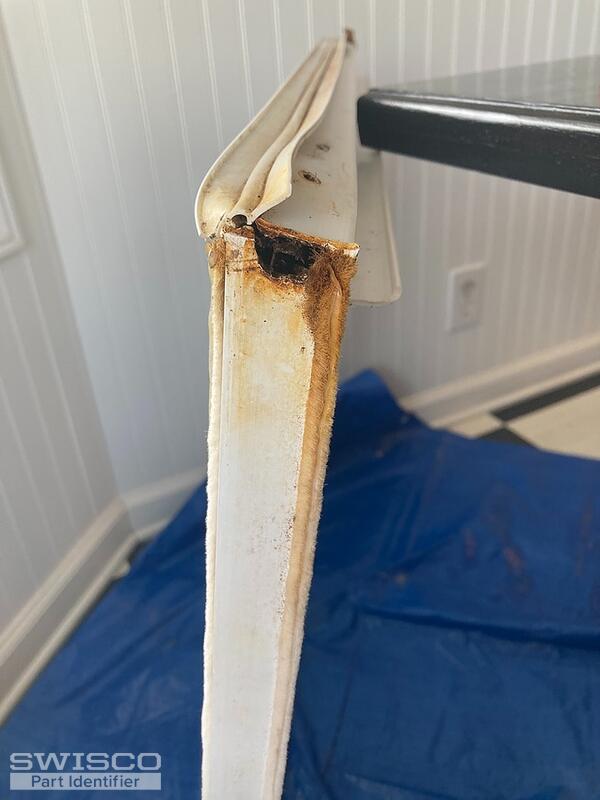

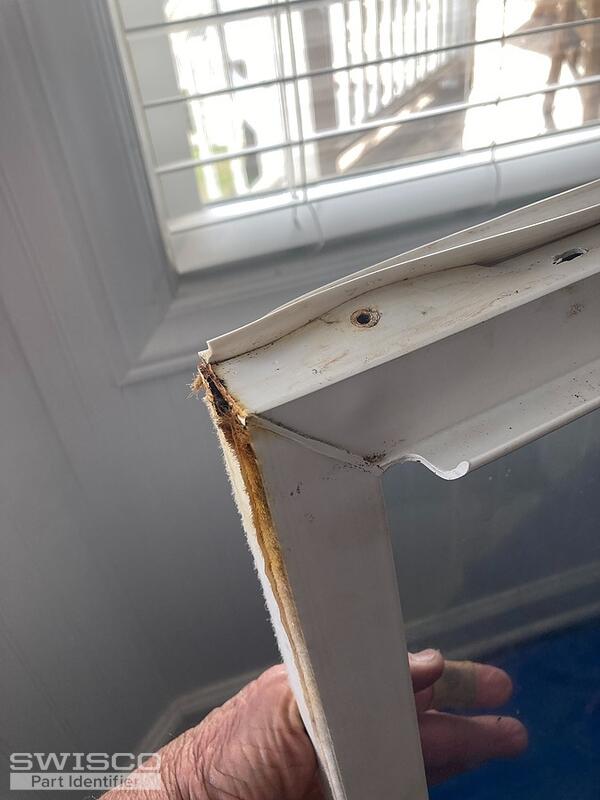

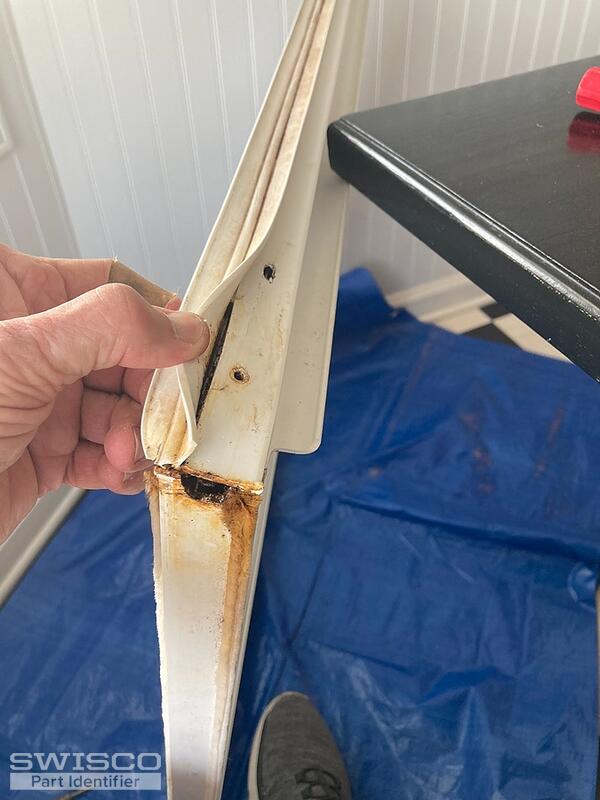

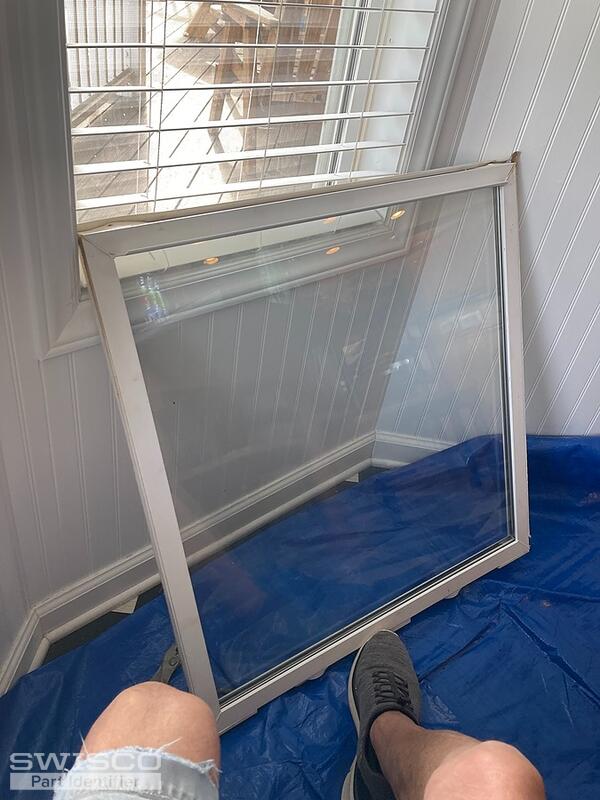

Here's the pictures. The issue is trying to remove a rusty
pivot bar which I can't seem to dislodge, in or out; and replace it with 26-040.

Thanks, Rich

4 user uploaded images

6 Replies

Emily from SWISCO

Mar 2, 2023 9:57 am

Hey, Rich.

Thank you for reaching out to us. We actually have a video on this exact issue which I have posted below. Take a look and let us know if you have any questions!

Quick Learner from North Carolina

Mar 2, 2023 12:25 pm

Thanks I reviewed that previously and again; which gave me the impression I could push it into the channel if I couldn't pull it out. So far neither has worked. It's quite rusty l/corroded. Do you happen to know how protected the glass is from the channel I am pulling and pushing on? Thanks Rich

Emily from SWISCO

Mar 2, 2023 1:09 pm

The channel that the pivot bar occupies is hollow from end to end. You can, theoretically, push the pivot bar straight through to the other side. However, you don't want to hammer it in or anything like that. The last thing you want is to risk cracking the vinyl. I'm not sure how long you soaked the pivot bar in WD-40 but in some cases, you have to really let it soak for at least 24 hours.

Quick Learner from North Carolina

Mar 2, 2023 2:43 pm

Great info Emily; may keep me out of making the problem bigger. Thanks much. Rich

Emily from SWISCO

Mar 2, 2023 3:28 pm

I'm happy to help, Rich. Let me know if I can be of further assistance!
