SLIDING DOOR LOCK MECHANISM

Home Owner from 94110

May 4, 2020 3:49 pm

Dear Sir/Madam,

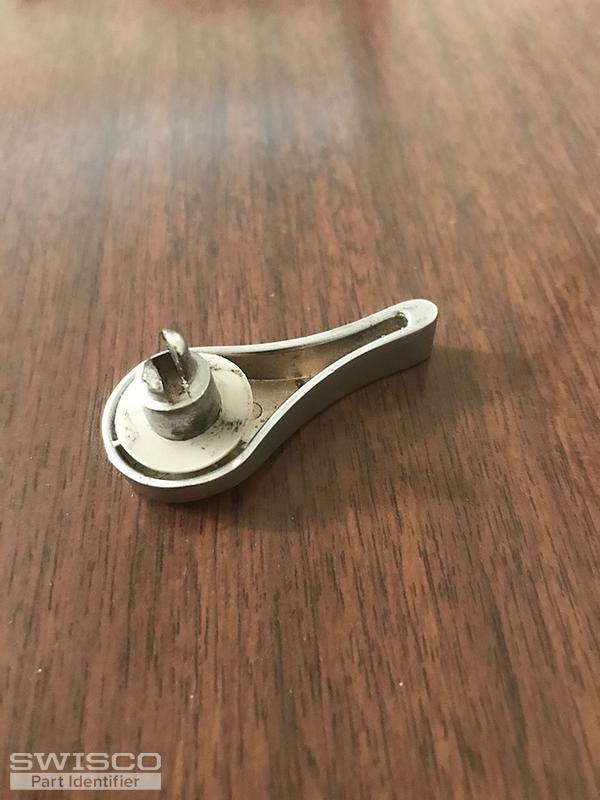

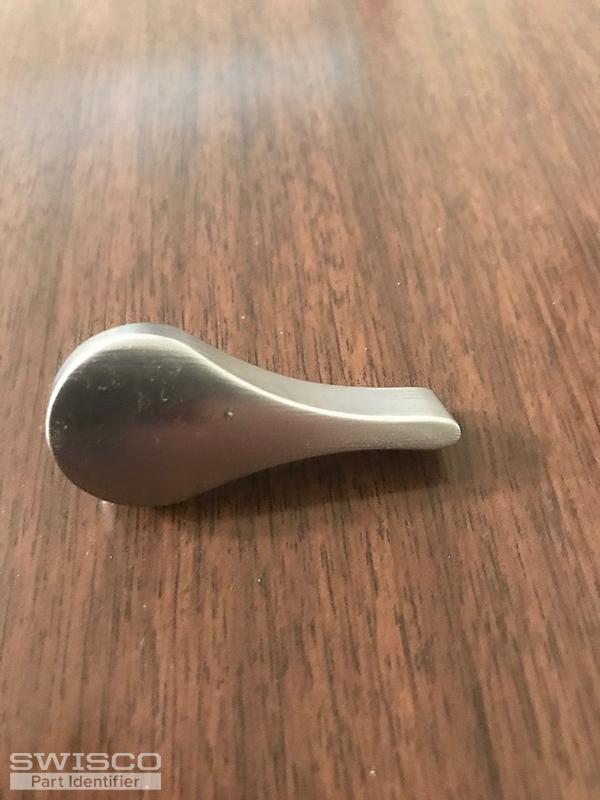

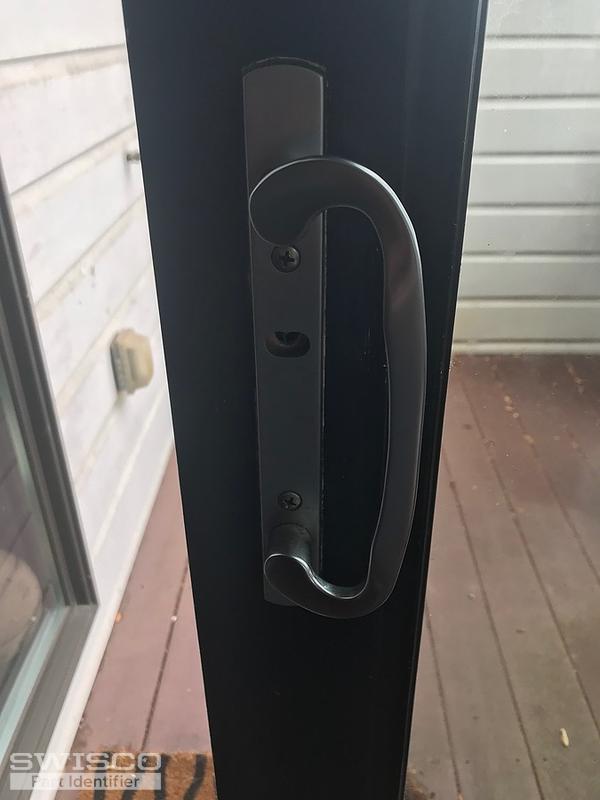

I am trying to find replacement parts for the sliding door locking mechanism shown here. I don't have any identifying information on this specific door. In the same area we have a swinging door that has Ashland hardware which leads e to believe that this MIGHT be Ashland but I don't see anything that identifies it. Do you have something you can recommend that can replace this?
Eric

5 user uploaded images

6 Replies

Tom from SWISCO

May 7, 2020 10:56 am

Hey, Eric. If the thumb lever is the only thing that broke then you could use our 82-107 to replace it. The only downside is that this piece is only available in white.

If white's no good, then you could consider a new handle set like our 82-087.

Home Owner from 94110

May 7, 2020 11:36 pm

Hi Tom,
Thanks for your reply and guidance. So I only need 82-087? Also, dumb question but the picture shows the thumb lever going the opposite direction of what we had. Is there a difference? Or can it be installed going to either the left or right?

Thanks
Eric

Tom from SWISCO

May 8, 2020 7:43 am

Hey, Eric. As long as everything else is in good condition then the handle set may be all you need. If you wanted, you could test the mortise manually with a screwdriver to see if the hook extends properly without the thumb lever. If it fails, then you can use our 82-265. Otherwise you can keep using it with the new hardware.

Our 82-086 can be flipped around or used for either the left or right side, yes. The pull is mounted to the base plate with screws so it's very easy to turn the pull to face whatever orientation is necessary.

Home Owner from 94110

May 9, 2020 6:32 pm

Hi Tom,
Thanks that's great. For the 82-087, I'm trying to match to the color that we have on our inside handle to your colors. WOuld you say that we have Satin Nickel or Antique Silver?

Thanks
Eric

4 user uploaded images

Casey from SWISCO

May 11, 2020 9:58 am

That looks like Satin Nickel to me. I expanded the image of this finish a little in the hopes that it will help you decide. Let us know what you think!

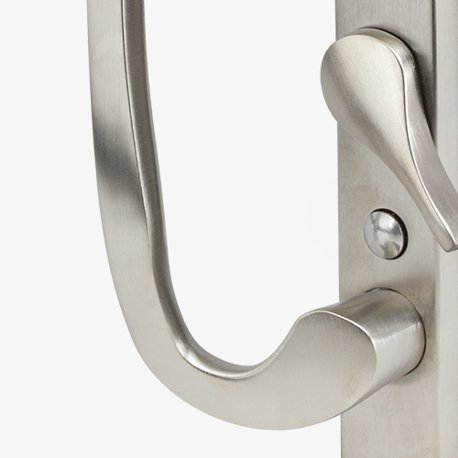

Close up view of the Satin Nickel finish
