SPIRAL

Hello, thank you for posting,

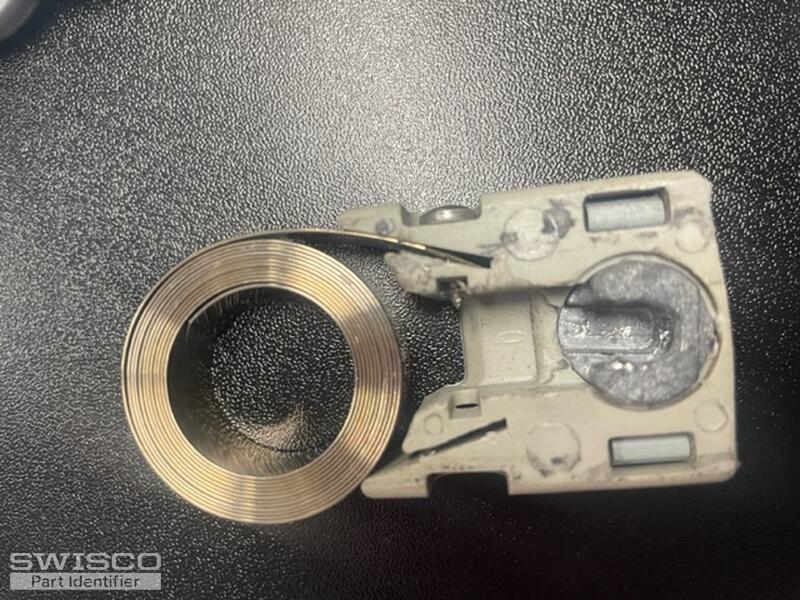

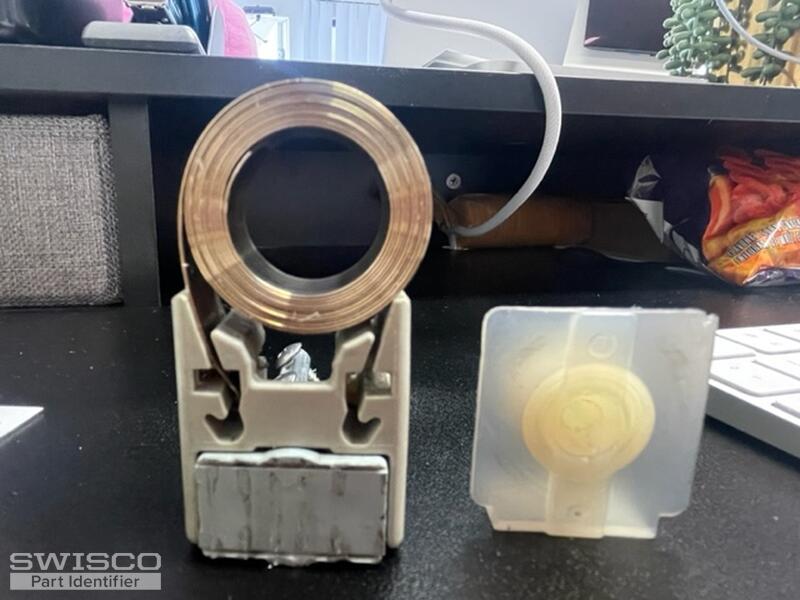

Your pivot shoe resembles the 15-177 along with the S152-9 coil spring. For a new cover, review the 15-143 bushing, 15-144 bushing cap and 15-145 support barrel. Compare the dimensions to confirm a good fit!

A S152-9 coil can support 9 pounds of weight. Together with the other side of the window, the window sash should weigh 18 pounds, please compare.

Alternate image for 15-177

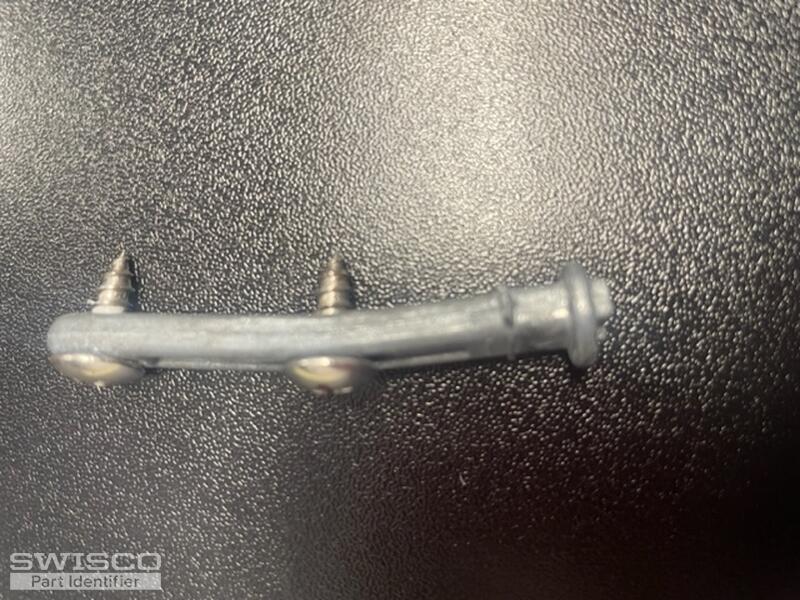

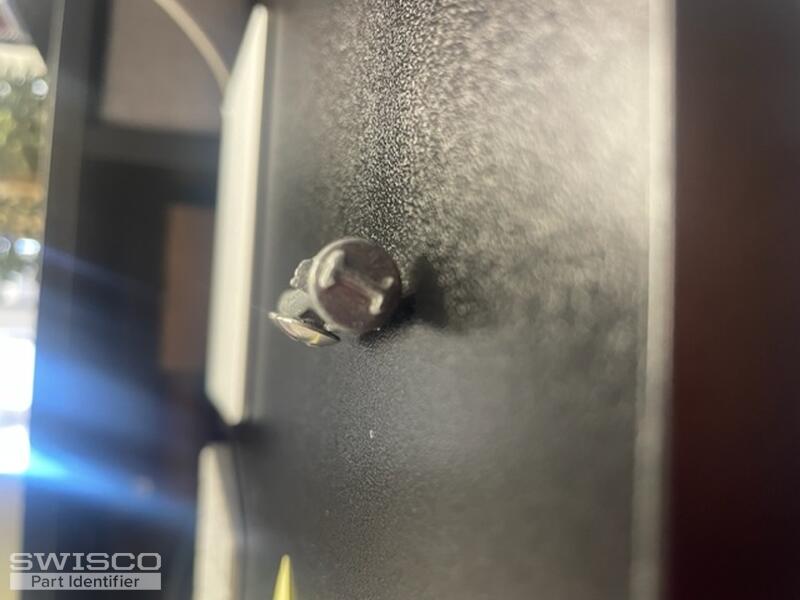

For the pivot bar, are you able to show us it removed from the pivot shoe where we can see a clear view of the tip? Thank you!

Thank you for the additional pictures,

Your pivot bar looks to be a match for the 26-466. Please review the dimensions below to confirm a good fit! Let us know if you have any additional questions.

Dimensions for 26-466

Dimensions and closer look at 26-466
