Pivot Cam

Handy Person from WINONA
I have Willmar Windows and the sticker says "Metal Clad Vertical Slider" on the right side it has U - 0.35 - 98

What I believe I'm looking for is balance pivot shoe

thx
3 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

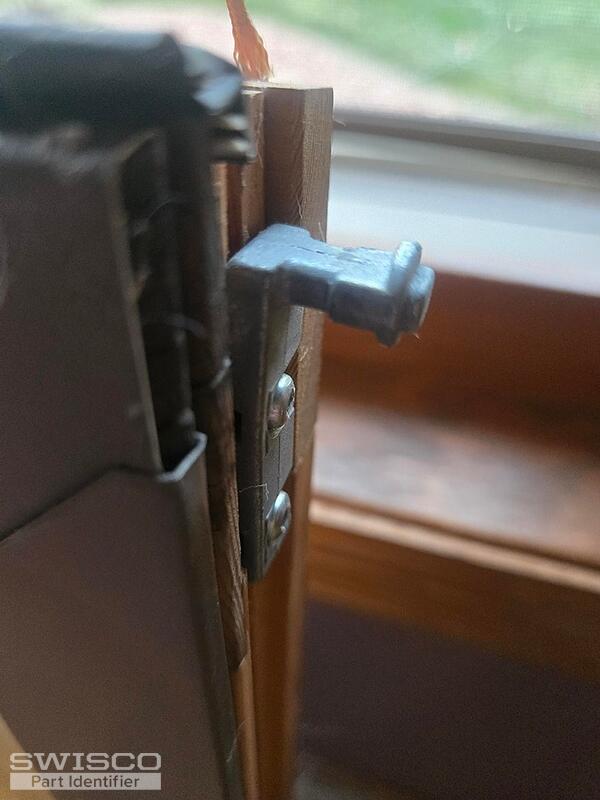

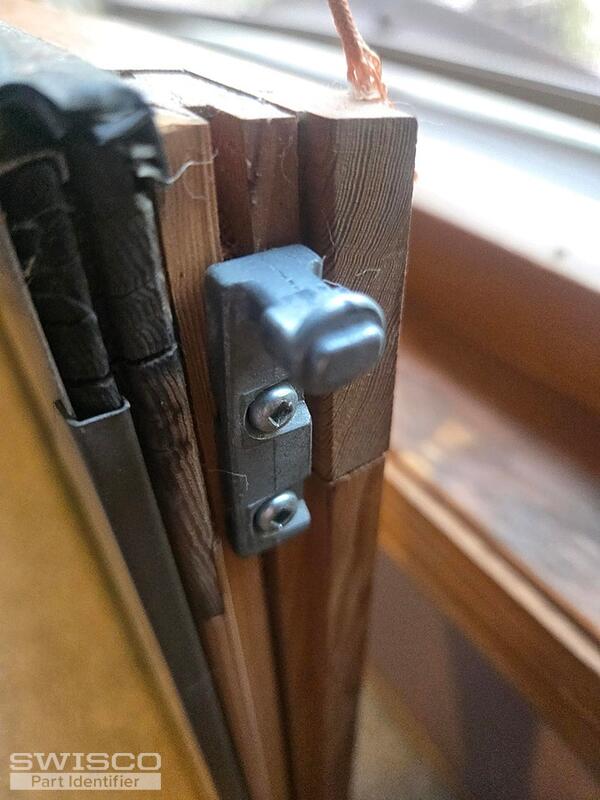

Thanks for posting! The part you have pictured here is the pivot bar. We do not have an exact match for it but there is a chance we may have a replacement solution that will work for you. To start, may I please see a photo of the shoe this hardware interacts with?

Please feel free to reach out with any questions you might have.

Home Owner from WINONA

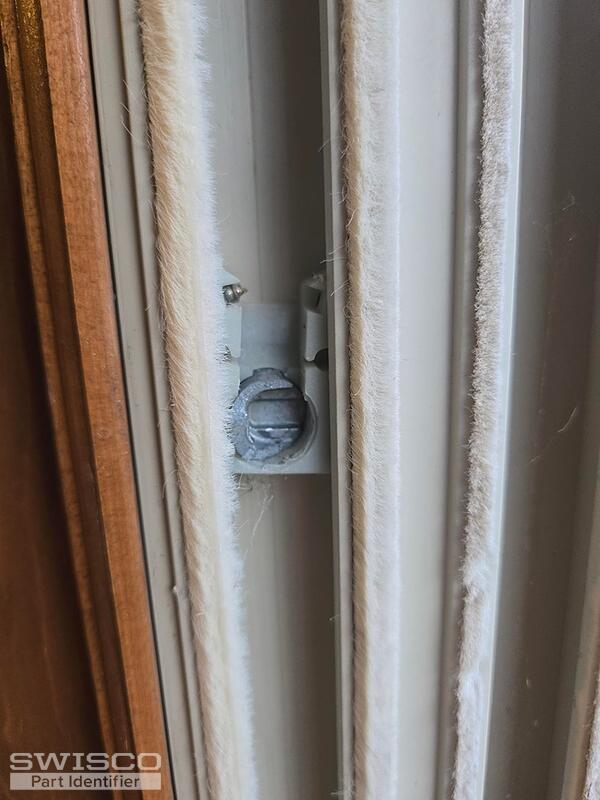

Sorry for my delay, needed some warmer weather to open the windows :) Attached is picture of what the balance pivot show slides down into and the look of part I need (attached to window).
thx
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Your shoe appears to have a damaged cam, so you're going need to replace that piece as well. This cam is what secures the pivot bar so that the window can be tilted up/down for cleaning and removal. Your exact shoe is no longer made but our 15-177 will work well as a suitable replacement.

The compatible springs are the 1/2" wide Series 152 Coil Balances. Be sure to double check that these don't need to be replaced as well.

Alternate image for 15-177
Alternate image for 15-177

The pivot bar you have is also no longer made but the manufacturer suggest using the 26-423 Pivot Bar in its place. To install it you'll need to cut/shave down the bent arm on the top as well as the piece protruding from the balance. Keep in mind, altered hardware cannot be returned, per our return policy.

Alternate image for 26-423
Alternate image for 26-423
