Sash Balance Identification

A quick learner from Beaumont, TX, United States says:
December 14, 2015
Hey

This is the upper sash balance. The bottom sash balance is a spiral sash (same as Series 500).

The diameter of the sheath (if you like) is 7/16". The length of balance is 29 1/2". Other dimensions are in the pics.

I've looked and cannot find anything like this.

Cheers
Peter

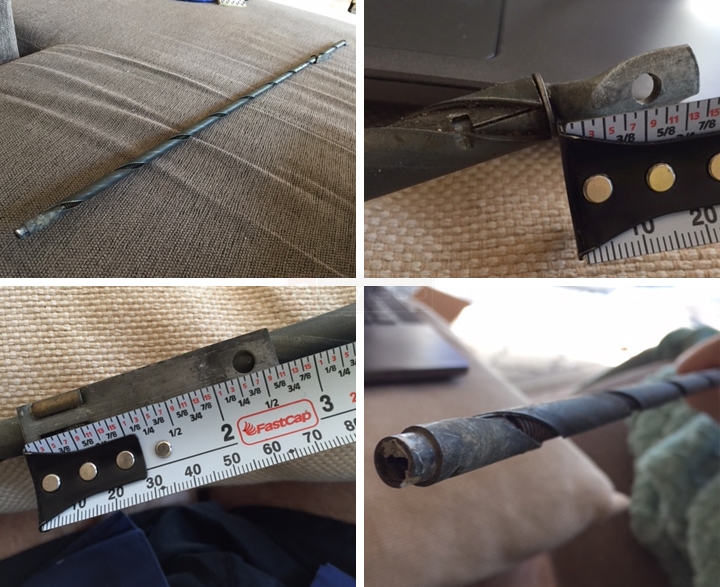

User submitted photos of a window balance.
Profile picture of Paul
Paul from SWISCO responded:
December 17, 2015
Hey, Peter. This is an old balance that isn't being made anymore, but fortunately our S500-30 should be able to replace it. I would also recommend the Red Tip color option, an a 17-012 bracket so that it can attach to the sash.
#8 x 3/4" Philips Pan Head SS Screw
#8 x 3/4" Philips Pan Head SS Screw
33-090
$0.27
30" Series 500 Spiral Balance
30" Series 500 Spiral Balance
S500-30
$9.72
Bracket, #32
Bracket, #32
17-012
$1.20
Wire Charging Tool for Non-tilt Windows
Wire Charging Tool for Non-tilt Windows
75-004
$2.55
How to Identify a Replacement Spiral Balance
How to Identify a Replacement Spiral Balance
VIDEO
WATCH >
How to choose the proper spiral balance tip color
How to choose the proper spiral balance tip color
GUIDE
READ >
How to adjust a spiral balance on a non-tilt window
How to adjust a spiral balance on a non-tilt window
GUIDE
READ >
