Sash Balance for Non Tilting sliding windows 1690gg B.S.I 23

Handy Person from Largo, FL
Apr 13, 2024 11:46 am
Hi trying to replace these sashes and much more around the house.

So if you can help me figure out how to identify them my self as my windows differ in size

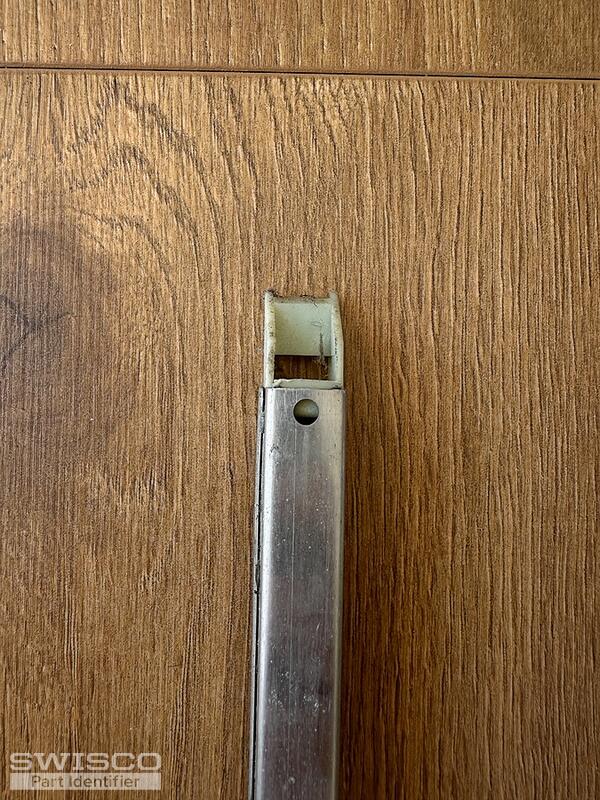

IMG_7078 IMG_7077 IMG_7076 IMG_7075 IMG_7074
5 user uploaded images
3 Replies
Bob
Bob from SWISCO
Apr 14, 2024 9:53 pm
SWISCO
EXPERT

Hello there. This looks like an S351-17 or S390-17 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old hardware to see what matches best.

You then have to choose a stamp option, which designates the weight range the balance is designed to support. Your old balance's stamp of 16-9 is from a rating system we do not use. To know what stamp to select, weigh the window sash the balance supports. You can then match that exact weight with one of the weight ranges listed alongside each stamp option under the product description of each and every channel balance we carry.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

The video below explains more how to identify channel balances on your own, in particular to getting the length right. Let me know if you have further questions.

Handy Person from Largo, FL
Apr 19, 2024 11:32 am
So the heel-to-toe measurement on my sash is 1 1/8 inches therefore I selected the S390 model. But my Window's weight is 30LB, and the max I can select is 25LB for that balance.

What should I do?
Bob
Bob from SWISCO
Apr 19, 2024 3:09 pm
SWISCO
EXPERT

Gotcha, thanks for checking that sash weight. We don't currently offer a stamp option for this balance that holds that weight, but please give me a little time to look into it and see if that's something we can add for you. I'll get back to you ASAP!
