Sash Pivot Bar replacement for 6221 Bristol Window & Door

Question

I am struggling to find a replacement place or the original manufacturer for these replacement windows. I did contact a couple of companies, but the couple I have found deny making the windows. I'm hoping there might be a part here to resolve my issue.

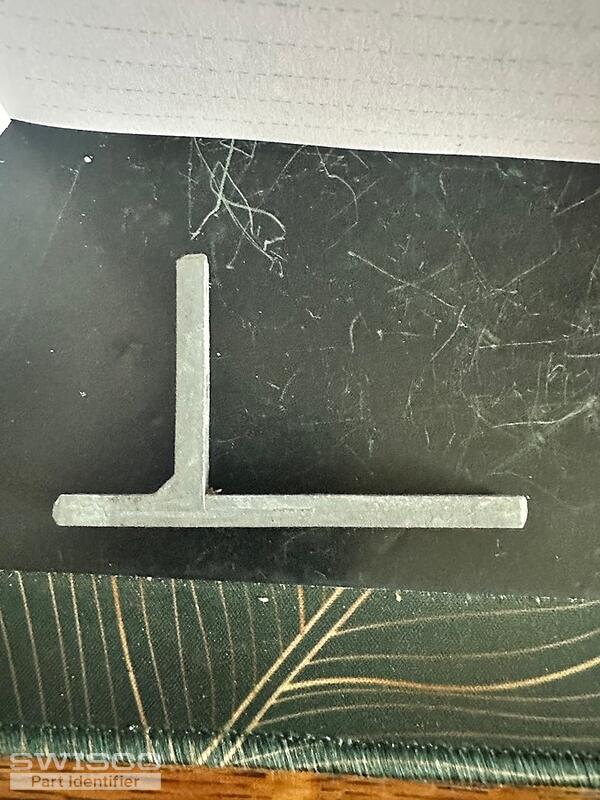

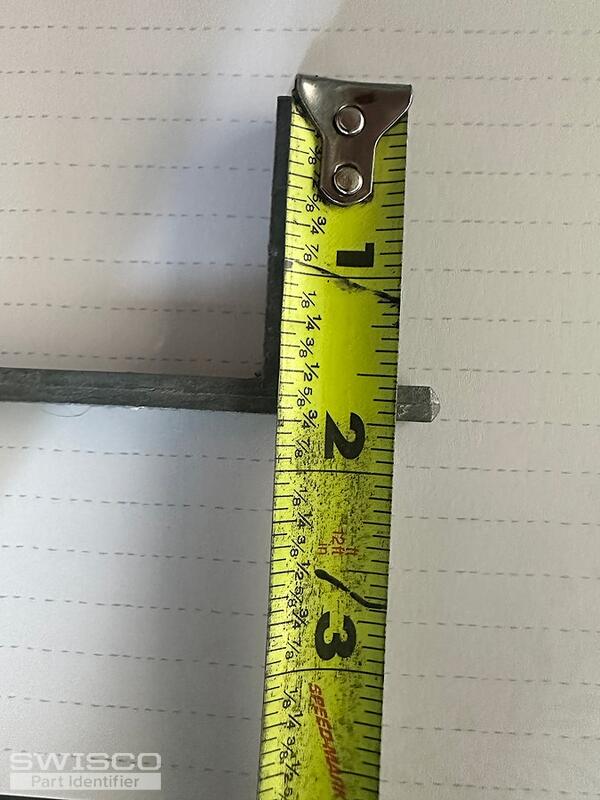

Attached are photos and if the tape measure doesn't help here are the dimentions:
overall metal with is 5/16" x 1/4"
Bottom length 2 7/8"
Holes are 1 5/8" and 2 5/8" on center (1" between and measured from sash lock)
Slot is 5/8" long,1/8" wide, 1/16" deep (which goes into the pivot lock shoes.
Upper arm 1 3/4"
Located 7/8" down (on center), the lower arm measured from the pivot lock shoes
Hole is 7/8" on center (measured from the top down)

Jasmine · Accepted Answer

Hey there,

Thanks for posting! We've come across this pivot bar before, our senior experts believe you may have a Schuco window. Unfortunately, we don't have a direct replacement for it but our best suggestion is the use the 26-089 Pivot Bar.

While it does not have the top peg, you will need to reinstall the screw on the side to ensure the frame remains held together.

Alternate image for 26-089
