Sash Pivot bar, Top tilt latch, Pivot Lock Shoe
Quick Learner from Montana
Sep 19, 2023 4:54 pm

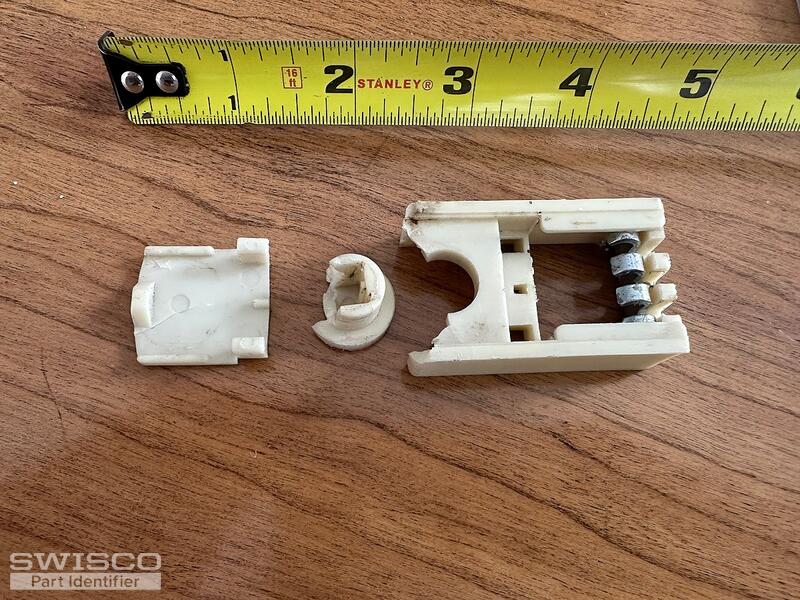

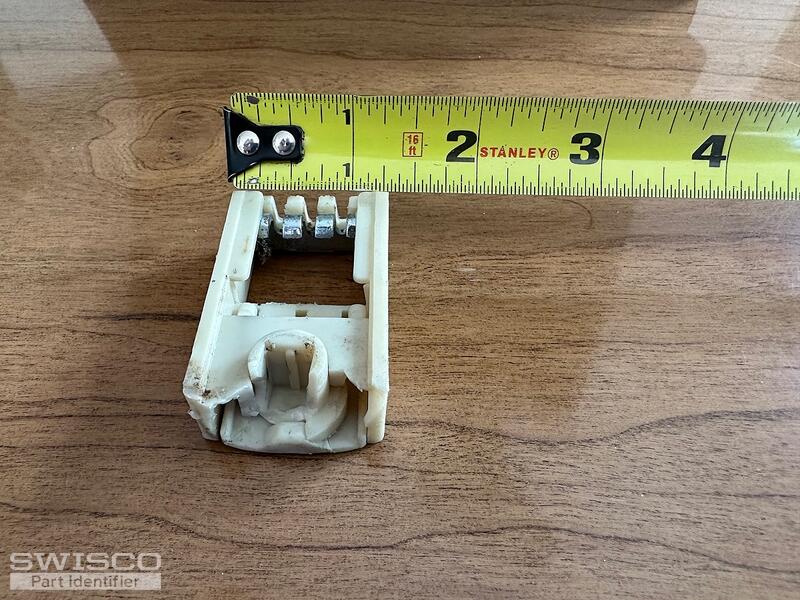

I'm looking for these parts can you help me? I ordered the top Tilt Latch sets #26-211 and am returning as they are to large.
5 user uploaded images
4 Replies
Emily from SWISCO
Sep 20, 2023 11:38 am
Hello!
We don't sell your exact latch but the 26-334 is similar though we can't promise it will work. Take a look at the specifications and see what you think.
As for the pivot shoe, can you write out the thickness and width? Knowing that will help us narrow down your options.
Quick Learner from Montana
Sep 21, 2023 11:56 am

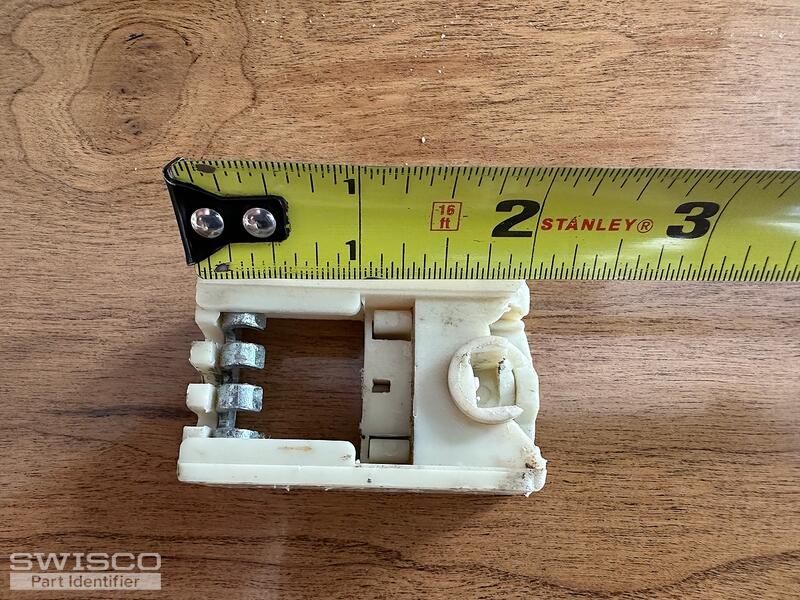

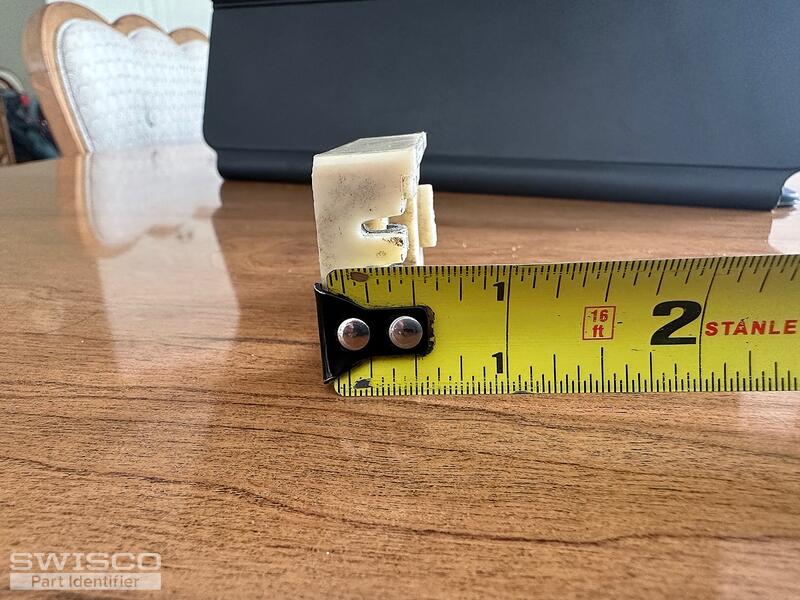

The dimensions of the pivot shoe are as follows: 1 1/4" wide x 1/2" thick x 2" high
Thank youi
Thank youi
3 user uploaded images
Emily from SWISCO
Sep 22, 2023 7:49 am
Thanks for getting back to us! Our 15-046 pivot shoe appears to match your dimensions. As for the pivot bar, our 26-063 looks like a good match. Let us know what you think or if you have any questions!
Alternate image for 15-046
Detailed image of the pivot bar slot of the 15-046 pivot shoe.
Alternate image for 26-063
