Sash balance

A home owner from Arizona says:
February 12, 2023

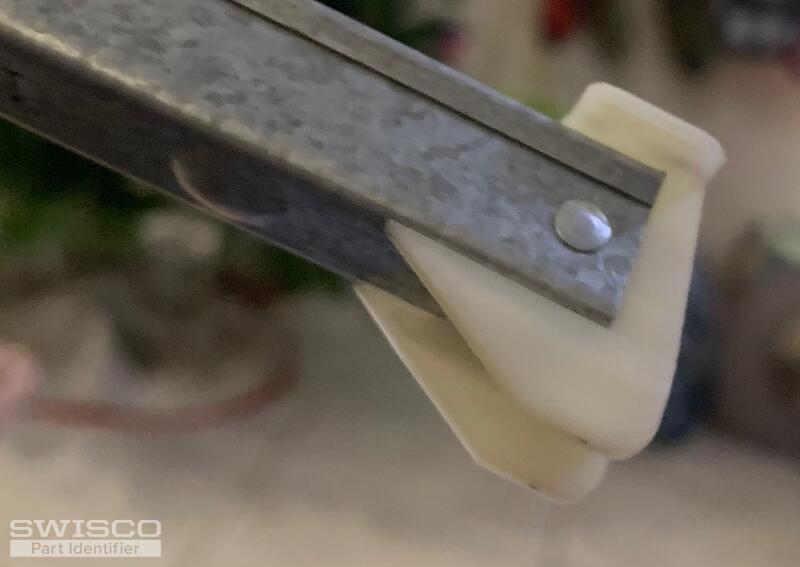

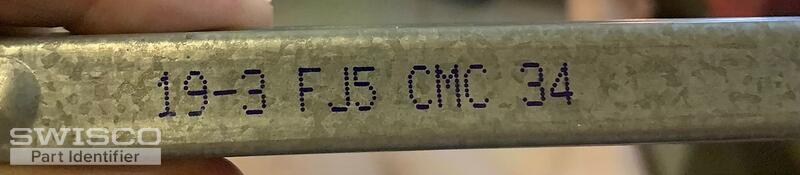

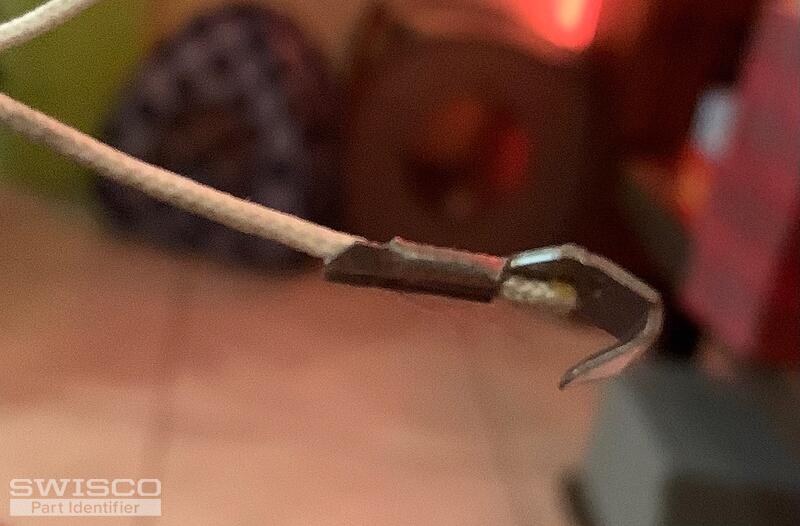

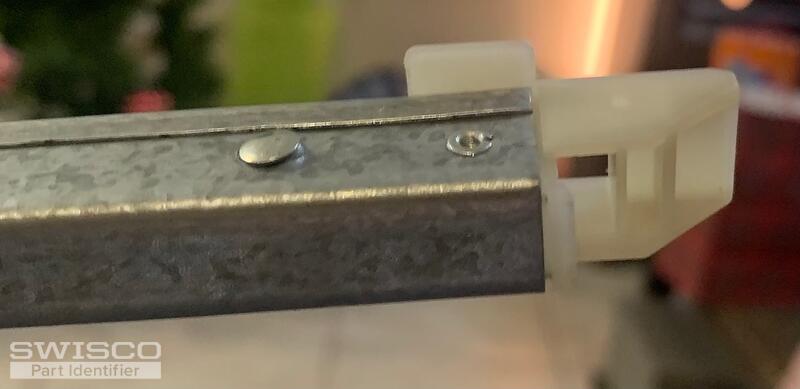

Hello, I'm looking to replace both my balance's, not sure if it's a model 380 or 385. The metal housing is 20 inches. I have enclosed pictures of the stamp and end pieces. Thanks for the help!

Nate

Thumbnail of the uploaded file named F41F93F8-AE72-4BD3-8612-123C0FF3716C.jpeg
Thumbnail of the uploaded file named 5ADD6580-F6F7-46DF-95D5-79F99224F142.jpeg
Thumbnail of the uploaded file named 7E7A635B-8A3F-4FE8-900B-2B8CE545B825.jpeg
Thumbnail of the uploaded file named A416C87E-E65D-4FF9-B8EA-4D5F4102DA1D.jpeg
Profile picture of Emily
Emily from SWISCO responded:
February 14, 2023

Hi, Nate.

Thanks for reaching out to us! I agree that you have either our S380-20 or S385-20 channel balance but I'm afraid I don't know which one you would need. The best match will depend on the depth of the balance's bottom fitting which I, unfortunately, can't determine from photos. You'll need to measure as shown in the image below and use your best judgment. You will also need the 1930 spring strength option, based on your 19 3 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
20" Series 380 Channel Balance
20" Series 380 Channel Balance
S380-20
$9.38
20" Series 385 Channel Balance
20" Series 385 Channel Balance
S385-20
$9.38
