Sash coil and housing

Quick Learner from Toronto

Jul 17, 2023 4:31 pm

Hi there

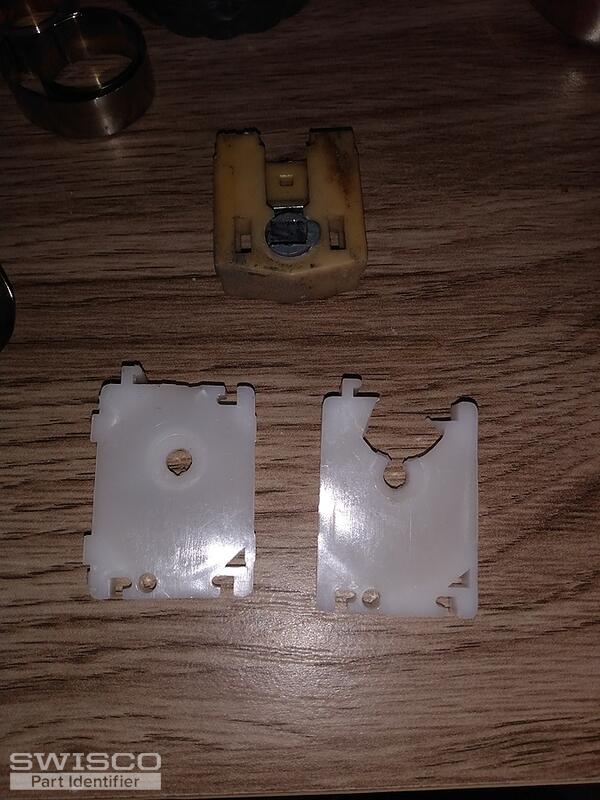

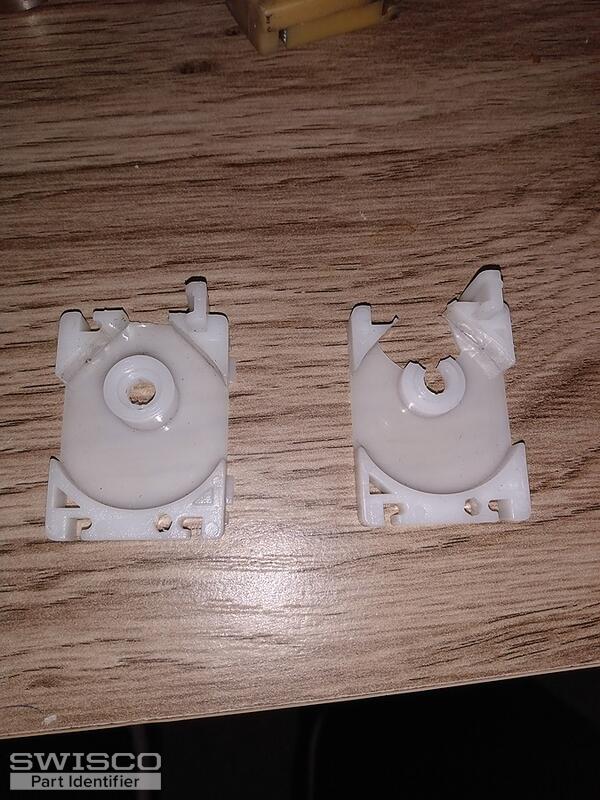

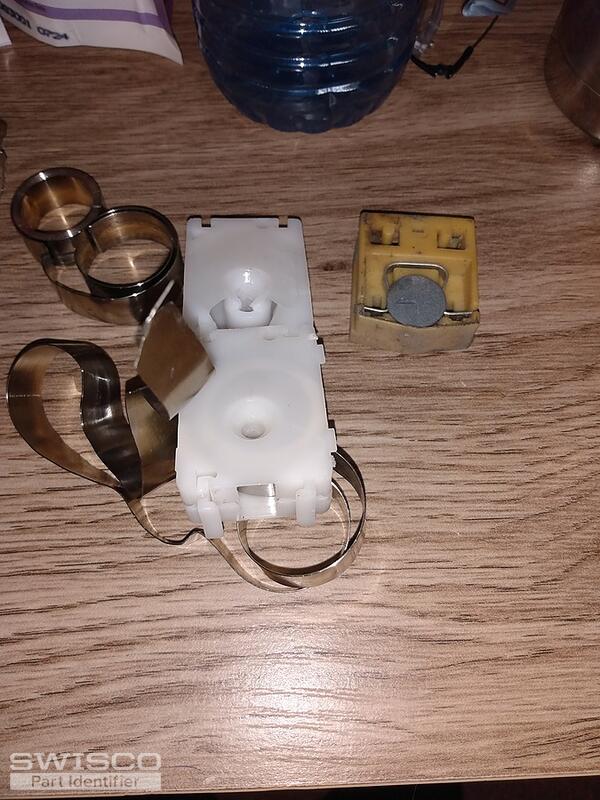

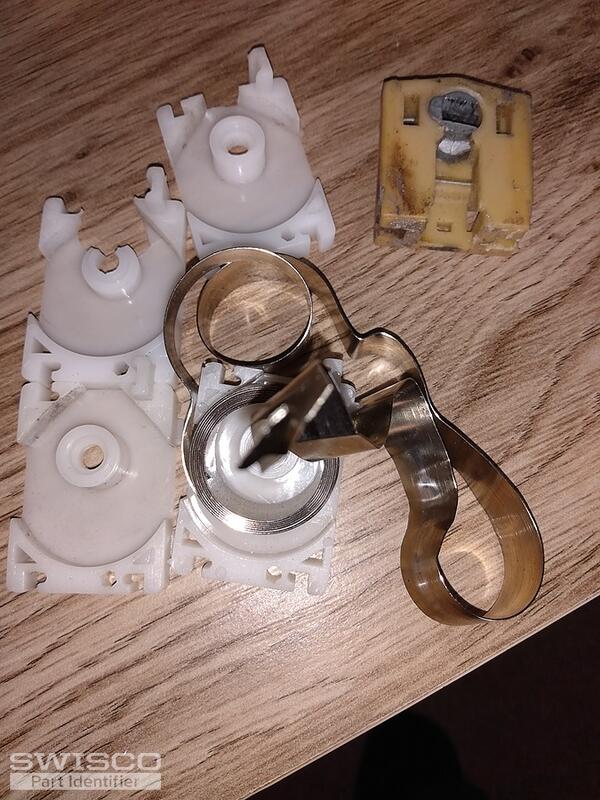

I am searching for sash coil and plastic frame housing, double on each side of Window

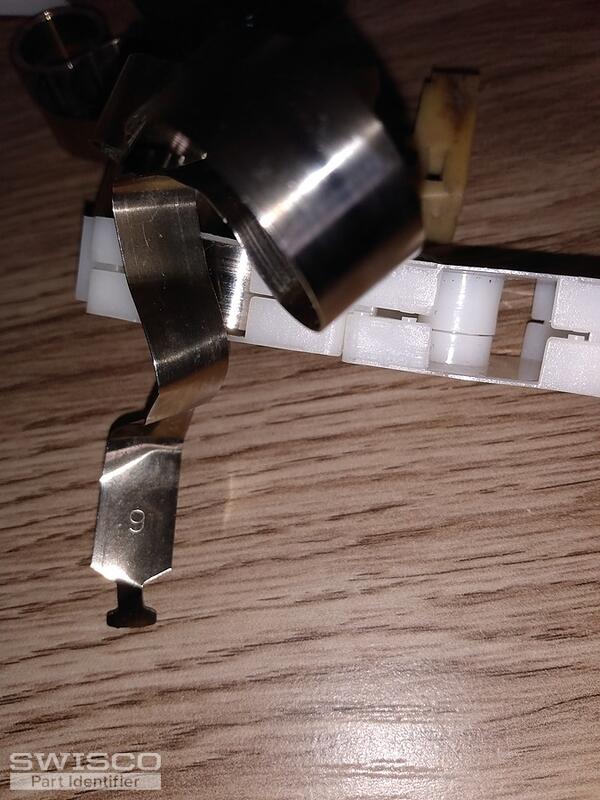

Stamp on existing coil is 9

Don't know my window manufacturer but windows installed over 15 years ago

Will also need pivot bar

Do you have the parts?

5 user uploaded images

6 Replies

Emily from SWISCO

Jul 18, 2023 9:35 am

Hello!

Our 15-228 pivot shoe looks similar to what you have here. I recommend you look over the specifications to ensure they match up with your old part. The 1/2" Series 160 or 3/8" Series 165 are the compatible coil springs. You'll have to measure the width of an old spring to determine the best match.

We'd be happy to ID the pivot bar but we will need to see a photo of it removed from the window sash.

Quick Learner from Toronto

Jul 18, 2023 10:21 pm

Hi Emily

Thank you for responding

I think series 160 is a compatible sash coil , mine is 1/2 inch width too

The shoe looks almost the same

I am searching for the plastic housing for the sash coil

Mine is double hung on each side of window housing 2 coils
On each side

Is there anything compatible that will fit my window?

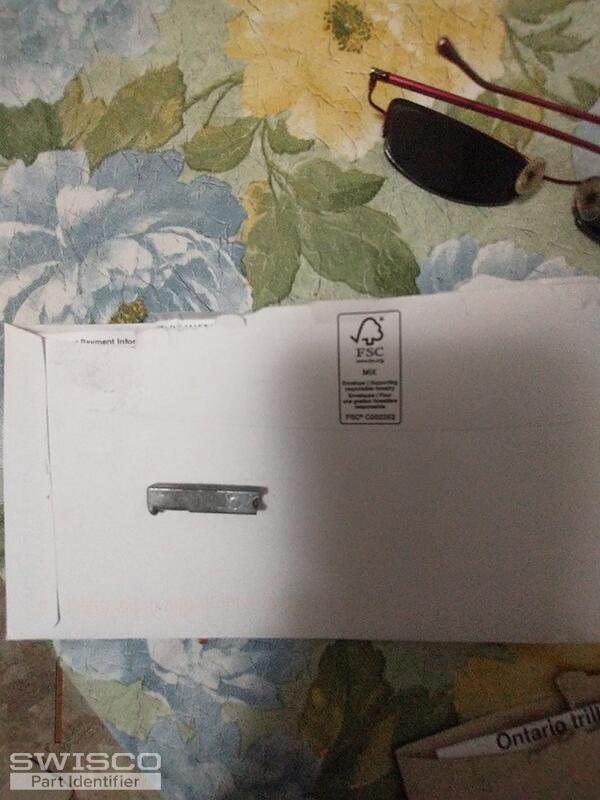

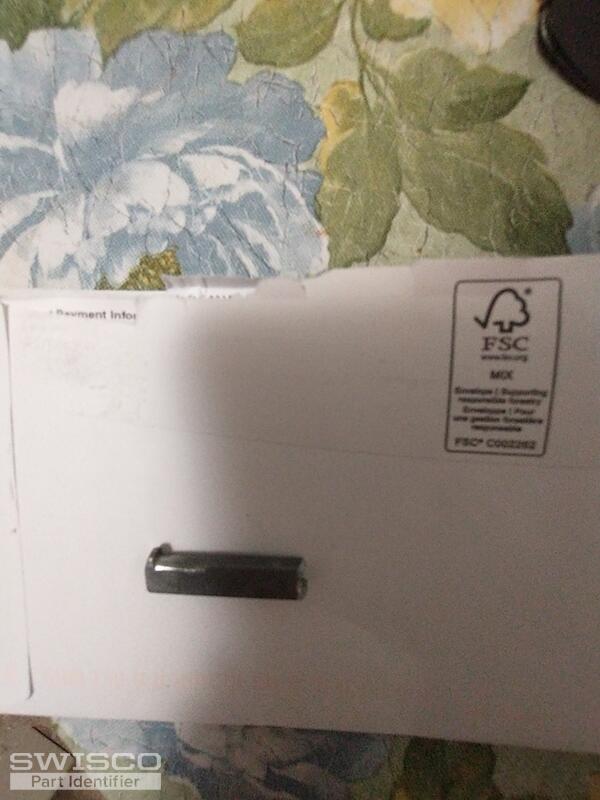

Photo of broken pivot bar attached

2 user uploaded images

Emily from SWISCO

Jul 19, 2023 7:55 am

If your old spring is 1/2" and is stamped with the number 9 then I recommend the 15-150D support and S160-9 9-pound coil spring. As for the pivot bar, would it be possible for us to see a photo of an undamaged version removed from the window sash? I'm afraid this one is too damaged to identify.

Quick Learner from Toronto

Jul 20, 2023 8:35 pm

Hi Emily

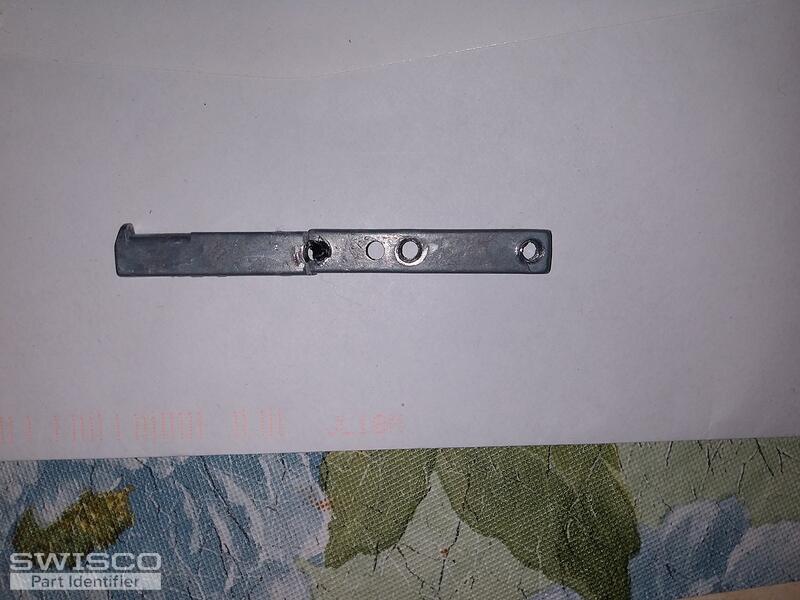

Here is a better photo of my existing broken pivot bar

Thanks Gabriella

2 user uploaded images

Emily from SWISCO

Jul 24, 2023 8:35 am

Thanks so much for getting that for me, Gabriella! Our 26-241 looks similar to your old pivot bar. Take a look at the specifications and see how they compare with yours.
