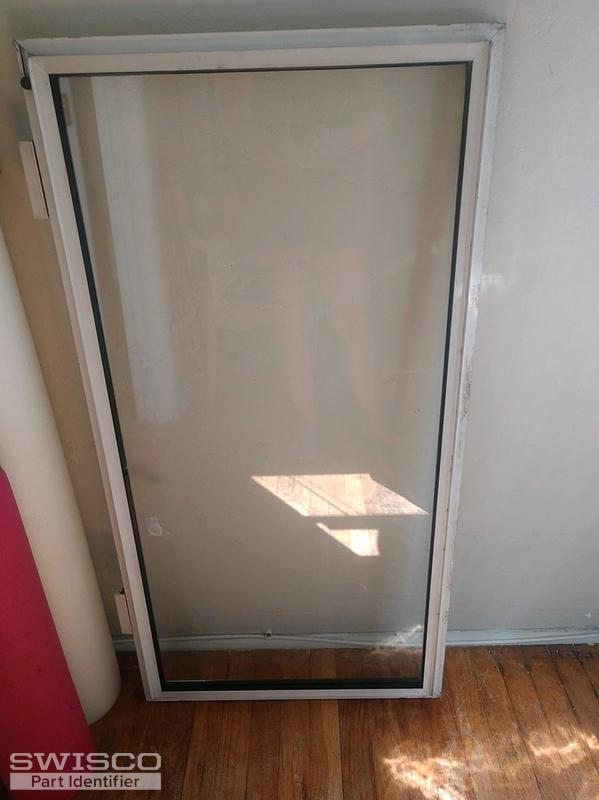

Sash of double hung white framed double panes window

Start a new Discussion

Landlord from San Diego

Sep 22, 2020 5:31 pm

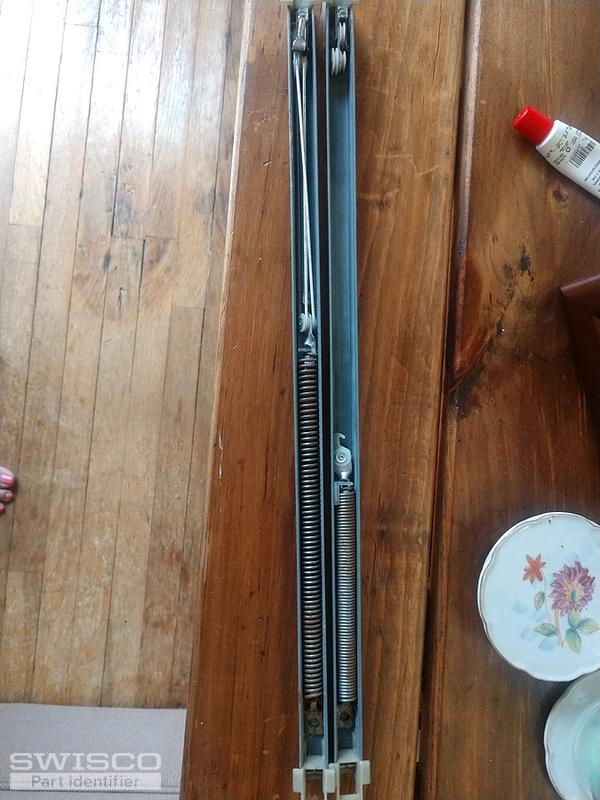

What else is needed?
Thanks

2 user uploaded images

4 Replies

Casey from SWISCO

Sep 28, 2020 12:34 pm

Hello,

We should be able to supply replacements for the balances in your photo but part of the balance is cut off. We'll need to see the entire balance and the stamp on the metal channel to compare to our selection. Thank you!

Landlord from San Diego

Sep 29, 2020 7:59 pm

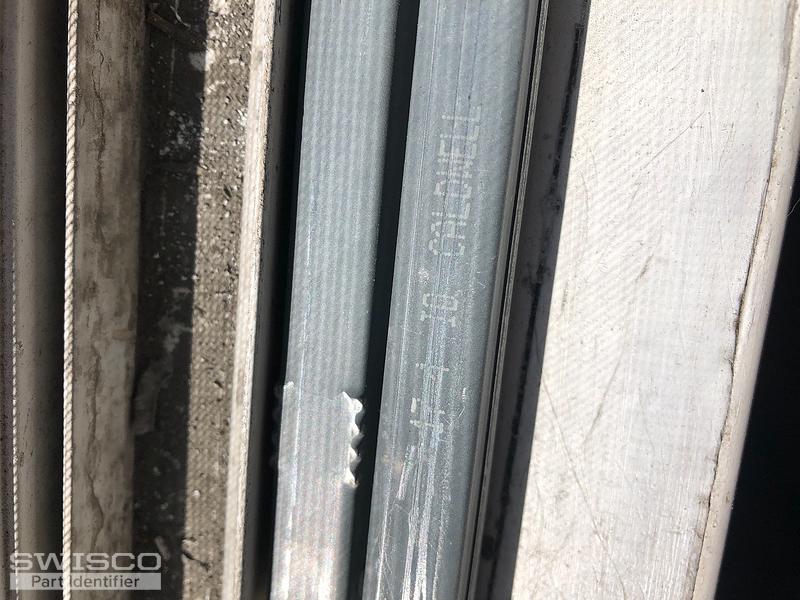

17 4 ID CALDWELL Stamped on metal part as seen in the attached photo.

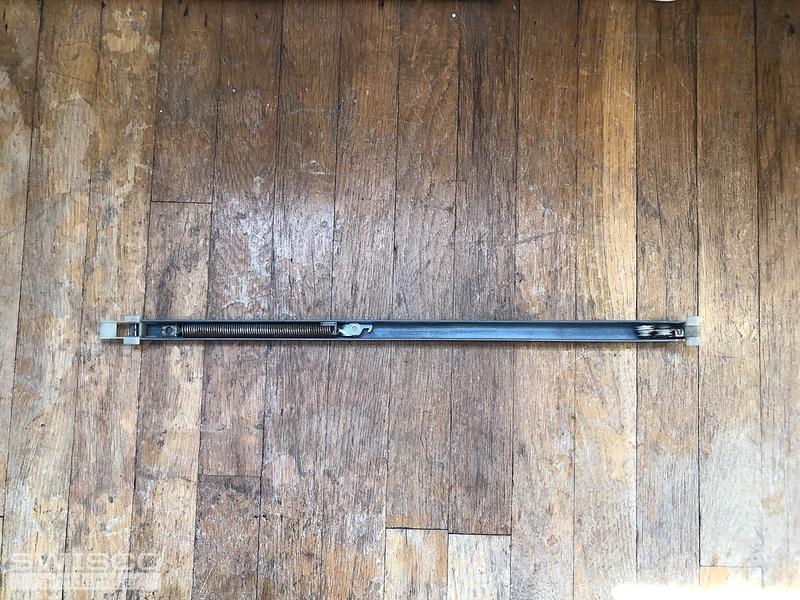

It measures 18" long or 19" including plastic

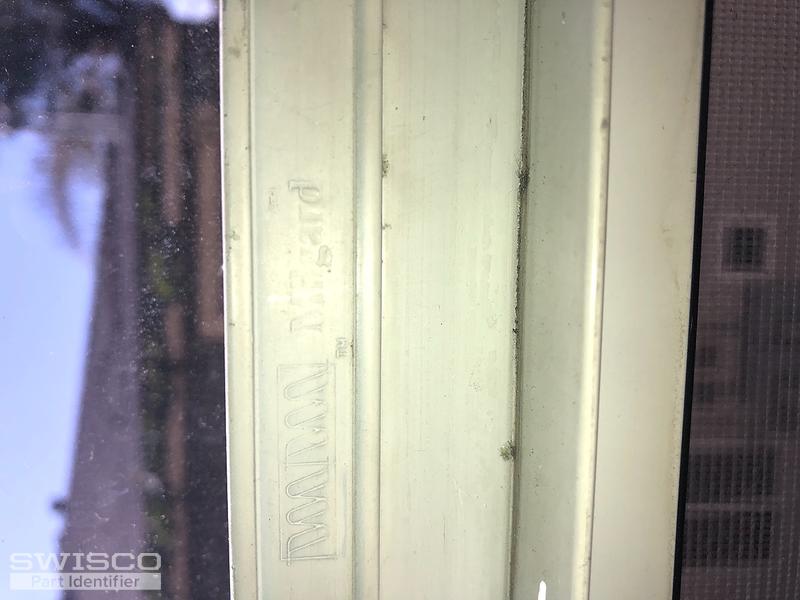

Millard brand window as seen in bleary photo

Thank you in advance, Mark

3 user uploaded images

Casey from SWISCO

Sep 30, 2020 8:15 am

With this combination of attachments, you could have either an S380-18 or S38518 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1740 spring strength options for your balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
