Sash part that holds window to the frame

A quick learner from Clinton new york says:
January 24, 2020
It holds window into frame
Thumbnail of the uploaded file named 1615B416-0427-4ADA-BEDF-C3C4D2FED95A.jpeg
Profile picture of Tom
Tom from SWISCO responded:
January 28, 2020

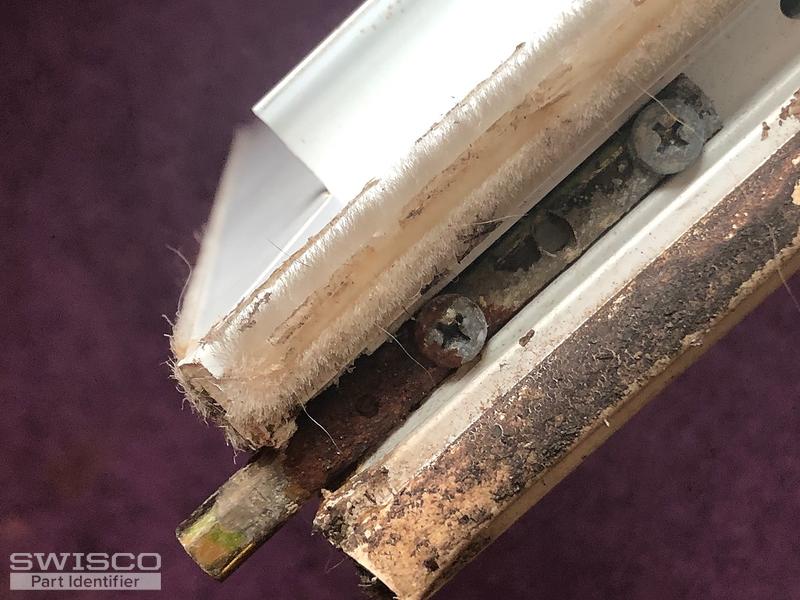

Hello! Looks like you're showing us a pivot bar. These install on the bottom two corners of the sash and insert into the pivot shoe, allowing the sash to tilt in for cleaning or replacement.

Yours in particular is very similar to our 26-089. It even has a similar pattern of three installation holes. I recommend looking over our dimensions just to be sure that everything matches up. If our dimensions differ from your measurements in any way, please let me know how and we'll do our best to find something better.

Alternate image for 26-089
Alternate image for 26-089
A quick learner from Clinton new york says:
January 28, 2020
That's it thank you so much
Pivot Bar, 3"
Pivot Bar, 3"
26-089
$1.15
