Sash parts

A quick learner says:
May 2, 2020
Think I know which ones to order, but rather the experts check
Thumbnail of the uploaded file named B6979734-3482-4EC3-BCD7-FF4D5337D614.jpeg
Thumbnail of the uploaded file named 06733EDD-AFFF-41D6-ABAD-084BAB5378D4.jpeg
Thumbnail of the uploaded file named 28C23C1A-0CAB-46A3-A1BC-9AF67AA8D4FF.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 5, 2020

Hello,

Take a look at our 15-177 pivot shoe and 26-226 pivot bar and carefully compare the dimensions to your original hardware. Thank you!
A handy person says:
May 5, 2020

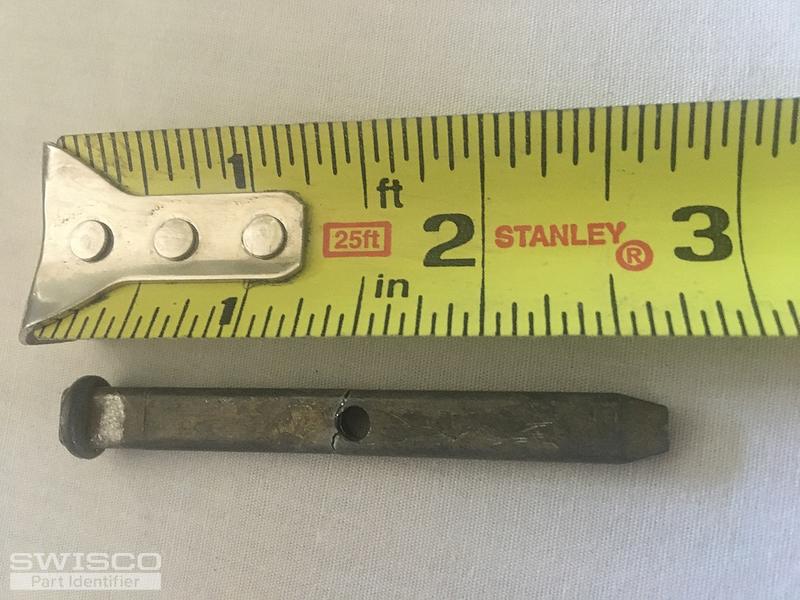

Shoe is the one I thought, will pivot bar work ? Note where hole is on tape measure
Thumbnail of the uploaded file named 3155777A-A31E-4E6C-A55C-06C89E55EDDC.jpeg
Profile picture of Casey
Casey from SWISCO responded:
May 6, 2020

Take a look at the diagram below. As long as the offset of your installation hole matches one of the dimensions below, you shouldn't have a problem and I believe the 1-3/8" offset may be a a match to yours. Confirm these measurements and please let us know if you need anything else.

343
A handy person says:
May 6, 2020
Thanks so much, working on all windows before I order. I see there's a piece available for the shoe, round metal that holds the pivot bar. Is there a video on how to change a broken one
Profile picture of Casey
Casey from SWISCO responded:
May 6, 2020

I assume you're talking about the metal cam, which is not sold separately for the 15-177 pivot shoe. I'll attach our shoe replacement video below.
