Sash retractor/support assembly

Handy Person from Emerald Isle NC

Apr 19, 2022 4:02 pm

These are windows installed by sears around 2011
Window label info:
Bar code
SR@0
078634310100001 WH A9

HO96 12/06/11
SS. sears bottom FS
SPD HWI 16 .313x25.500

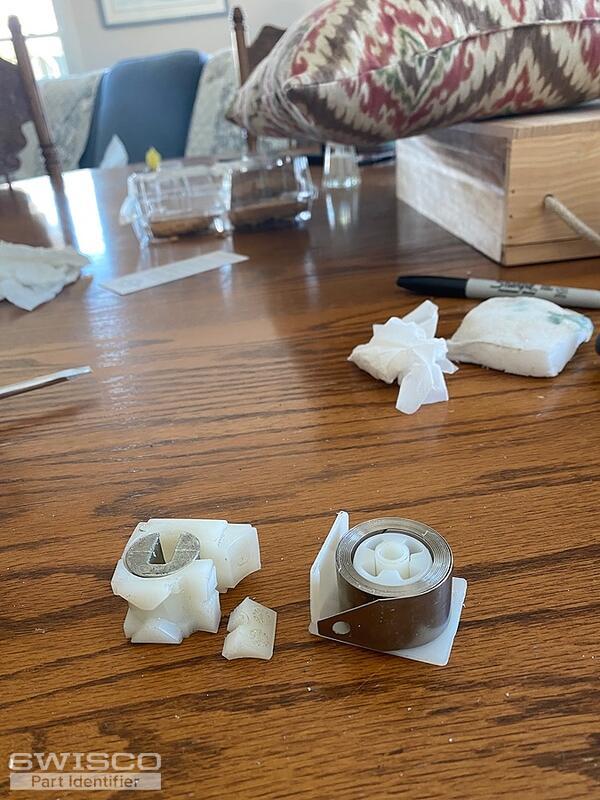

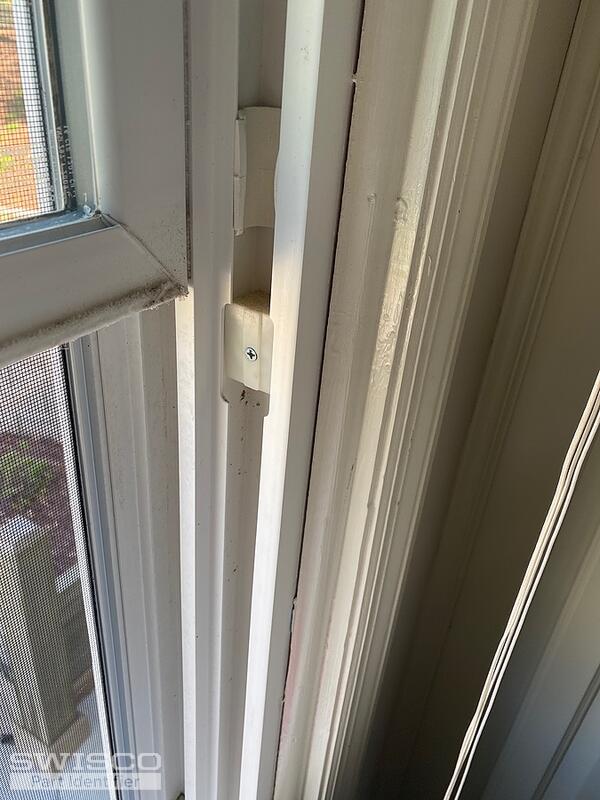

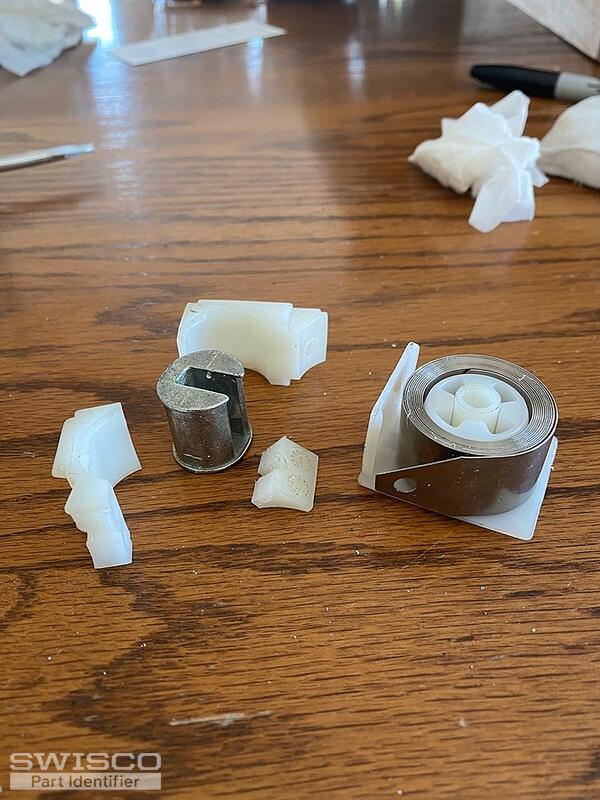

3 user uploaded images

4 Replies

Emily from SWISCO

Apr 21, 2022 12:12 pm

Hi there!

We don't have this exact coil balance assembly but you can replace it with the 15-259 pivot shoe which uses the Series 159 coil springs. See the video below that will demonstrate the entire replacement process and the other parts that are needed for this repair.

Handy Person from Emerald Isle NC

May 19, 2022 8:55 am

I have already been advised on what parts I need however I am trying to determine what size coil spring I need there is no stamp on my current spring. How do I choose?

1 user uploaded image

Emily from SWISCO

May 23, 2022 9:12 am

If there aren't any numbers on your coil springs, you'll need to weigh your sash on a scale and divide the weight by the number of coils on both sides of the window to determine the correct strength option.
