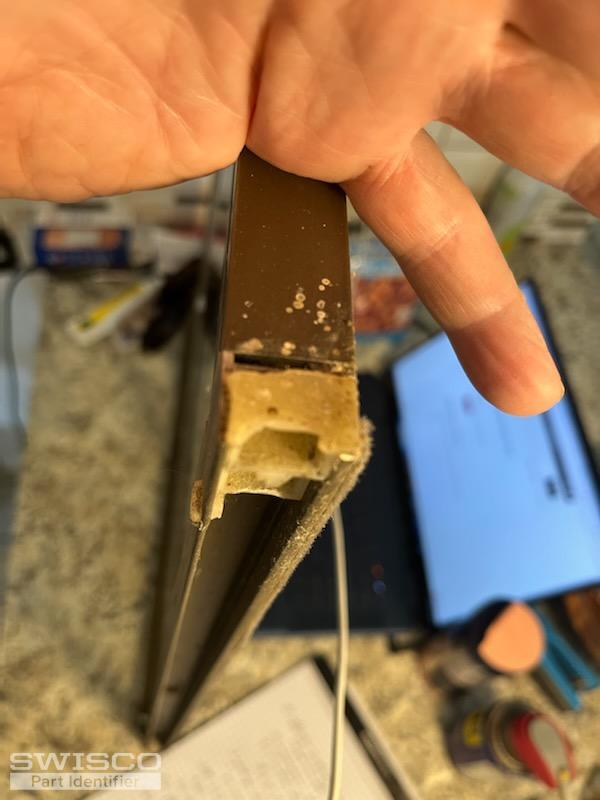

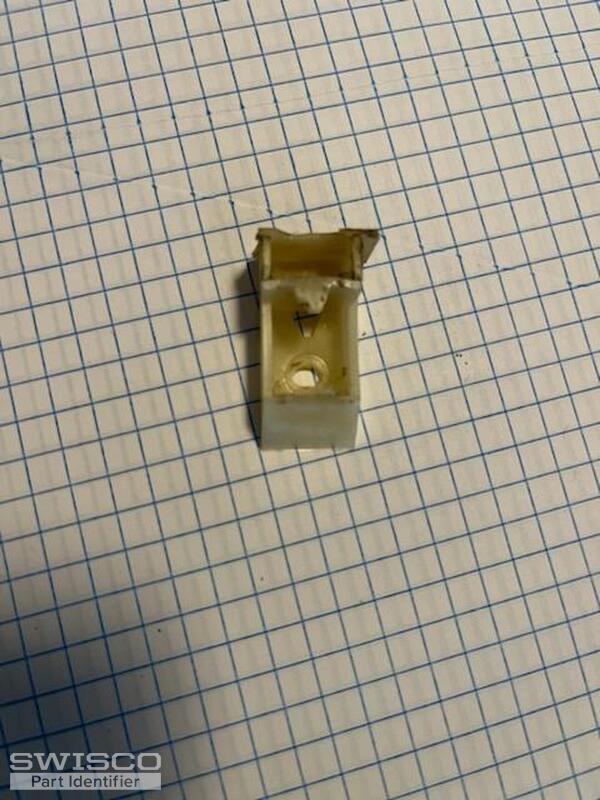

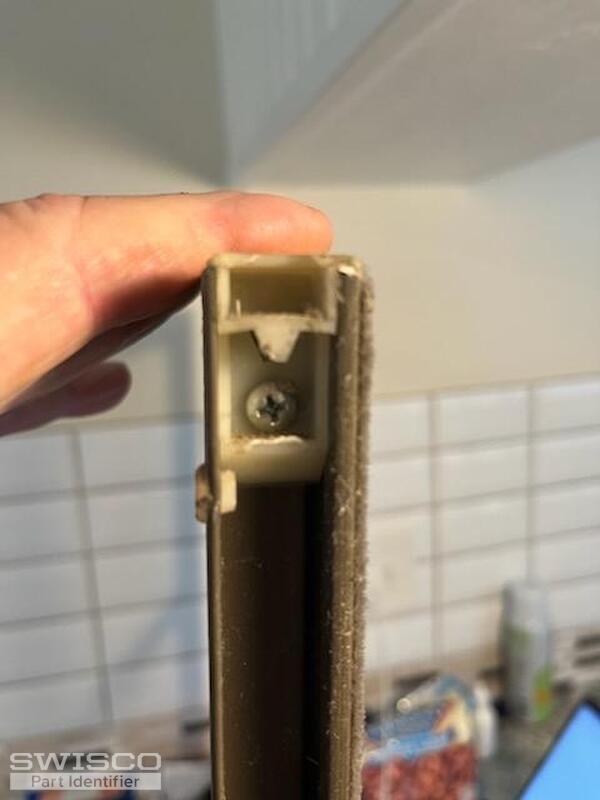

Sash top hook

Quick Learner from Sarasota Fl
Jun 16, 2023 12:59 pm
Hooks to block and tackle balancer
sash top hook 1 sash top hook 2 saah top hook 3
3 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
Jun 16, 2023 2:46 pm
SWISCO
EXPERT

Thanks for posting! The part you are searching for is what is referred to as a top sash guide. It hooks onto the balance top guide to make sure the balance is secure while traveling in the channel. Your top sash guide looks like it could be the 18-044. Carefully compare the dimensions of this part your existing hardware to confirm if this is the right replacement.

Detail of 18-044
Detail of 18-044

Dimensions for 18-044
Dimensions for 18-044

Quick Learner from Sarasota Fl
Jun 16, 2023 3:15 pm

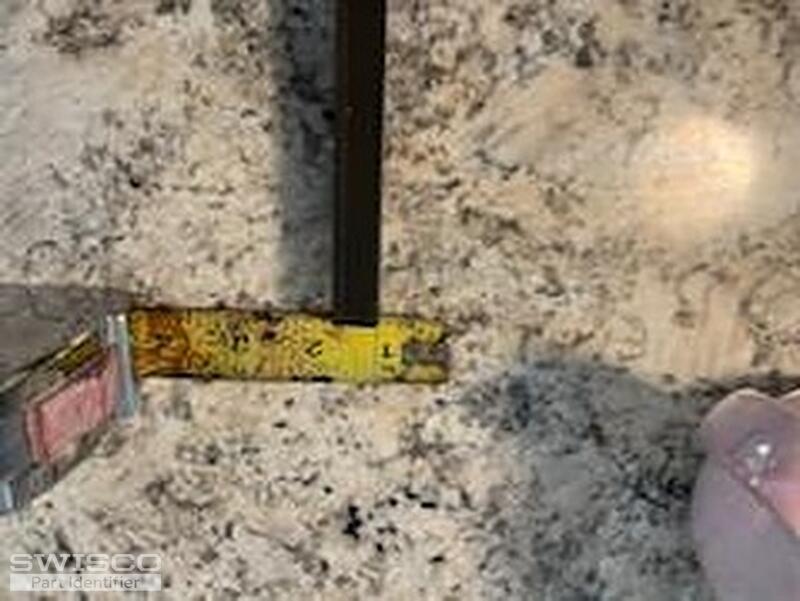

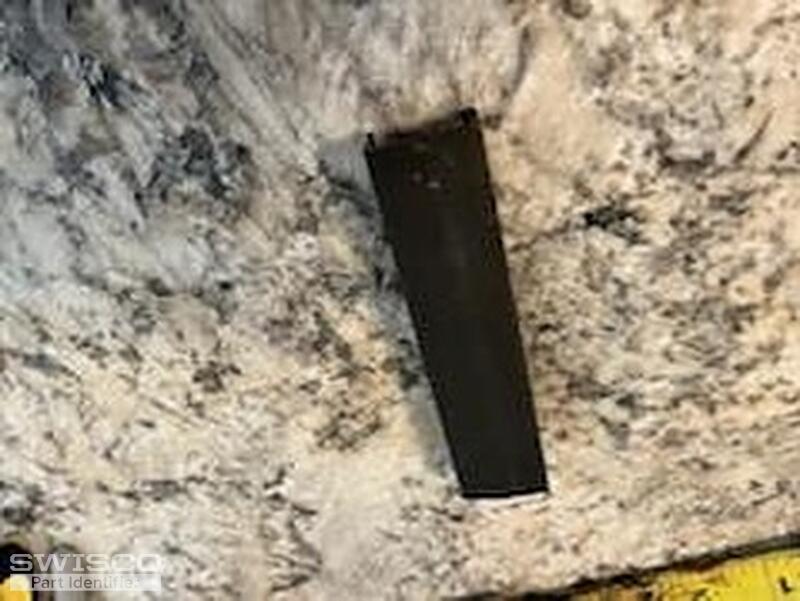

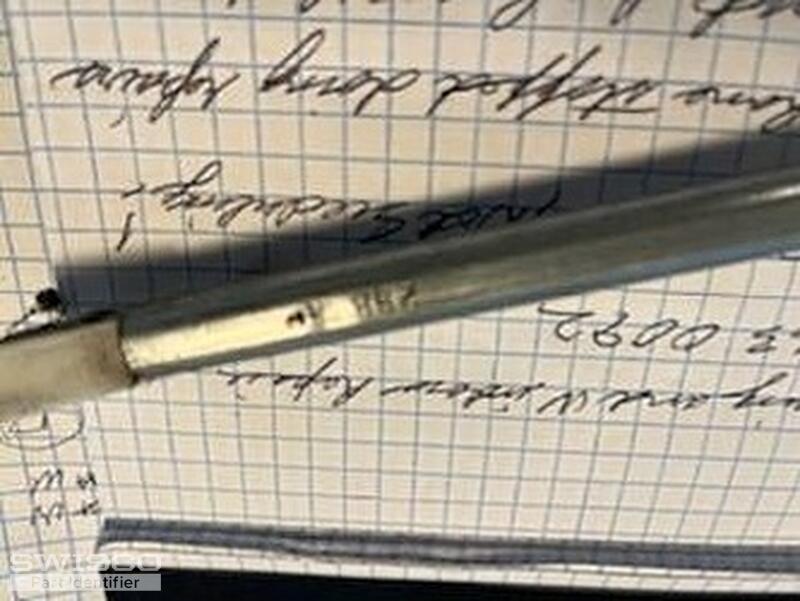

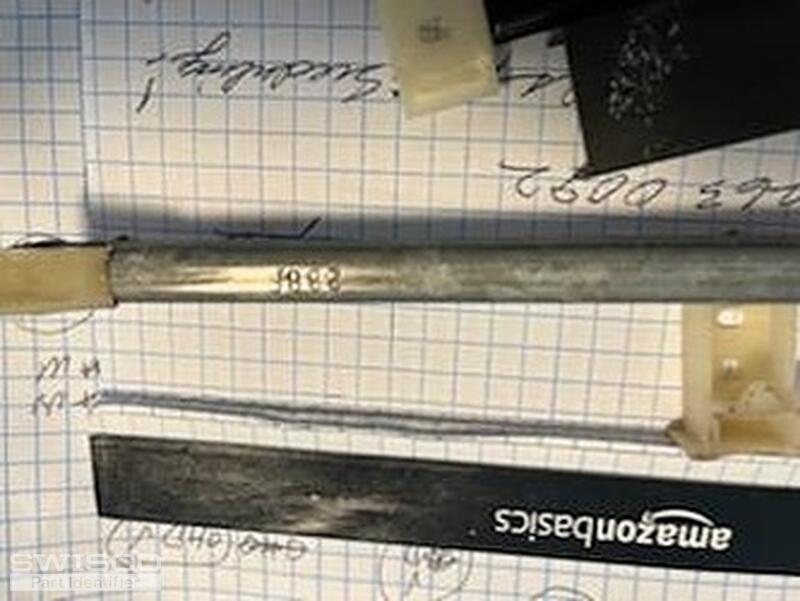

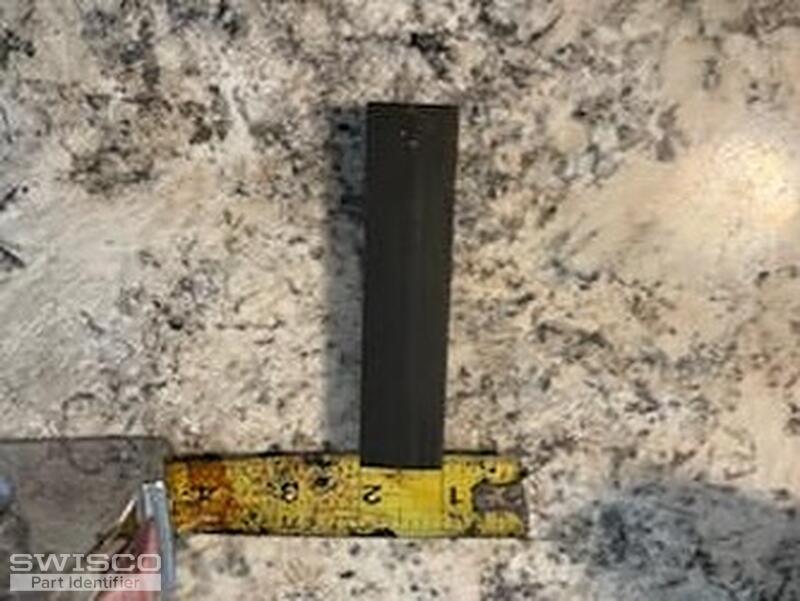

The top sash guides look good. I will take two dozen of those and also looking for sash stops and a couple of balancers. Please see photos. Looks like the balancers read 28B and 23BF
thumbnail thumbnail thumbnail thumbnail thumbnail
5 user uploaded images
Jasmine
Jasmine from SWISCO
Jun 20, 2023 9:44 am
SWISCO
EXPERT

Your balances appear to be the 3/8" width Series 800 channel balance. These balances have the 19-007 top and and the 15-018 bottom, wingless attachments. For the balance stamped with the 28B, you'll need the S800-29. For the balance marked 23BF, you'll need the S800-24, however, I would recommend double checking the sash weight to determine the stamp. The 23B stamp is made to carry windows weighing 8 to 13lbs.

I would recommend double checking the width of your balances and the attachments to be sure that this is the balance series you'll need.

We do not carry a replacement for the sash stop you have here, unfortunately. The only stops we carry are parts 55-043 and 55-110, however, I do not believe they would work to replace your existing stops.

Let me know if you have any questions.
