Searching for 12286 -l

Question

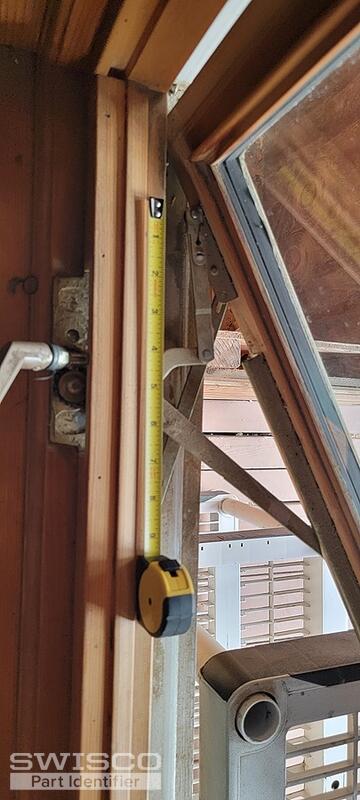

Do you have a replacement operator for this window? The tag says C.C.M.C.12286-L Casement.
Thanks
Mark

Bob · Accepted Answer

Hi Mark. I believe you have either the 39-032 and its opposite-handed counterpart, the 39-031; or, the 39-156 and the 39-155. The only difference between these two sets of operators is the length of the link arm. See the diagrams below for reference. Compare both with your old hardware to confirm what you need.

Dimensions for 39-032
