Searching for 2620 BSI NH

A quick learner says:
June 12, 2021

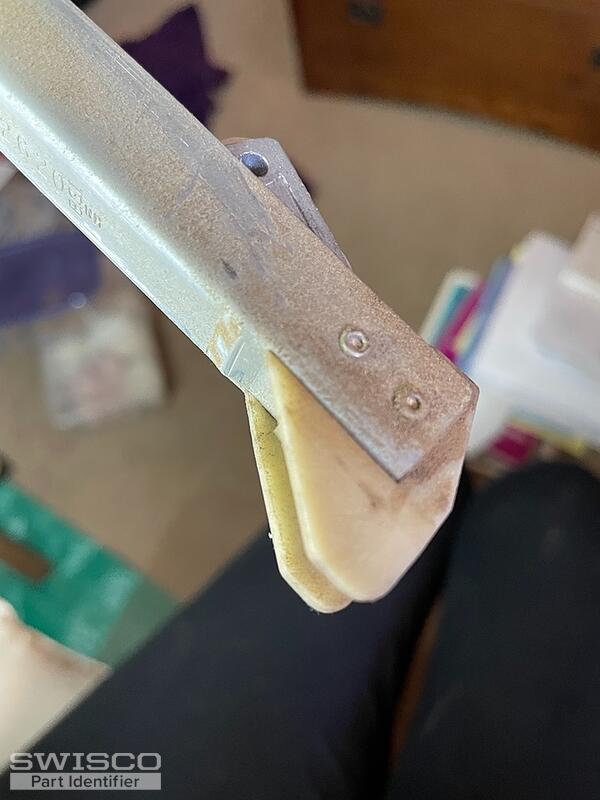

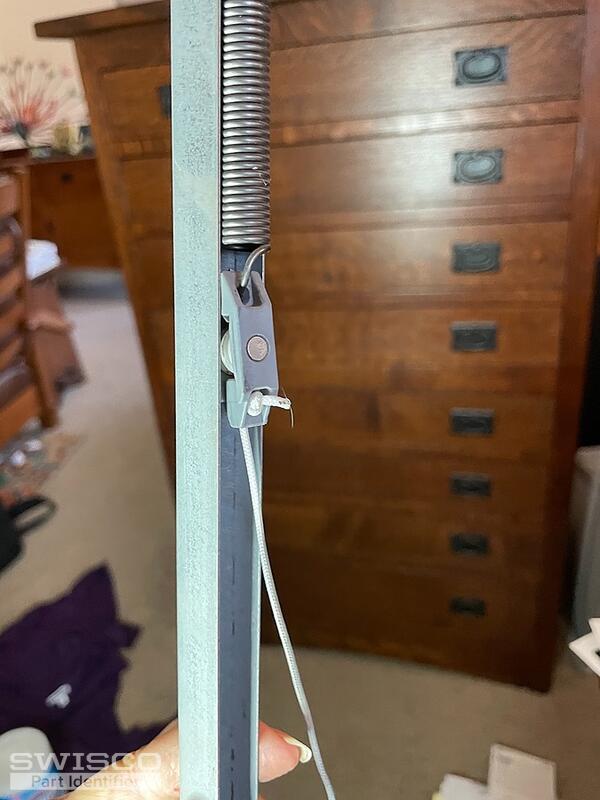

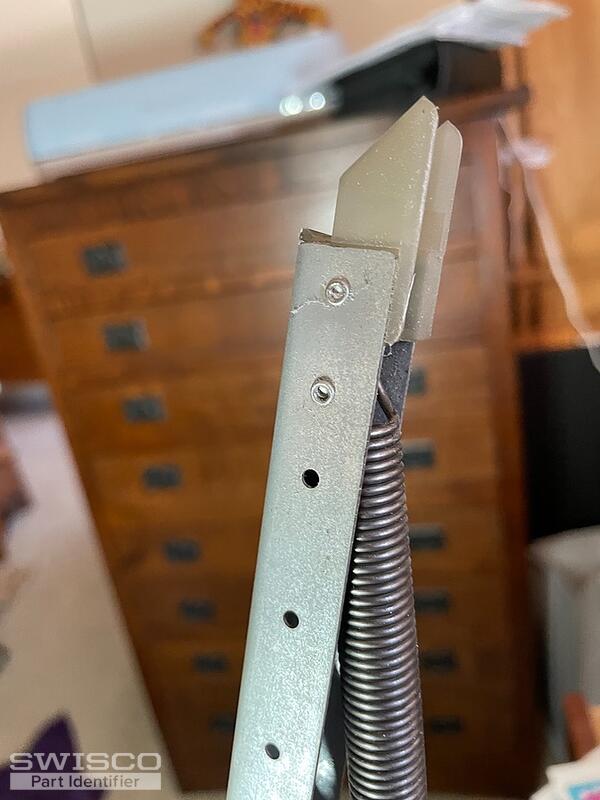

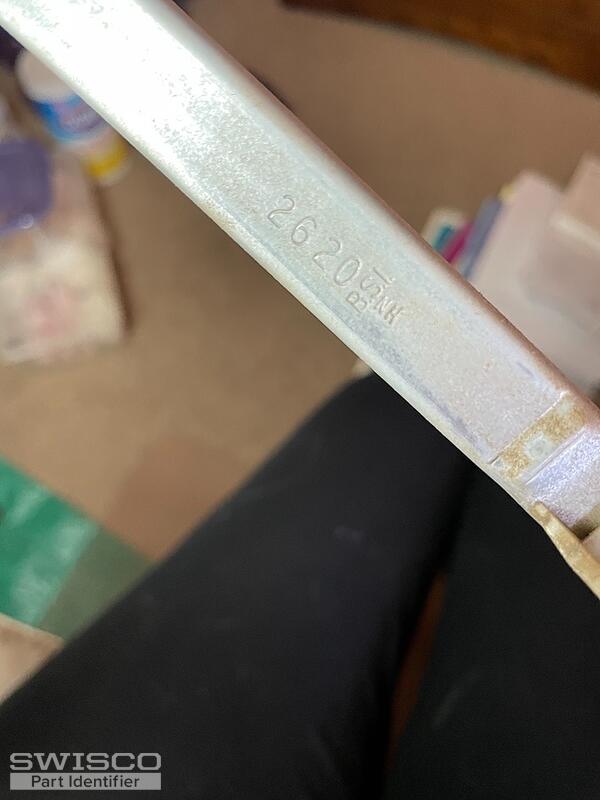

Here are photos of the window channel balance we need. THANK YOU!
Thumbnail of the uploaded file named D7404CCA-2869-433D-B7C1-82DE7B5FFE6C.jpeg
Thumbnail of the uploaded file named CCA299A8-924A-49BD-8F5E-8D6926C93DEA.jpeg
Thumbnail of the uploaded file named 82D75489-A412-43D9-B4F5-443BCB77B709.jpeg
Thumbnail of the uploaded file named B41364B3-639F-4363-A184-AE92A99BDCEB.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 16, 2021

This appears to be either an S351-27 or S390-27. Just make sure the top fitting lacks wings, or 'side tabs' (basically our 19-005 vs our 19-002). The only difference between the Series 351 and Series 390 is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the diagram below. In either case, for a new stamp option choose 2620.


S390vS351
19-002 : Channel Balance Top Guide
Channel Balance Top Guide
19-002
$0.58
VIEW >
19-005 : Channel Balance Top, Winged
Channel Balance Top, Winged
19-005
$0.65
VIEW >
S351-27 : 27
27" Series 351 Channel Balance
S351-27
$9.75
VIEW >
S390-27 : 27
27" Series 390 Channel Balance
S390-27
$9.55
VIEW >
