Searching for 27HD P/NSI

A quick learner says:
March 6, 2021
Do you have these items if so I would need 12 of them including the swivel piece.
I have 6 windows, each one needs two track bars and two swivel pieces.

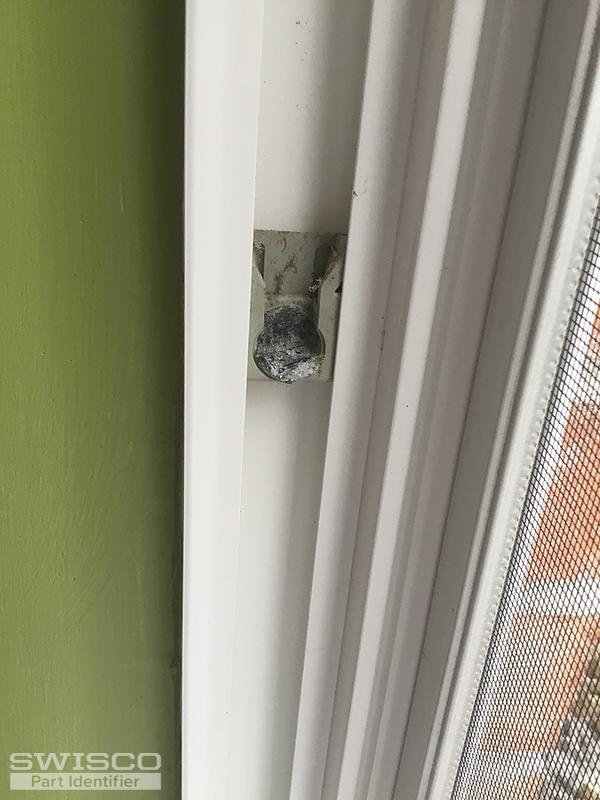

I have added photos because I have no idea what they are called. The bars are 28 inches long
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
March 8, 2021

Looks like you need a new type of balance. Before I recommend anything, though, I'd like you to flip the balance over and show me a clear picture of the front end. The stamp you gave, 27HD, is only found on ribbed metal channels, but your metal channel doesn't looked ribbed to me. I want to be 100% sure.

Can you also tell me the exact weight of the sash, down to the ounce?
A quick learner says:
March 9, 2021
It's not ribbed

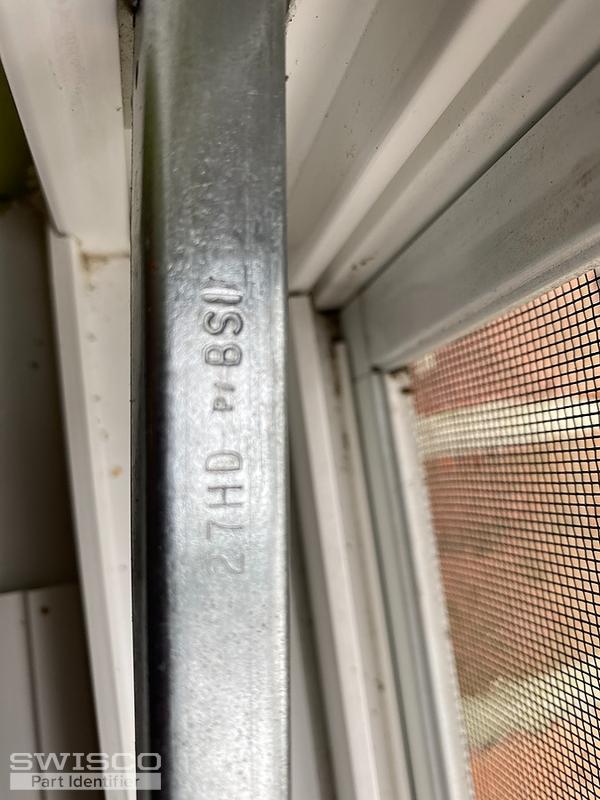

Thumbnail of the uploaded file named 16F8851A-7DF7-4329-BC84-4F03CA52C592.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 9, 2021

Thanks for confirming. In that case, we definitely need that sash weight. Please be as precise as possible; estimates won't do in this situation.
A quick learner says:
March 9, 2021
Not sure what you mean by the sash there is another stamp next to the 27HD it is P/BSI
Profile picture of Tom
Tom from SWISCO responded:
March 9, 2021

The sash is the glass panel that the balances are actually supporting. Knowing the stamp isn't helpful to me at this point; in order to help, I need you to give me the exact weight of the sash. You can do this by placing it on a scale. Any common bathroom scale will be fine.
A quick learner says:
March 10, 2021
It is 18.1 lbs
Profile picture of Tom
Tom from SWISCO responded:
March 10, 2021

Perfect, thank you. So what we'll be making you is our S770-28 channel balance, except we're swapping the bottom clip out for our 62-105 hook. We'll also be using the 28C stamp, which carries  18 through 23 pounds.

I will email you a purchase link and price quote right now for 12 of these. Let me know if you had any questions.
A quick learner says:
March 10, 2021
No Q. Thank you
