Replacing all hardware on a big bay window

A quick learner says:
June 30, 2019
Please help! I bought a house and need to replace the hardware on a big bay window. It has two left casements, picture in the middle, and two right casements. The hinges, operators, tracks, and locking are all damaged. Either cracked, rusted, or deteriorated. Please take a look at the pictures. Certain pieces say "Truth" "30744" "31133" "30473"
Thumbnail of the uploaded file named 20190630_154013.jpg
Thumbnail of the uploaded file named 20190630_153537.jpg
Thumbnail of the uploaded file named 20190630_153609.jpg

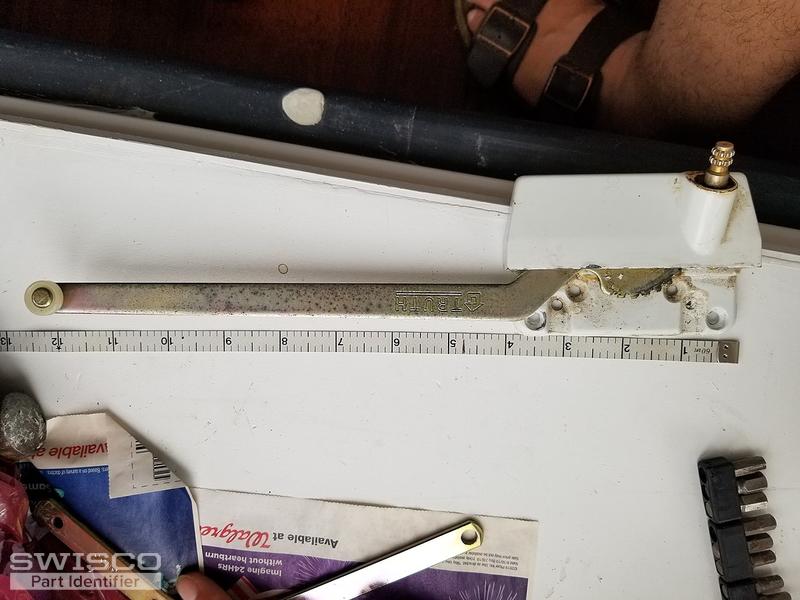

Thumbnail of the uploaded file named 20190630_153657.jpg

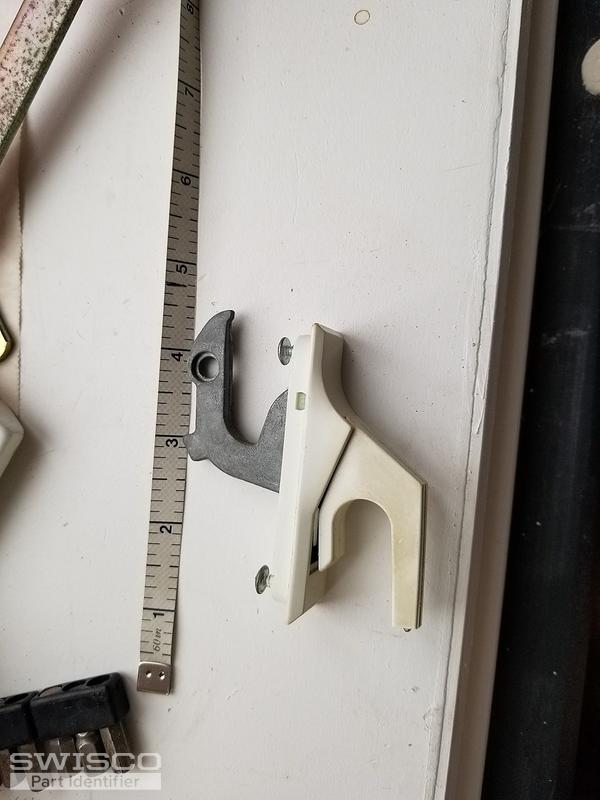

Thumbnail of the uploaded file named 20190630_153718.jpg
A quick learner from 11040 says:
June 30, 2019
Here are some additional pictures

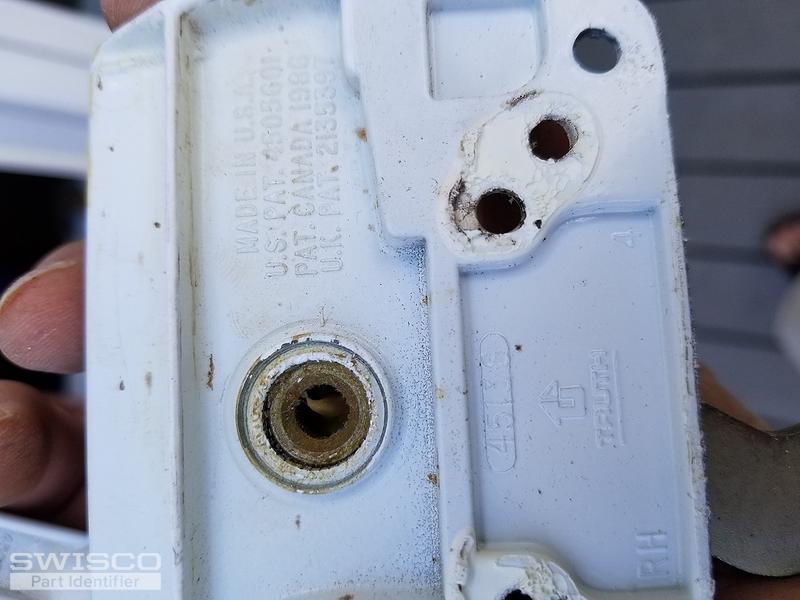

Thumbnail of the uploaded file named 20190630_135252.jpg

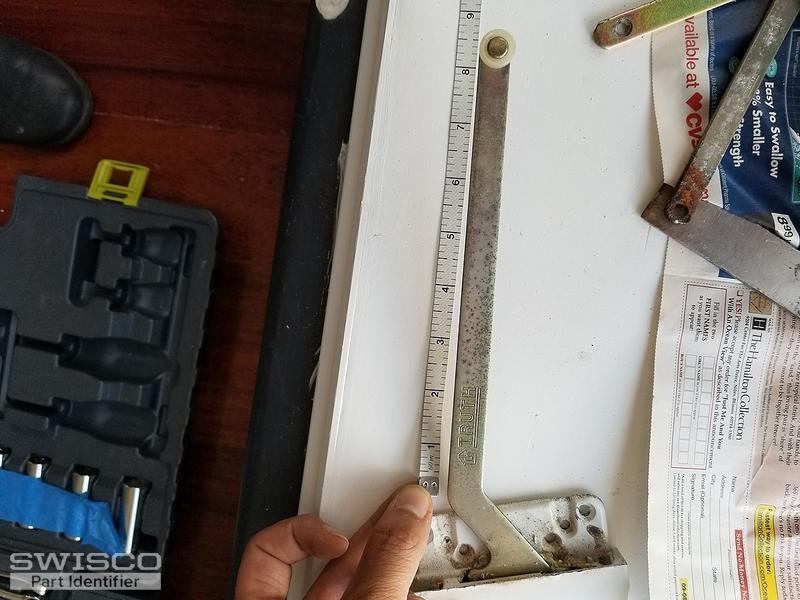

Thumbnail of the uploaded file named 20190630_135421.jpg

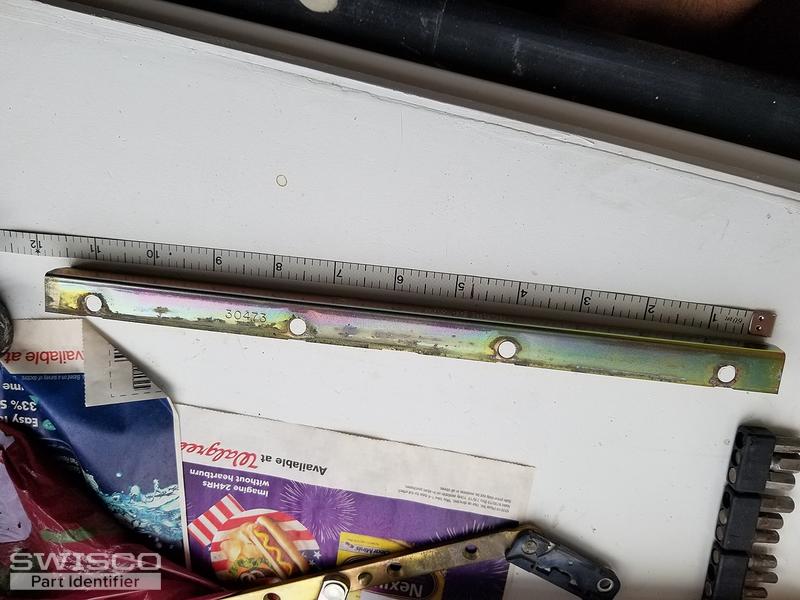

Thumbnail of the uploaded file named 20190630_153518.jpg

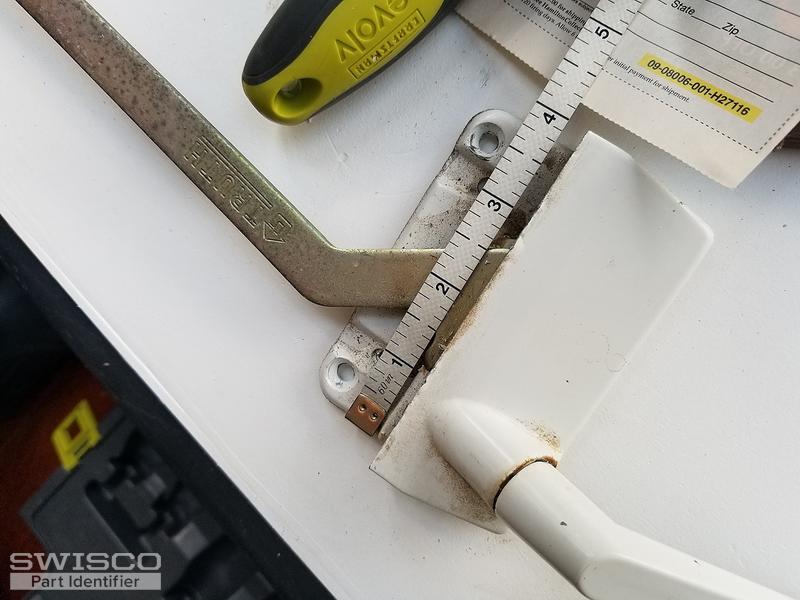

Thumbnail of the uploaded file named 20190630_135357.jpg

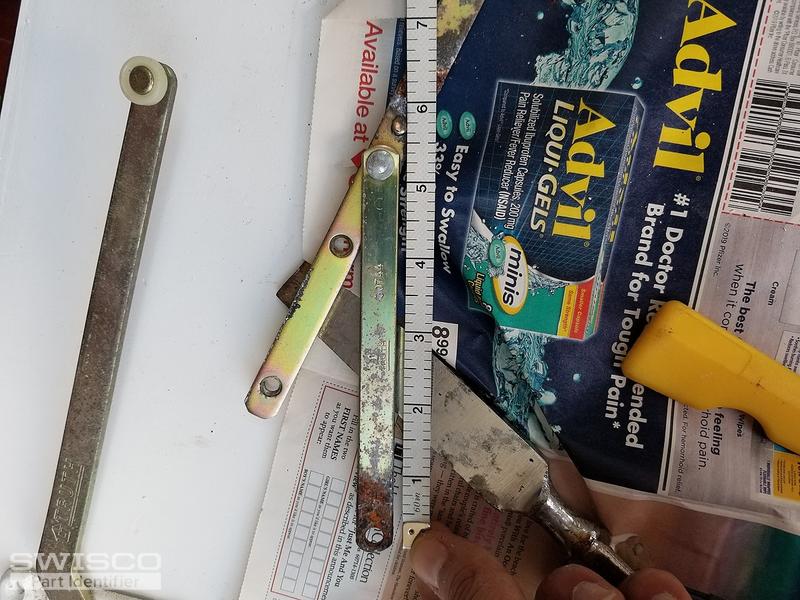

Thumbnail of the uploaded file named 20190630_135507.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 8, 2019

Hello! Thank you for the great photos, these are a huge help. We can definitely supply replacement options for each part you have pictured here. Going in the same order as your photos, see our 36-048 hinge, 39-028E and 39-027E casement window operators, 38-036 casement window lock, and 39-533 operator track. Look these over and let me know what you think!
Rear Mount Casement Lock, 2-1/2"
Rear Mount Casement Lock, 2-1/2"
38-036
$13.25
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
11-3/8" Casement Operator Track, 3 Hole
11-3/8" Casement Operator Track, 3 Hole
39-533
$2.95
