Searching for 51027872243514 closet door parts

Quick Learner
Nov 7, 2023 5:37 pm
Also need the parts for the track

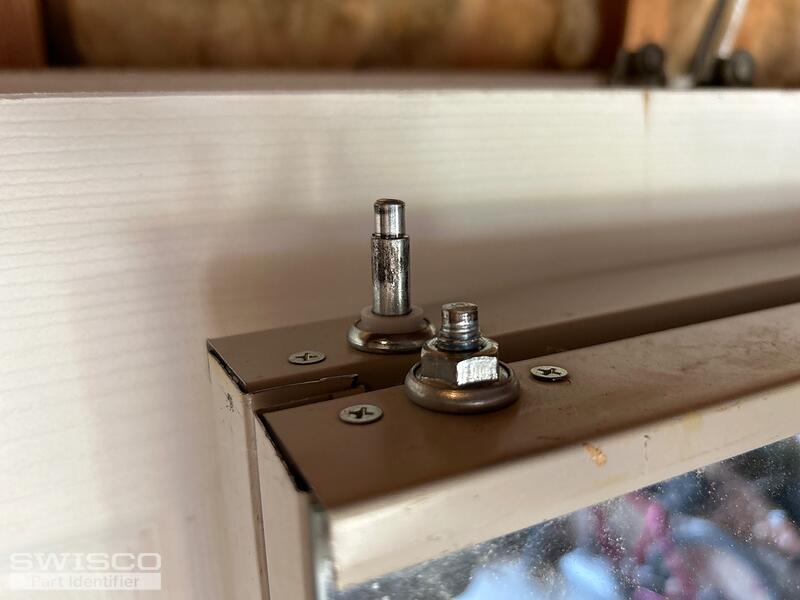

image image
2 user uploaded images
7 Replies
Emily
Emily from SWISCO
Nov 8, 2023 10:48 am
SWISCO
EXPERT

Hello there!

Thanks for reaching out to us. I can't identify what you have here just yet. Could you remove these parts from the door and show us some photos? We will also need to see the other parts you're looking to replace for the track.

Quick Learner from Kansas city
Nov 14, 2023 12:02 pm

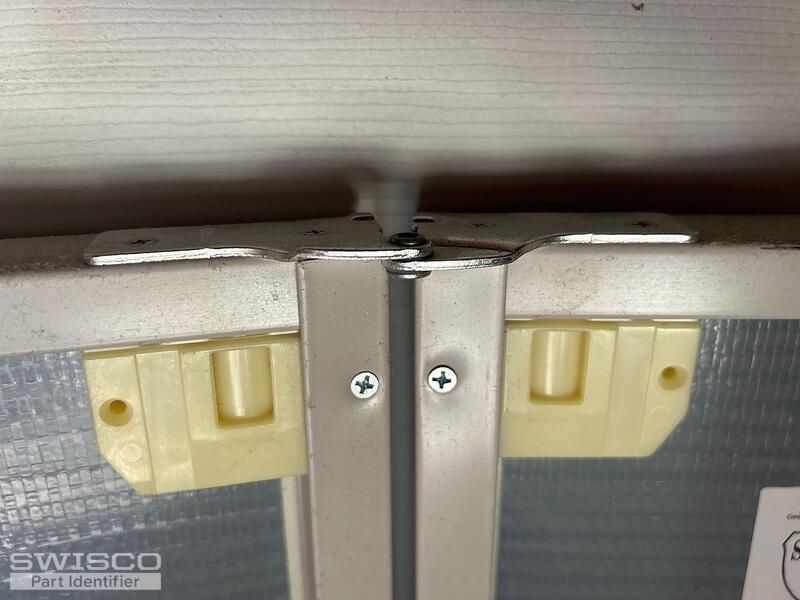

image image image
3 user uploaded images
Emily
Emily from SWISCO
Nov 15, 2023 8:20 am
SWISCO
EXPERT

Thank you for the additional photos! I recommend you look at the 23-407 corner block, the 23-113 bottom pivot, and the 23-112 top pivot. Please review the specifications and see how they compare with your old hardware.

Quick Learner from Kansas city
Nov 15, 2023 8:56 am
Yes, these look to be right. I need the roller that goes on the inside spring loaded tops, a 48" top track, the top track adjustment pieces that hold the outside spring loaded top pivot and the bottom bracket that holds the adjustable bottom door pivot. There may also be a spring device that receives both inside spring loaded pins for a soft closure. Thanks for your help.
Emily
Emily from SWISCO
Nov 16, 2023 9:43 am
SWISCO
EXPERT

The spring-loaded top pin with the nylon roller is the 23-114 which may be the part you need. You'll want to compare the specifications to confirm. As for the other parts described, I would need to see photos of the originals in order to narrow down your options.

Quick Learner from Kansas city
Nov 18, 2023 4:05 pm
What is the part number for the 48" upper track and bottom pivot wall bracket please.
Paul
Paul from SWISCO
Nov 20, 2023 1:40 pm
SWISCO
EXPERT

We sell the 23-510 track that comes with the pivot brackets, but you will need one 23-164 snugger as well.
