Quick Learner

Jun 10, 2023 5:18 pm

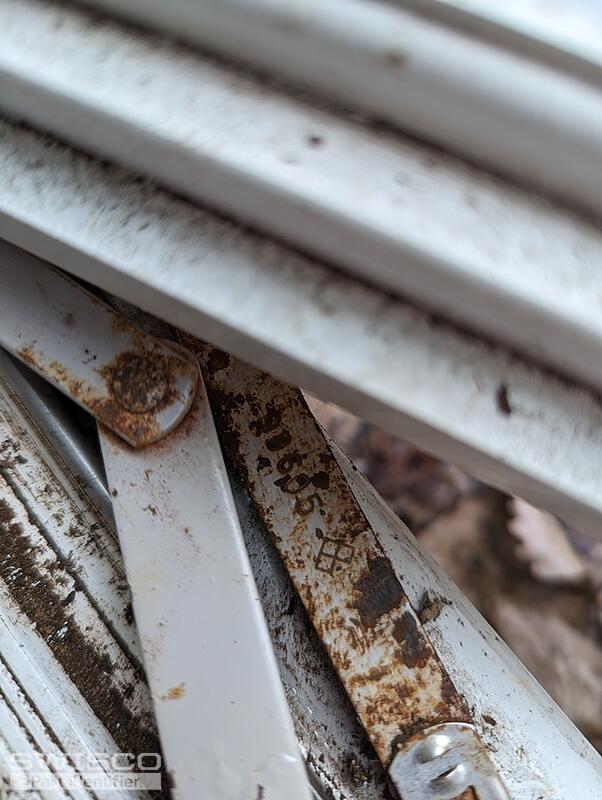

I need a replacement for this truth casement arm. It seems to have a 5 digit code on it but I'm very unsure of the first 2 numbers. They might be 91, but they're quite rusty and hard to make out. The last 3 numbers appear to be 605

4 user uploaded images

4 Replies

Bob from SWISCO

Jun 11, 2023 1:15 pm

Hello there. It looks like you need new casement hinges. I believe our 36-004-10 10" Hinge Set is likely what you need. Review the dimensions below to confirm. Let me know if anything differs.

DImensions for 36-004-10

Quick Learner from Minnesota

Jun 13, 2023 12:10 am

The crank is popping and not closing properly as well. Is there a crank that goes with that, or do you need more info?

Bob from SWISCO

Jun 13, 2023 9:26 am

The 36-004-10 is compatible with a ton of different operators, so there isn't any one pairing. That said, looking at your photos, the design of your original operators closely resembles our 39-316. This may be what you want but you should once again review our dimensions, just in case.

Alternate image for 39-316
