Searching for FCSHWT29

A quick learner says:
November 9, 2020
I need the weight balance hardware foe 12 of my windows. This is one of the smaller ones.
Thumbnail of the uploaded file named 824575EC-165A-4F45-9305-53663F1D0778.jpeg
Thumbnail of the uploaded file named 2DD25DE7-095A-4B6A-817A-6CAB29C9E76B.jpeg
Profile picture of Bob
Bob from SWISCO responded:
November 12, 2020

This is a Coil Balance system. We can help, but we need to see it out of the window, along with the pivot shoe the assembly connects to, to identify what you need. From there I'll do my best to narrow this down for you.
A quick learner from Martinsburg , Wv 25403 says:
November 12, 2020

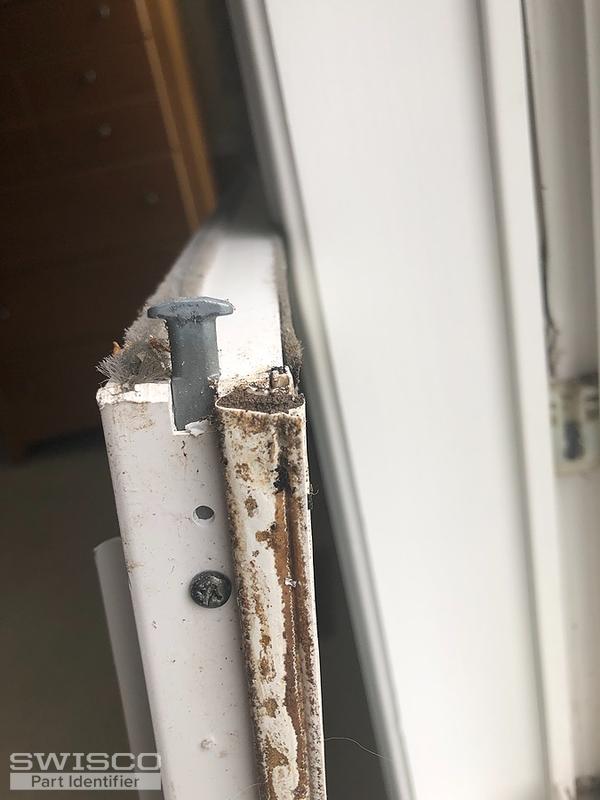

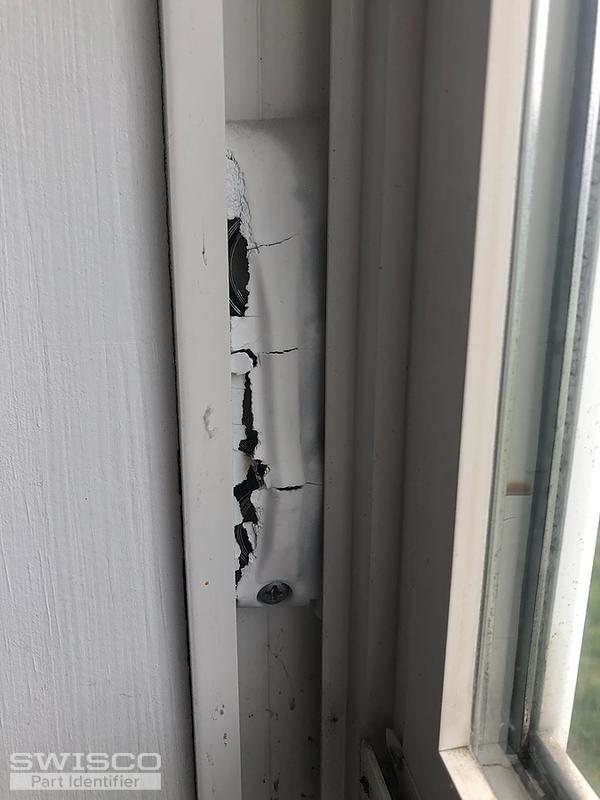

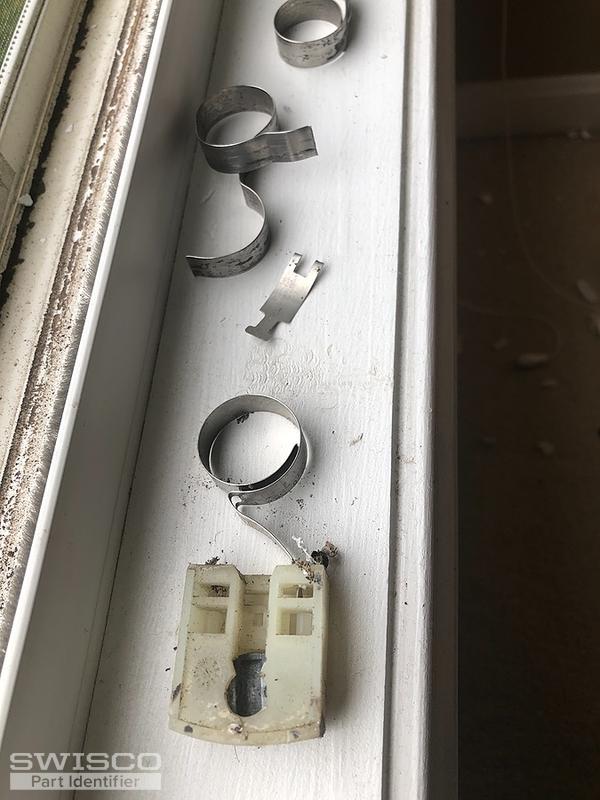

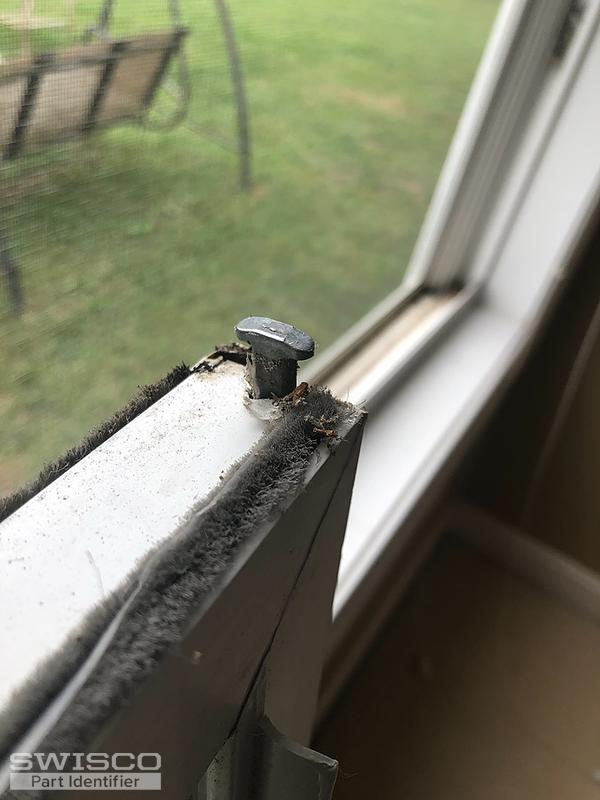

Ok, I took it out and have attached new photos
Thumbnail of the uploaded file named BE1605BE-62C0-4CD8-907E-933680F5D933.jpeg
Thumbnail of the uploaded file named 34629A0F-BA4D-42DA-BB29-A57F45A203D2.jpeg
Thumbnail of the uploaded file named CF283C30-CE0A-4DD9-AE0B-DEB18EC63071.jpeg
Thumbnail of the uploaded file named 86D6A91D-985B-4EB1-B0BE-C56FCA2433EB.jpeg
Thumbnail of the uploaded file named E170A059-5FF4-4420-8AD1-4A069C8D2954.jpeg
Profile picture of Bob
Bob from SWISCO responded:
November 12, 2020

Perfect, thanks. The shoe looks like our 15-199, which uses either our 1/2" thick Series 160 Coil Balances, or the 3/8" thick Series 165 springs. Compare the thickness of both with your old springs to see which matches best. Let me know if you have further questions.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
3" Pivot Bar
3" Pivot Bar
26-378
$2.10
