Searching for Patriot 2100 series parts

Question

I have 13 windows that I need this part for from Patriot 2100 series windows from 2008. The numbers on the windows is 3062 104215.005.000.

The id for the specific windows are:

20R8072U1-AC01,

20R8072U1-AC03

20R8072U1-AB13

20R8072U1-AB14

20R8072U1-AB15

20R8072U1-AB16

20R8072U1-AB17

107334.007.000

20R8081U1-AA12

20R8081U1-AA13

103875.003.000

21R80717U1-AH06

21R80717U1-AH08

21R80717U1-AH04

21R80717U1-AH02

I need one for the right and left side of each window. My name isScott Warner.

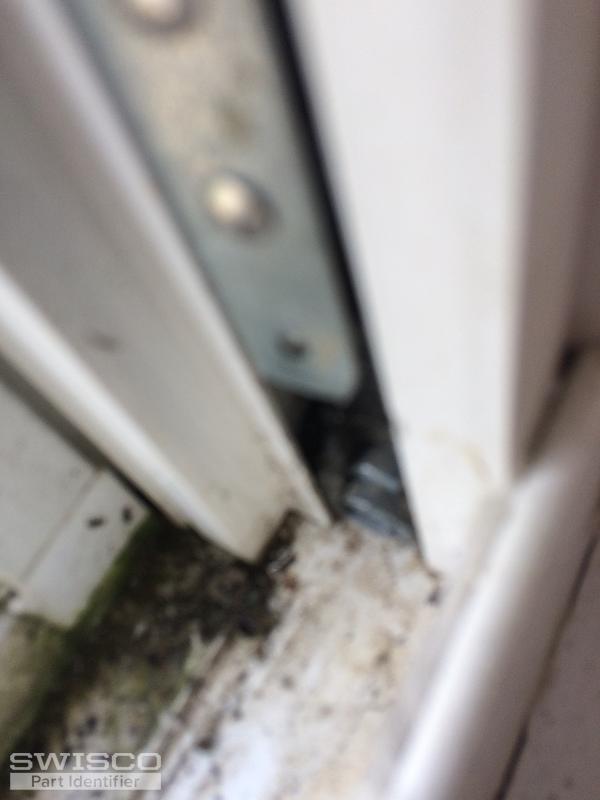

The dimensions are at the widest part at the bottom is 1", it is 1 5|8" in height and 1/2" in depth. It had a green puck. Does one fit for both the right and left side or there a separate one for each side? Would your 15-194? Your recommendation? Also what is the part number for the jamb spreader? This is a Ryan home built in 2008.

Tom · Accepted Answer

Thanks for contacting us. This shoe looks like our 15-194 at first glance, but this will not fit on your balance. Your shoe has a deep groove in the stem, which indicates that the balance channel itself will have a similar groove. This is not something we can replace.

Instead, you'll need an all new Series 795 channel balance. That's the only replacement option we can offer for this hardware. The Series 795 comes with a larger shoe by default, as well, so you'll have to purchase the 15-194 separately and swap the shoes out when you receive the hardware. We have a video on how this is done. It's very easy.

You also say you need jamb spreaders, but I don't think you want to use jamb spreaders for this window. It shouldn't be necessary. The balance simply tilts in and then you can twist it out.
