Searching for Pivot shoe and spring for F0678 sash

Question

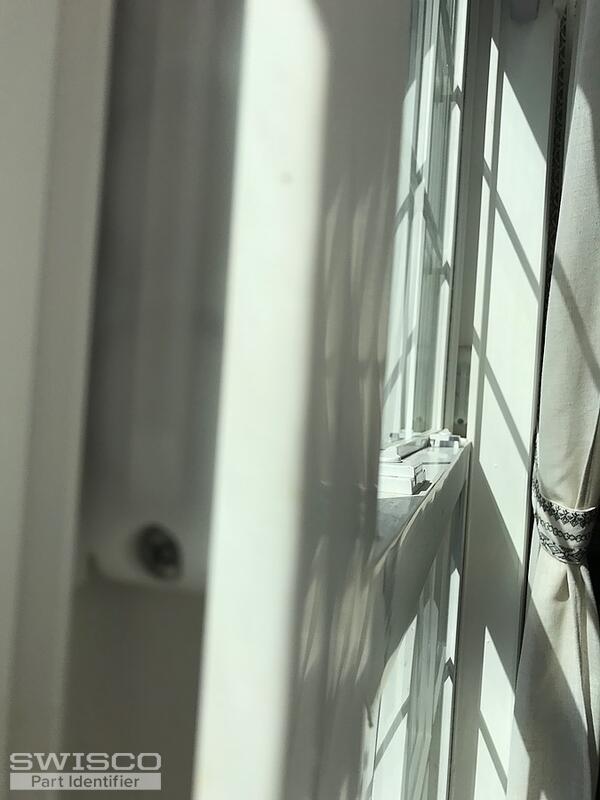

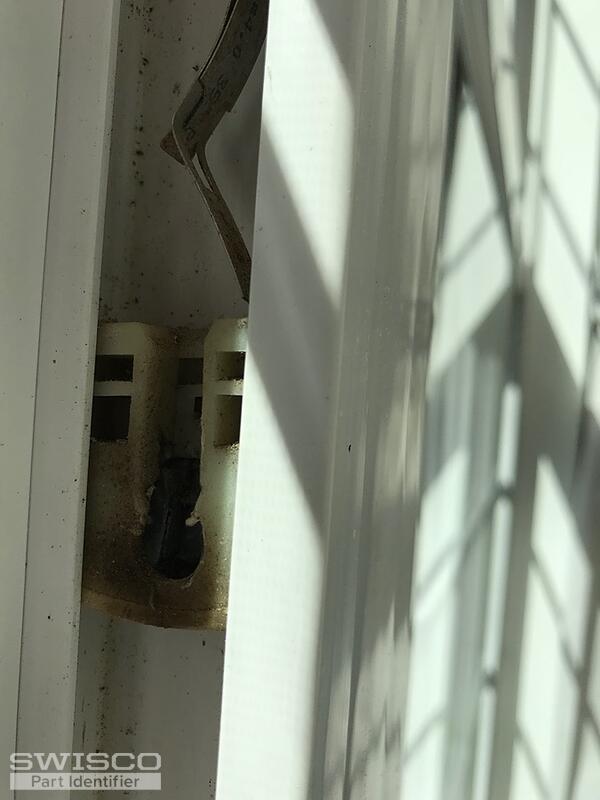

I need the pivot shoe spring assembly and anything else I might need to replace on my windows as a couple are broken I don't have the part number I couldn't see them in your list

Casey · Accepted Answer

Hello,

I'd recommend removing your coil balance assemble to compare the specifications of the 15-199 pivot shoe to yours, which uses either the Series 160 or Series 165 coils depending on the width of your original springs. Once you determine the correct coils, there should be numbers stamped on the original coils that will determine the corresponding strength options for your replacements. You'll also find the compatible covers and accessories under the related items section of the coil product page. Thanks for posting!
