Picture of plastic hook and hole for fastening bottom of spring, and hole for securing bottom window steel pins.
Need Plastic hooks, Springs & Pins Approx. 2.5 inches
In length, with hole size approximately 1/8".
Thanks Gene
Plastic Hook and hole to fasten sash spring and pins
Quick Learner
Aug 1, 2022 7:02 pm
3 user uploaded images
4 Replies
Dave Sr. from SWISCO
Aug 3, 2022 8:59 am
Hello,
Take a look and compare the specifications of the 15-104 friction shoe to your part. Thanks for posting!
Quick Learner
Aug 3, 2022 2:31 pm
Hi Dave Sr. Thanks for your prompt response, and locating the Caradco Friction Shoe that looks to be the exact replacement part I'm looking for.

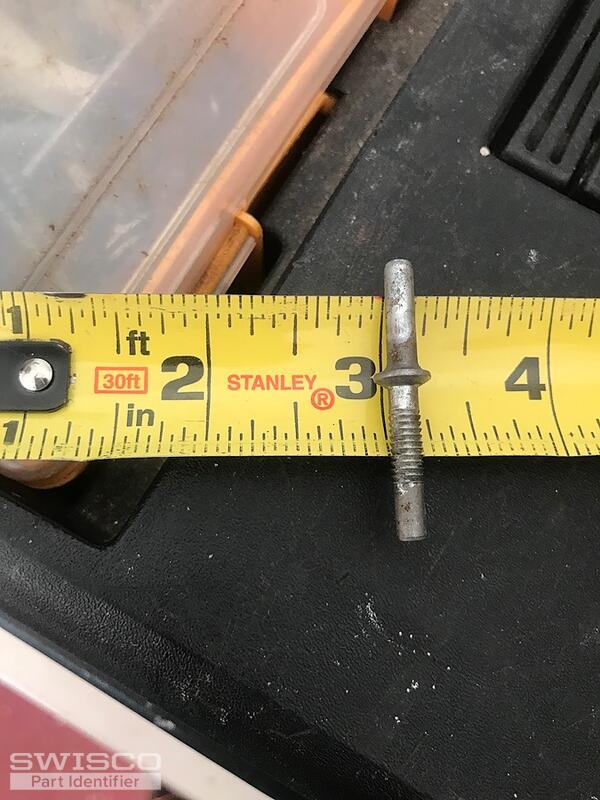

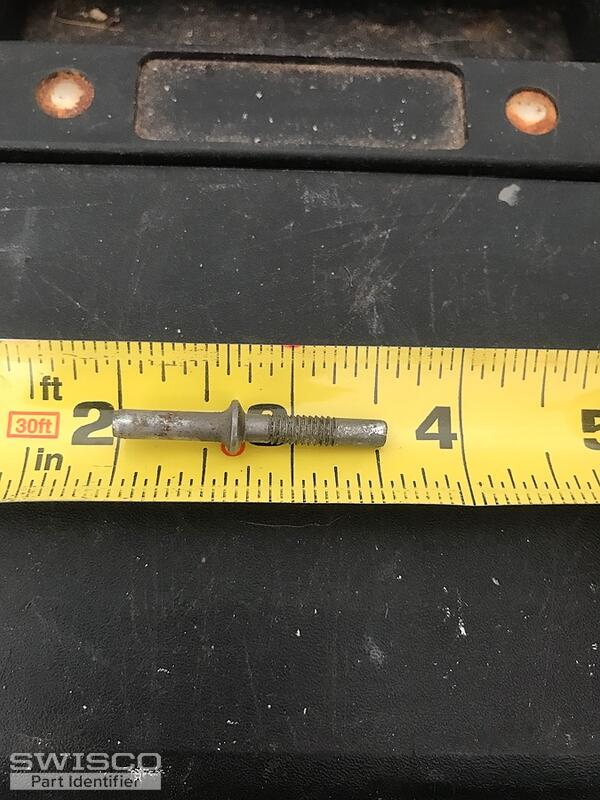

As a follow up, I sent in a separate request today with better quality photos, requesting part information for the also required metal pins, that locate into the hole on the Friction Shoe.

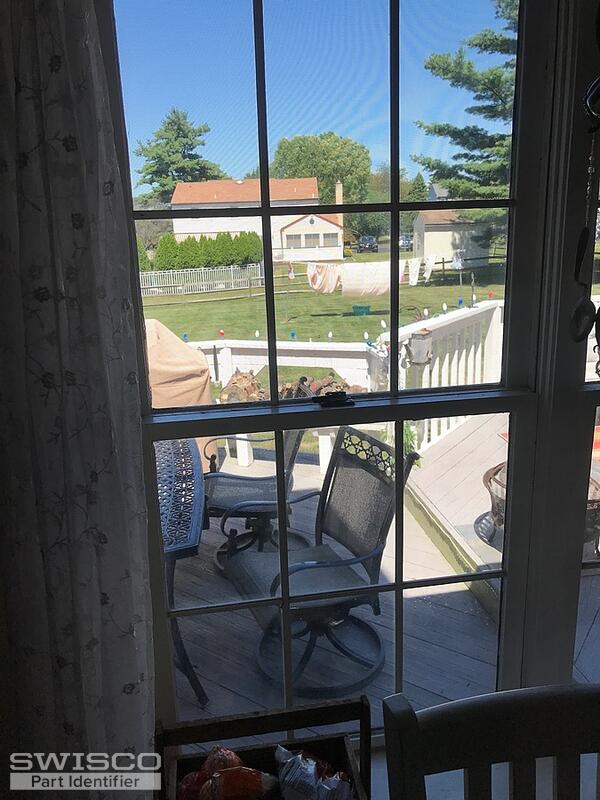

In addition, I would like a part number for the window pane external dividers.
Each window requires
(4 ) Horizontal Dividers 23.5 In. L
(2) Vertical Dividers 27.0 In. L
Once these pieces are Identified, I can proceed to place my order for the proper quantities required.
Thanks in advance
Gene
3 user uploaded images
Casey from SWISCO
Aug 3, 2022 2:58 pm
Unfortunately, we do not carry a replacement for the pin assembly or window mullions shown in your photos. Generally speaking, the Caradco friction shoe is the only replacement part that we carry for windows with this type of balance assembly.
I'm sorry that we won't be able to assist with this part of your repair but please let us know if you have any other hardware questions.
