Searching for Tilt latches and bottom pivot pieces for Crystal series 400/500.

Quick Learner

Dec 8, 2022 5:05 pm

I need 6 plastic slide in tilt latches measuring about 2 1/16" X 5/8" for Crystal Windows series 400/500 and 6 bottom pivots slide in also ( aluminum I think). See tilt latch photo. Can you identify and price for me.

2 user uploaded images

6 Replies

Lauren from SWISCO

Dec 9, 2022 8:31 am

Hello, thank you for posting,

Please start by reviewing the style and dimensions of the 26-371 tilt latches to see how they compare to your original.

DImensions for 26-371

It sounds like you may need new pivot bars that engage with the pivot shoe in the window channel. To further review, we will need to see pictures of the original part to view the style. Thank you!

Quick Learner

Jan 17, 2023 4:25 pm

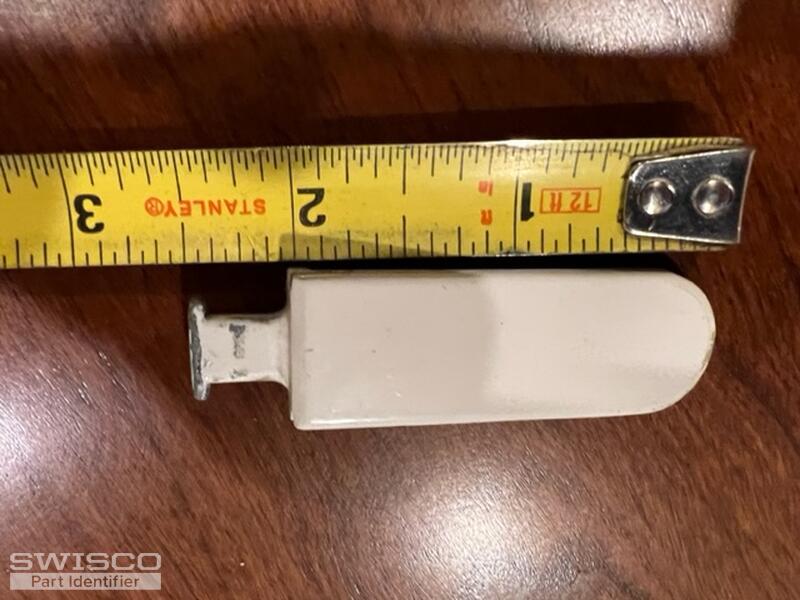

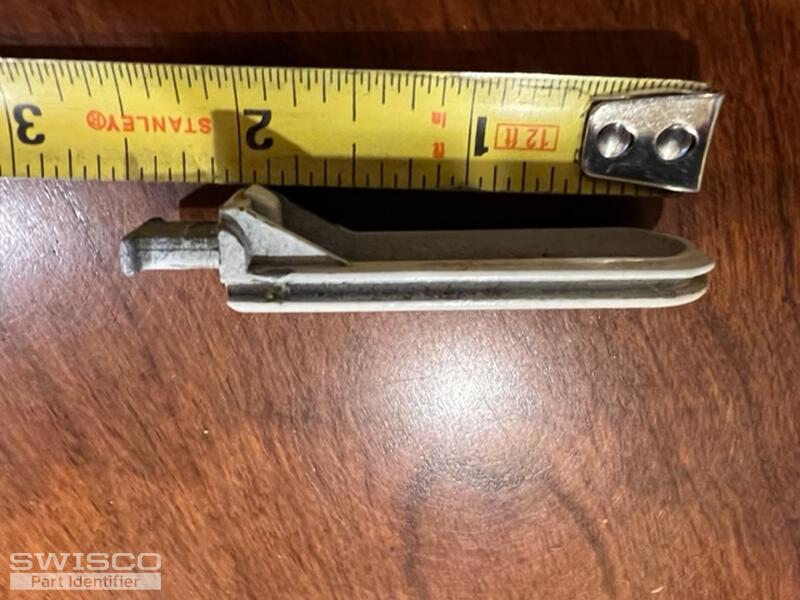

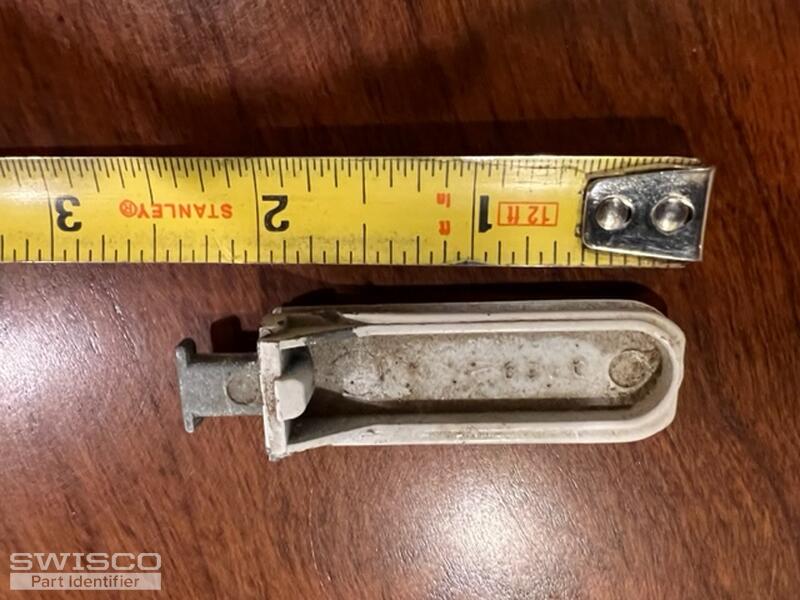

Attached are three photos of the pivot bar. Note it is a "slide in" connection to the window frame. It is aluminum. I also need the tilt latch. It is plastic and is also "slide in" with the same dimensions as the pivot bar connecting to the window.AA picture is also attached. I would like 6 each of the pivot bars and 6 ea of the tilt latches. Kindly advise the correct model numbers.

4 user uploaded images

Tom from SWISCO

Jan 20, 2023 12:43 pm

Hello! This pivot bar appears to be a match for our 26-373, but as Lauren mentioned with the tilt latches you should review our specs to verify.

Dimensions for 26-373

Home Owner from Tulsa, OK

Jan 24, 2023 11:57 am

My tilt latches are also "slide in" with the dimensions indicated on the slide in T-Pivot bar. So, is the p/n 26-371 going to work or should the pivot latch be a different p/n?

Tom from SWISCO

Jan 24, 2023 12:43 pm

The 26-371 isn't necessarily going to work for you, no. There's always a chance but it's not a guarantee since the 26-373 is used on many different windows. Your first step should be to carefully measure your old latch and compare it to the dimensions we show for the 26-371 pair.
