Searching for TputII 15 in arm window operator

Quick Learner
Aug 5, 2023 12:52 pm

20year old awning bathroom vinyl replacement teeth worn on top arm will open but gets to last 2in and it won't close crank just turns can you find me a replacement easy removal and install if I can the correct replacement TPUTII stamped on arm can't get the white cover off handle pop right off

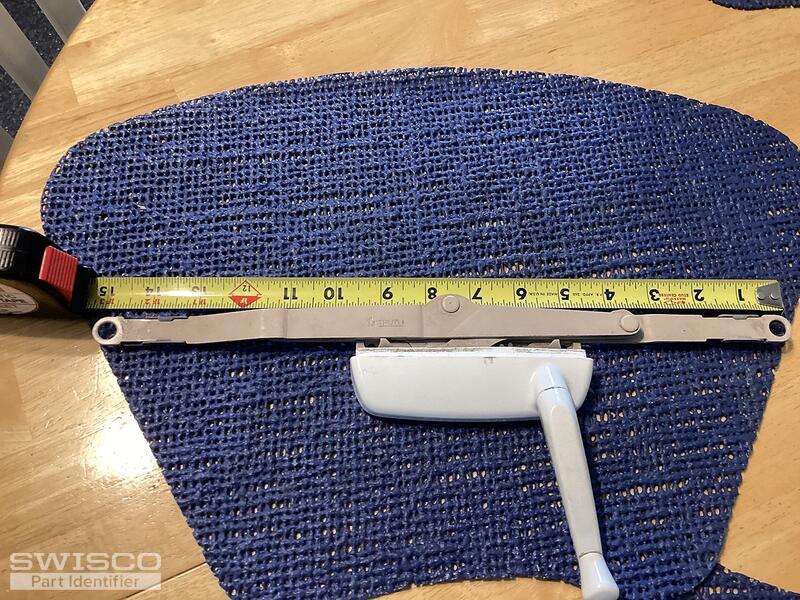

When looking at the pic with the tap measure when closed 15 inches open it is the same lenght six screws 3 on each side hold it to the window frame all vinyl I did put it back in waiting for your replacement I'm very optimistic you can help lol

 Thanks

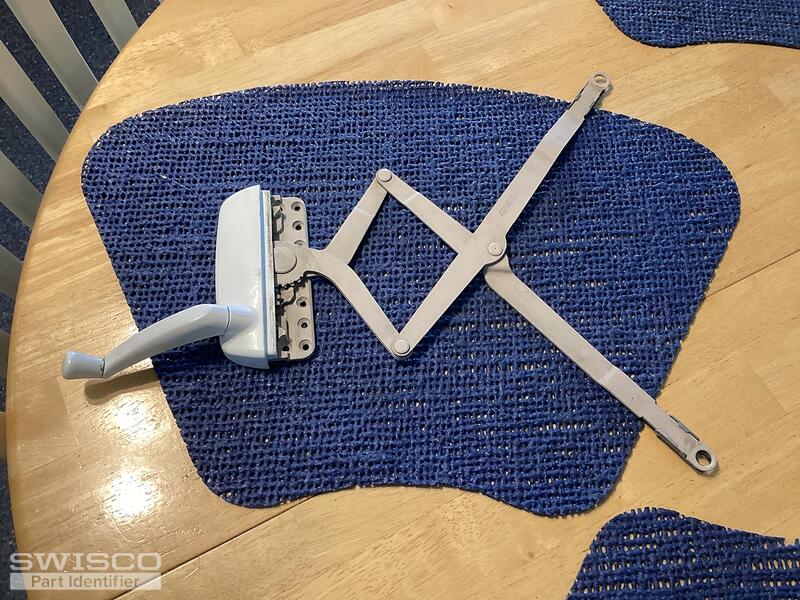

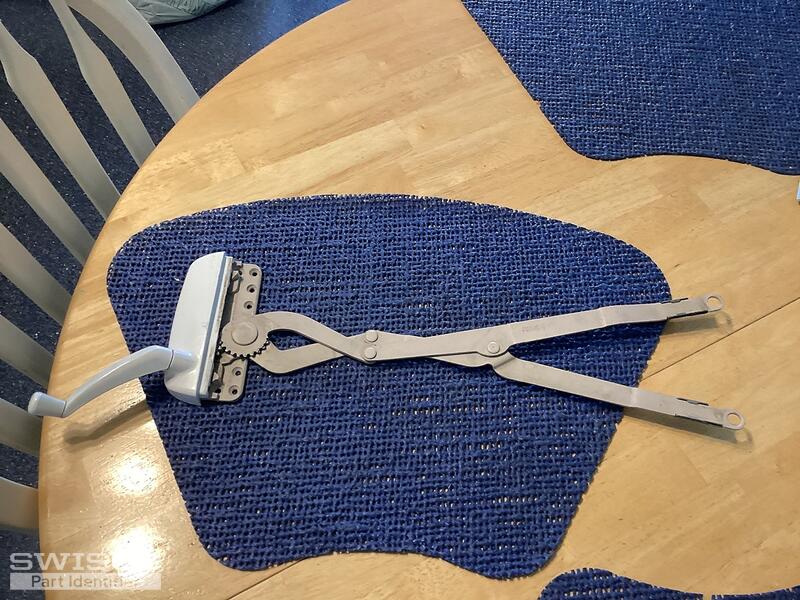

7191D1B9-FBBB-4CB5-879A-638C28E19963 CD28FB48-F927-4B12-A0B4-E63EF2220E61 D2722985-D2E0-4AB0-8D09-85C65C6980D8
3 user uploaded images
1 Replies
Bob
Bob from SWISCO
Aug 5, 2023 10:25 pm
SWISCO
EXPERT

Thanks for posting. I do believe we can help! This looks just like our 39-239B. See the diagrams below just to confirm all the dimensions match up. This operator also comes in a stainless steel version, the 39-239C. For a compatible handle and cover, see either the 39-375 or 39-451, depending on the style you prefer. Let me know if you have further questions!

Dimensions for 39-239B
Dimensions for 39-239B
Alternate view and dimensions for 39-239B
Alternate view and dimensions for 39-239B
Alternate view and dimensions for 39-239B
Alternate view and dimensions for 39-239B
