Seeking replacement for this channel balance

A quick learner from Florence, SC says:
e. It is 34" by 1/2 by 1/2. Probably 18 or 20 years old. I need the channel balance, and the hinge pin that goes in the window
Thumbnail of the uploaded file named 71FF1F58-5915-4BEE-9571-0E86DC9AE439.jpeg
Thumbnail of the uploaded file named 41D681B1-D281-481B-A8BC-7889929FF9BF.jpeg
Thumbnail of the uploaded file named 6E763C9E-D7C0-428E-B830-8EC4AE2F18A9.jpeg

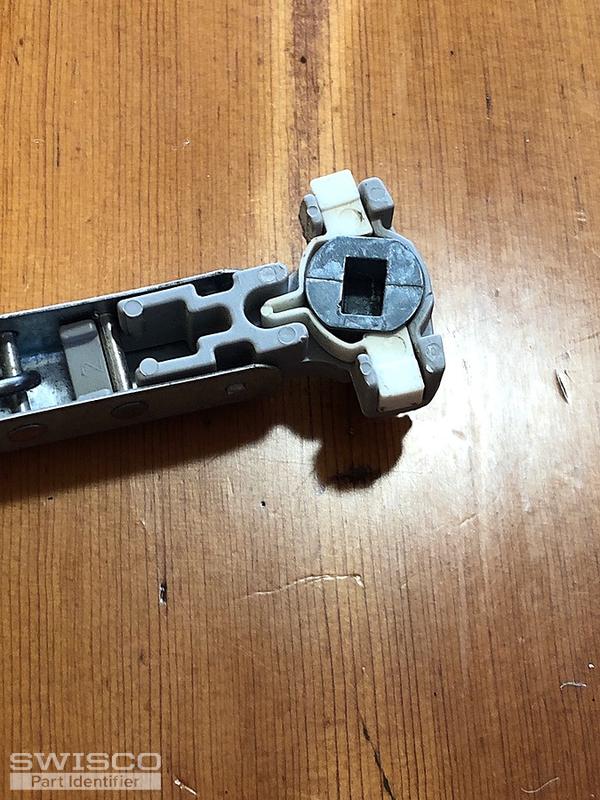

Thumbnail of the uploaded file named 8F00A9E1-D48E-41C1-9385-FF794F3F0682.jpeg

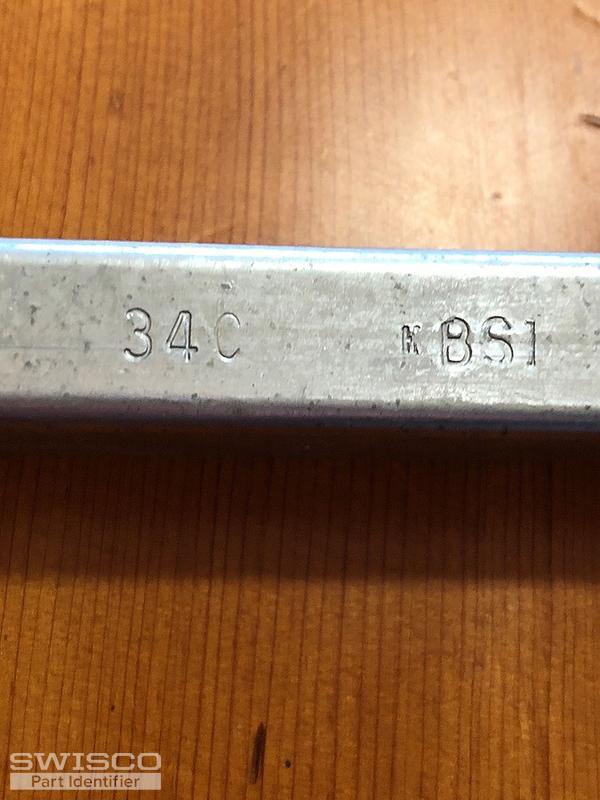

Thumbnail of the uploaded file named 34C BSI balance stamp
Profile picture of Tom
Tom from SWISCO responded:

Hello! We can definitely help with this hardware. I recommend our S795-34 channel balance to start out with, for which you will want the 34C stamp option.

One important thing to keep in mind is that our S795-34 comes with a closed-cam type shoe by default, while yours is an open-cam type. Because of this, I recommend purchasing our open-cam 15-195B separately and then swapping them out when you get it in. We have a video that shows you how this can be done, which I'll share at the end of this post.

Finally, if you needed your pivot bar, I recommend looking at our 26-021 first. Look over our dimensions and pictures just to confirm.

A quick learner from Florence, SC says:
Thanks for the help!
Profile picture of Tom
Tom from SWISCO responded:

My pleasure! Let me know if you have any questions. I'm happy to help in any way possible.
