Seeking to identify sash balance

Quick Learner from Franklin, Massachusetts

Oct 22, 2025 7:17 pm

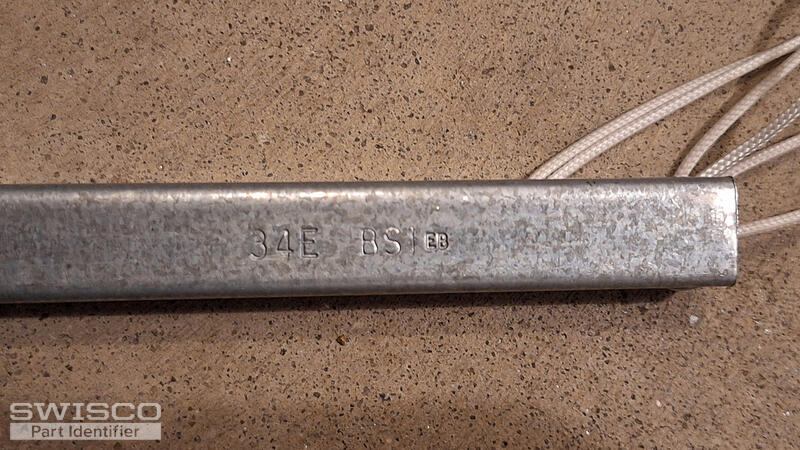

Sash balance. 34" in length. Double-hung window. Lower pane tilts in for cleaning. Need to replace sash balance on left side (and probably right side, too). Not sure what kind of part I need. Thanks for the help!

4 user uploaded images

4 Replies

Jasmine from SWISCO

Oct 23, 2025 2:46 pm

Thanks for your post! There is a good chance we can provide a replacement for this window balance. Although, to determine the correct match, I'll need to see clearer photos of the top and bottom attachments on it. The bottom attachment is likely to still be attached to the bottom of the window sash.

Please let me know if you have any questions!

Quick Learner from Franklin, Massachusetts

Oct 23, 2025 7:04 pm

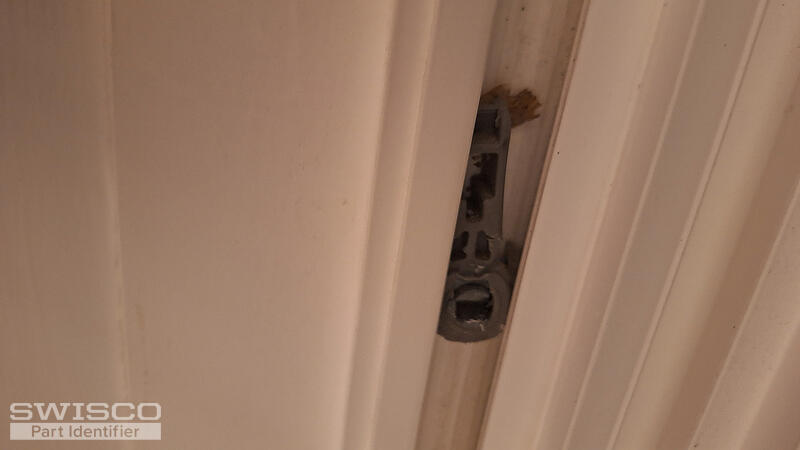

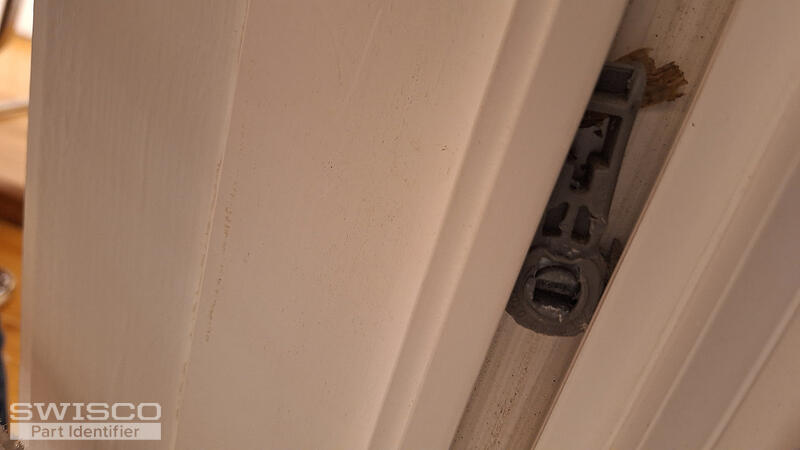

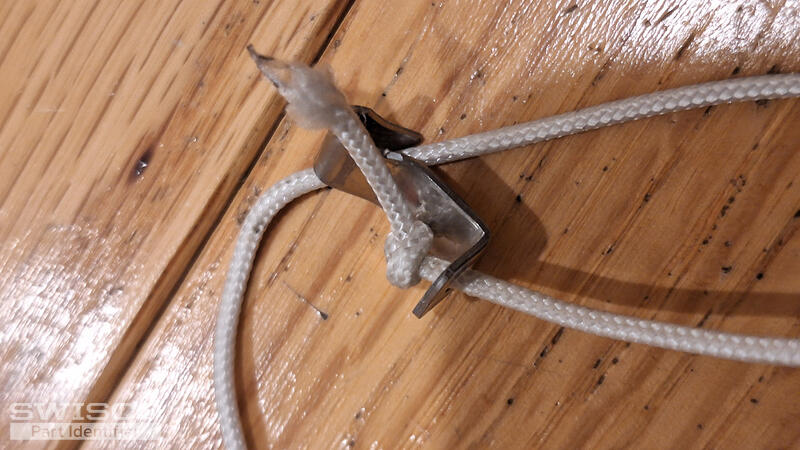

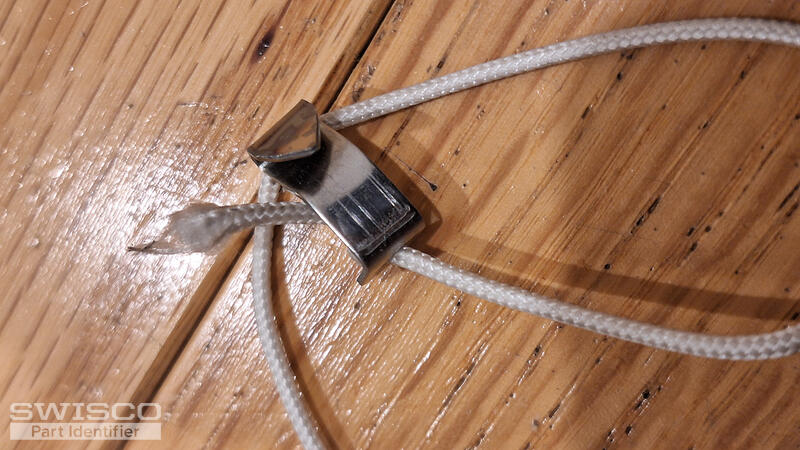

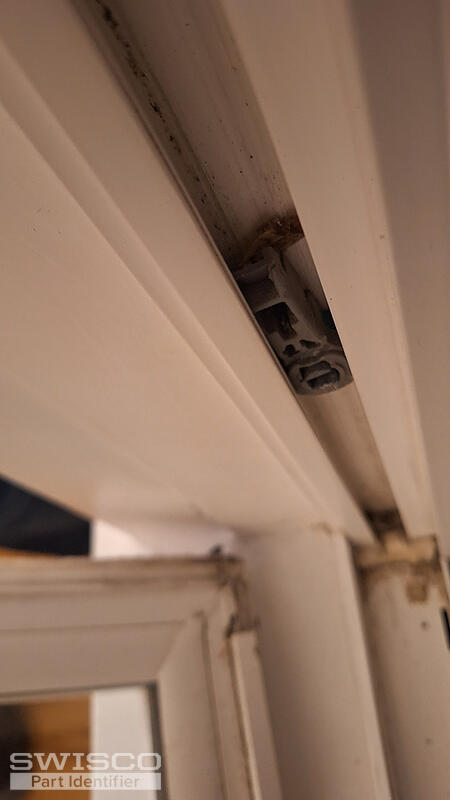

Thanks for the quick reply. Here are photos of the bottom attachment (in the track) and the top attachment.

5 user uploaded images

Jasmine from SWISCO

Oct 24, 2025 9:45 am

Your window balance is a custom, Series 795 Channel Balance. It is considered custom because we'll need to add a hook to the top of them. To confirming pricing and availability for the replacements, I'll just need to know the number of balances you'd like to purchase. The quantity minimum is (2) assemblies.

The replacements will come with the 15-195 closed cam shoe installed to the top of them. Be sure to remove the existing shoe to confirm that it is 1-1/4" in width. If it is 1", you'll need the 15-194.

Please let me know if you have any other questions!
