Series 795

Quick Learner from New Jersey
May 11, 2024 12:28 pm

Hello,

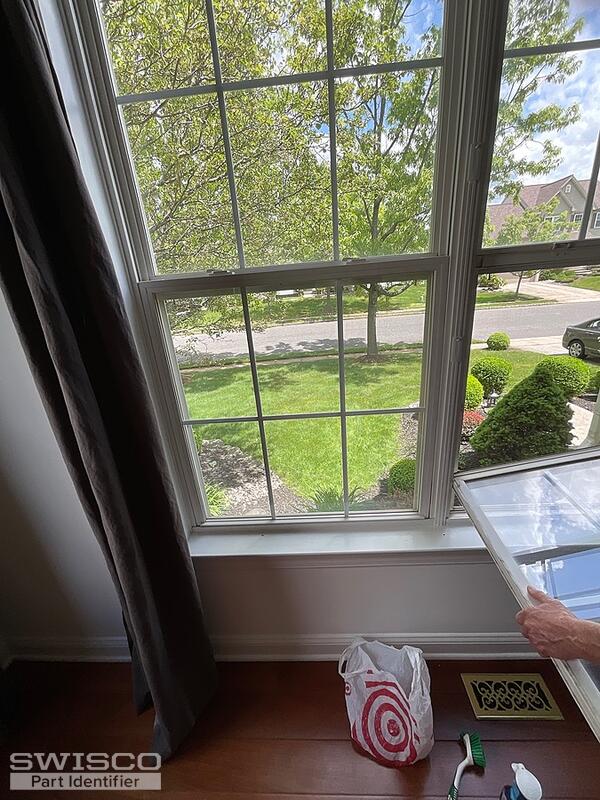

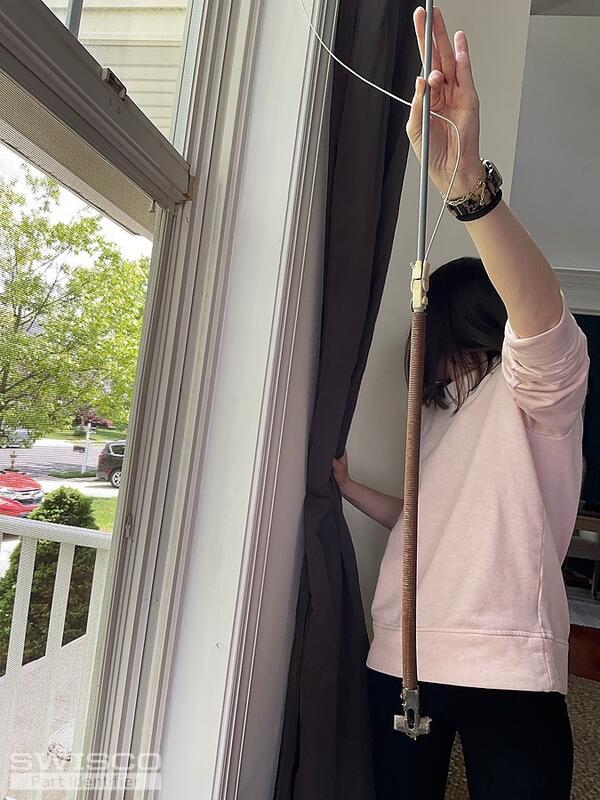

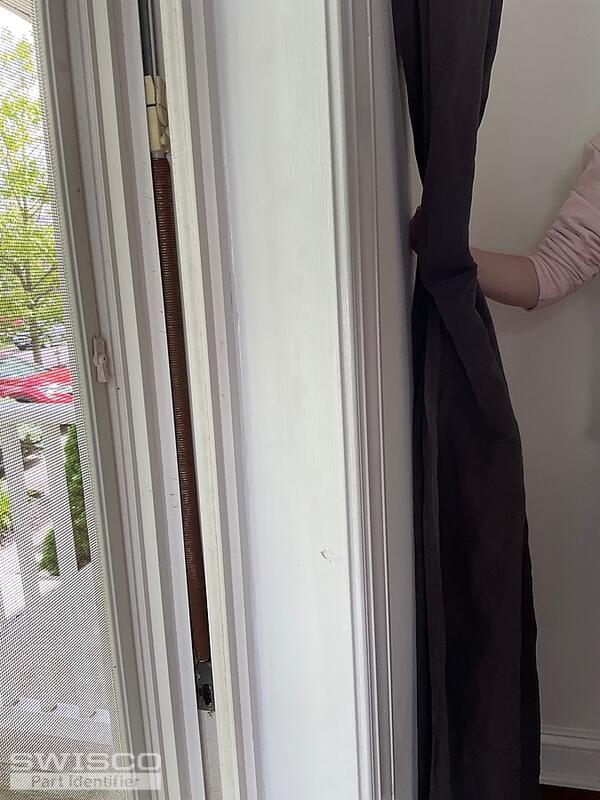

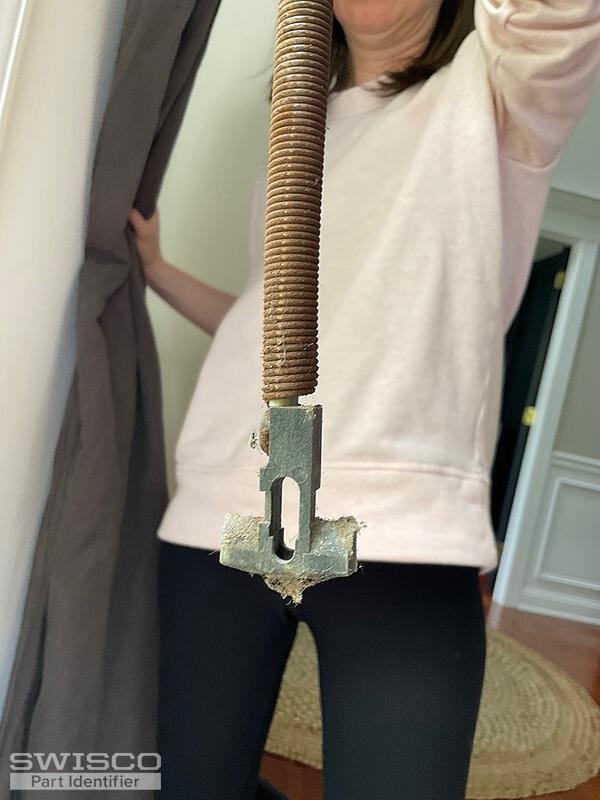

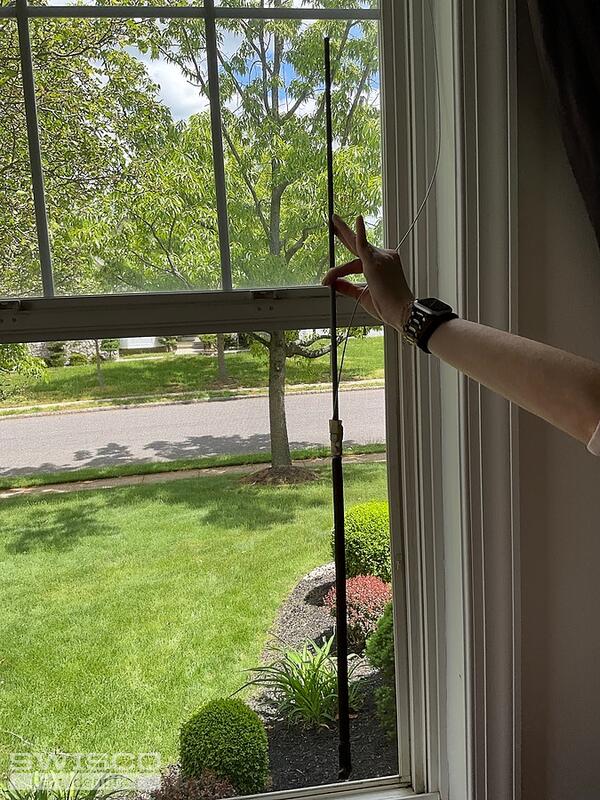

I'm looking to purchase several sets of balances for my windows but want to make sure the measurements are correct. I have them at 34.75inch tall balances to the top of the plastic tubes which looks different than the balances in your videos. Please see attached pictures. It makes me unsure of where to measure from. Can you clarify for me based on the pictures I submitted. The sashes are 22.6 lbs. the t locks at the bottom of the balances are 1.25 inches. They also need the 26-021 pivots. Can you help me navigate which one to buy? Thank you for the support in advance.

IMG_0110 IMG_0109 IMG_0108 IMG_0107 IMG_0106
5 user uploaded images
1 Replies
Lauren
Lauren from SWISCO
May 13, 2024 10:19 am
SWISCO
EXPERT

Hello, thank you for posting,

You have an older crossbow balance that is no longer made. As long as the original spring is a 1/2" wide, you should be able to convert to the Series 795 channel balance. Please review the step by step video below that details the conversion, how to measure the original balance and additional parts needed.

Let us know if you have any additional questions!
