Shoe & Coil Assembly?

Question

Good afternoon,
I have a couple of windows with broken lock shoes. As you can see in the image, the metal broke apart.

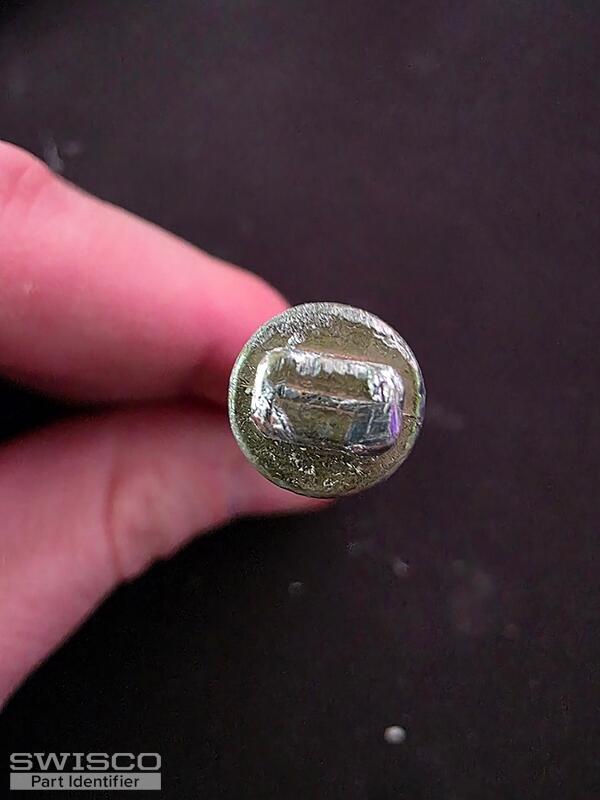

I'm just having a hard time finding the correct parts that I need. I also included a photo of one of the lock bars. I may need to replace those as well, they seem to be a little bent out of shape, and the end of it looks a little worn. Let me know if you need any other information.

Lauren · Accepted Answer

Hello, thank you for posting,

Your original pivot shoe has been discontinued, but we recommend reviewing the 15-177 as a replacement option. Review the dimensions below to confirm a good fit!

Alternate image for 15-177

The original springs will be compatible, but if new ones are needed, see the Series 152 coil springs. You would need to match up the number on each spring to confirm the correct weighted option.

For a new pivot bar, compare the dimensions of the 26-226 to start. Let us know if you have any questions!

End view of the 26-226 pivot bar
