Shoe part

A quick learner from Cincinnati OH says:
February 14, 2023
Hello!

I have a set of old windows and am looking to replace the broken shoes. I was unable to find any numbers on them. Is there other information that would be helpful?

Many thanks,
Wellesley
Thumbnail of the uploaded file named 20230214_214406.jpg
Thumbnail of the uploaded file named 20230214_214359.jpg
Thumbnail of the uploaded file named 20230214_214351.jpg

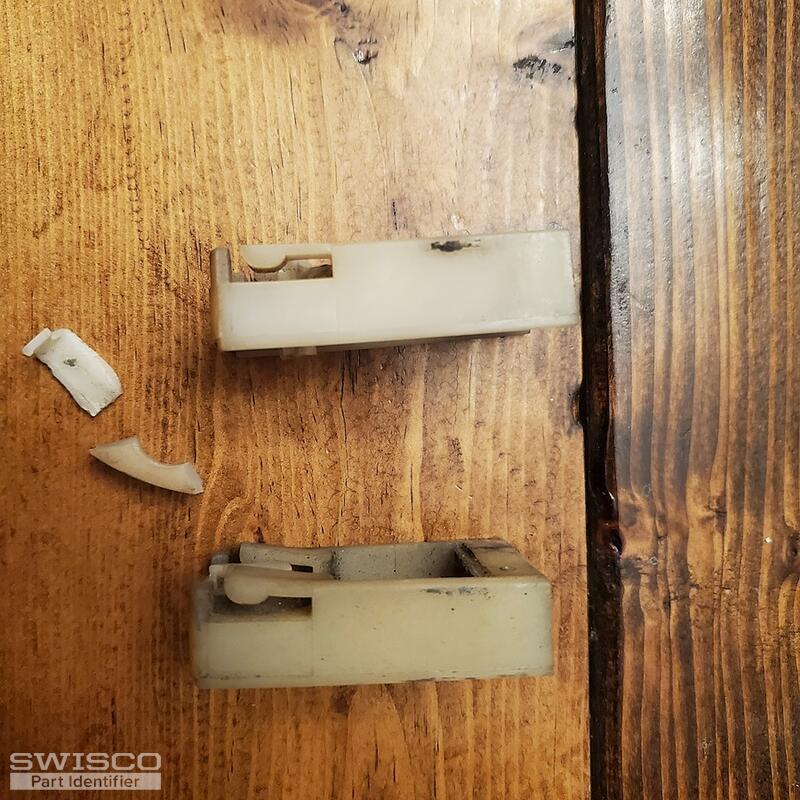

Thumbnail of the uploaded file named 20230214_214413.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 15, 2023

Hello,

We'd be happy to look into this for you but we would need you to write out the exact width and thickness of your pivot shoe to compare to our inventory. That will help us make sure that whatever we recommend will fit inside your window channel. Thank you!
A quick learner from Cincinnati OH says:
February 15, 2023

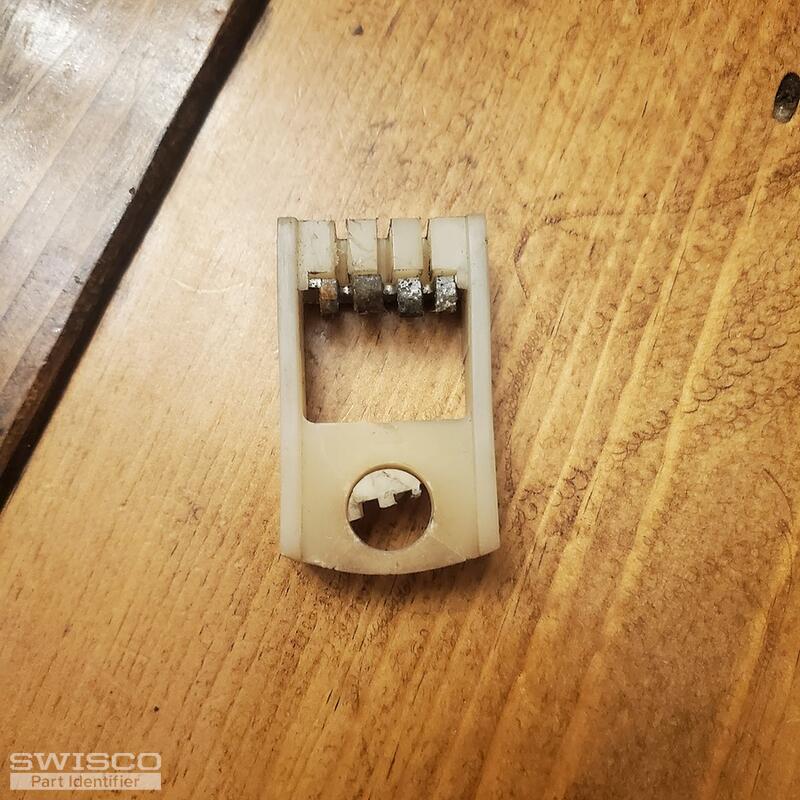

width: 1.25 inches
thickness: 9/16
length: 2 and 4/16 inches straight down the middle (side length not including the rounded bottom piece is 2 and 1/16) SEE ATTACHED PHOTO

Thumbnail of the uploaded file named 20230215_183200.jpg
A quick learner from Cincinnati OH says:
February 17, 2023
Hello!
checking in to confirm, are you suggesting that shoe part #15-046 is the replacement part?
Profile picture of Casey
Casey from SWISCO responded:
February 17, 2023

Thank you for your patience as we looked into this for you. Your pivot shoe is an old discontinued model but I suspect that the 15-046 or 15-118 could work for your repair. Take a look and review the specifications of both options to see what you think. Thanks for posting.

Alternate image for 15-046
Alternate image for 15-046

Detailed image of the pivot bar slot of the 15-046 pivot shoe.
Detailed image of the pivot bar slot of the 15-046 pivot shoe.

Alternate image for 15-118
Alternate image for 15-118
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
