Silver line sliding door me mechanism broken

Question

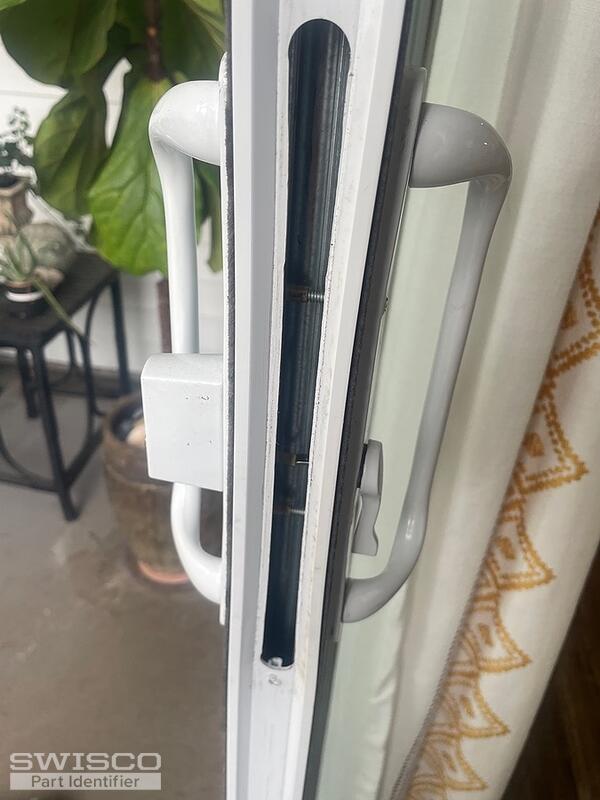

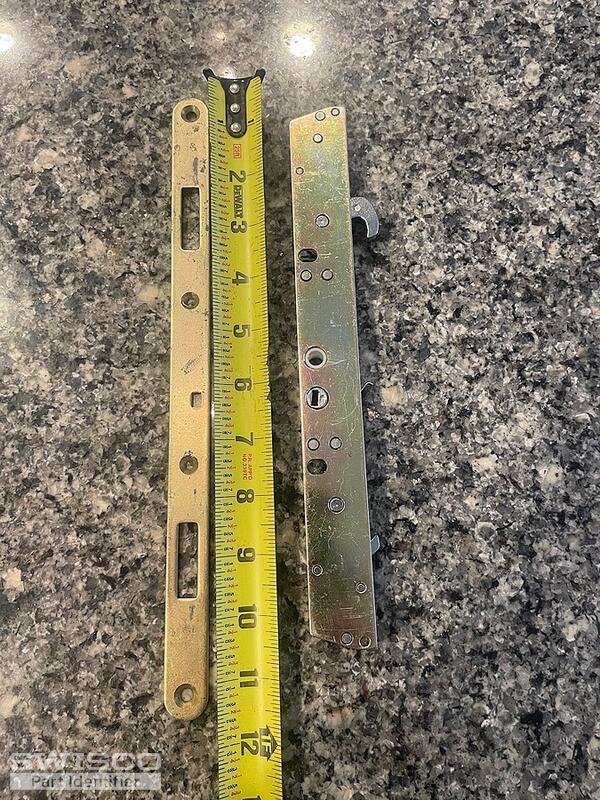

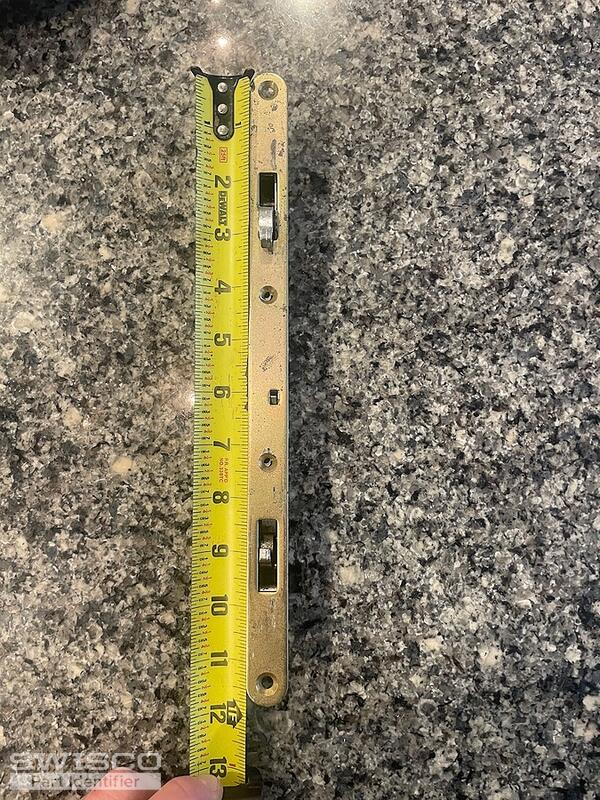

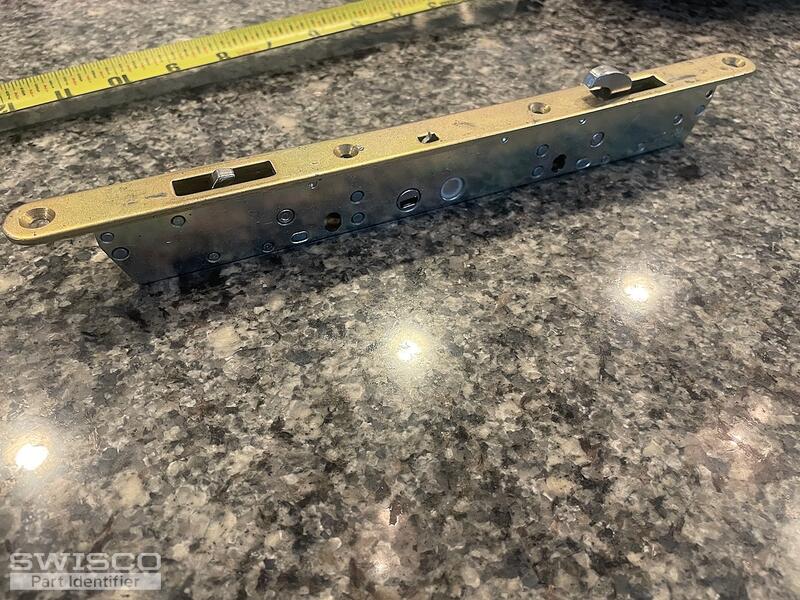

The door looks appear to be locked into place I took it apart and it's even worse. All I know is my door is a silver line door #800234
I'm trying to get the lock to work again and I'm not sure what parts I need to replace it.

Dave Sr. · Accepted Answer

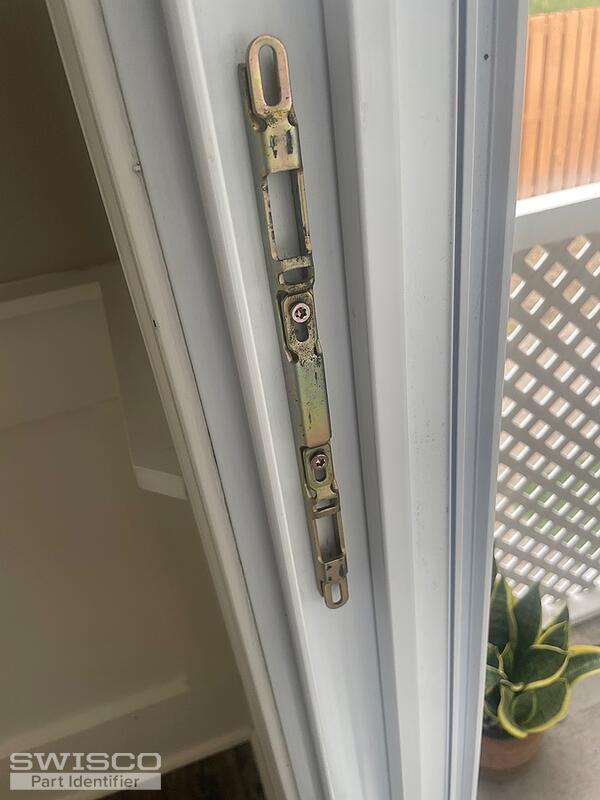

If your handle (which looks like the 82-086) is in good working order then you might just need to replace the 82-265 mortise lock along with the 82-249 keeper. I would suggest replacing the keeper because the new lock might not line up with older keepers in many circumstnaces.

Look these parts over and see what you think!
