Silver line windows circa about 2009

Contractor from Cedar lake indiana

Oct 27, 2023 4:51 pm

Hi, I was wondering if you would be able to help me with these parts I am looking for 1 left tilt sash. 2 right tilt sash latches and 6 balances. They measure about 27in length. Thank you in advance

3 user uploaded images

4 Replies

Lauren from SWISCO

Oct 30, 2023 11:01 am

Hello, thank you for posting,

To further review, are you able to provide the number/letter stamped on the metal channel? We will also need to see the top to see how it installs. If it uses a hook or a screw to install into the window channel.

For the tilt latch, are you able to provide the length and width, not including the latching tab? Thank you!

Contractor from Cedar lake indiana

Oct 30, 2023 10:22 pm

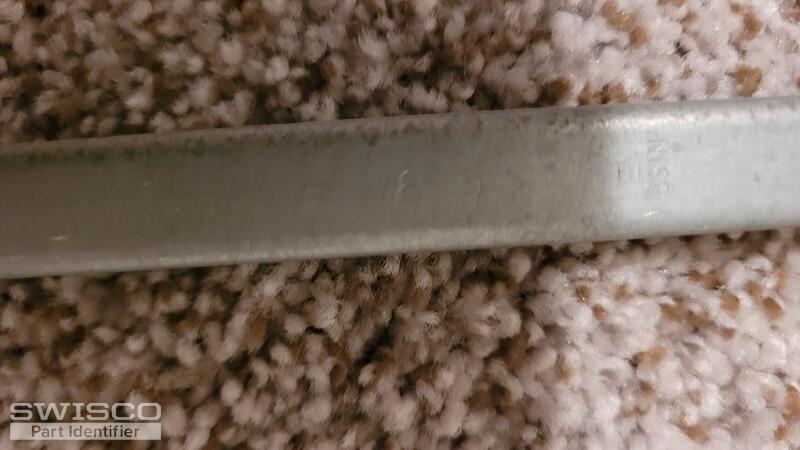

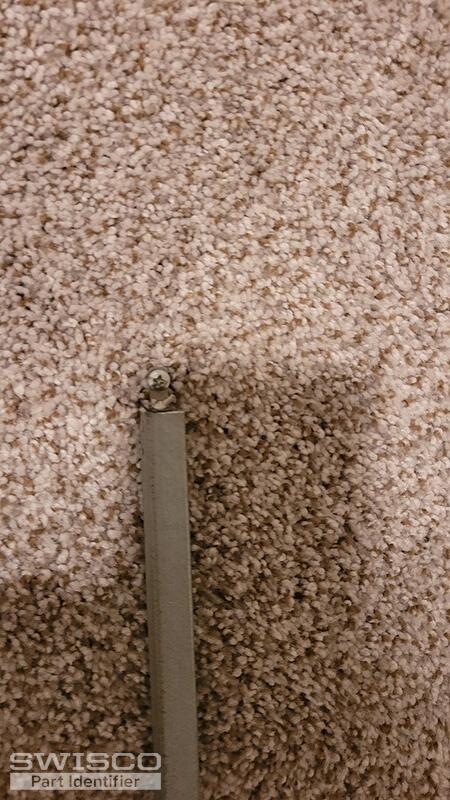

Thank for getting back to me Lauren. The spiral balances are mounted with screws at the top and have a number 28-5 on them. Also letters of BSIN. The tilt sash latches measure about 3/4 wide by 2 1/4 long without the latch tab. Attached photos.
Talk to you soon

Henry

5 user uploaded images

Lauren from SWISCO

Oct 31, 2023 12:40 pm

Hi Henry,

We do not have a latch that matches up to the dimensions provided. The closest we can provide is a style like the 26-393B. Please double check dimensions to see if this style could work for you.

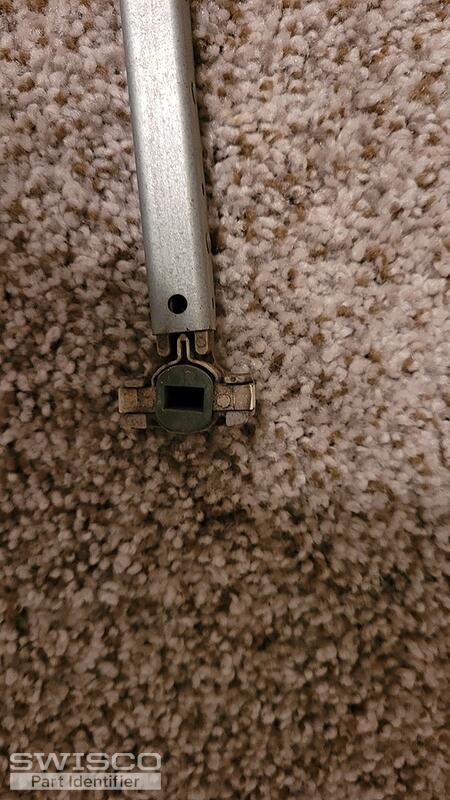

For the channel balance, you have the Series 795, but with the 15-195B open cam T-lock shoe. This shoe will need to be purchased additionally and switched out with the stock shoe before installation.

Dimensions for 15-195B

Are you able to double check the length? With a 28-5 stamp- the length should be either 28 or 29 inches. Let me know!
