Silverline double hung windows 1000 series pivot shoe

A home owner from Galloway, NJ says:
September 21, 2018

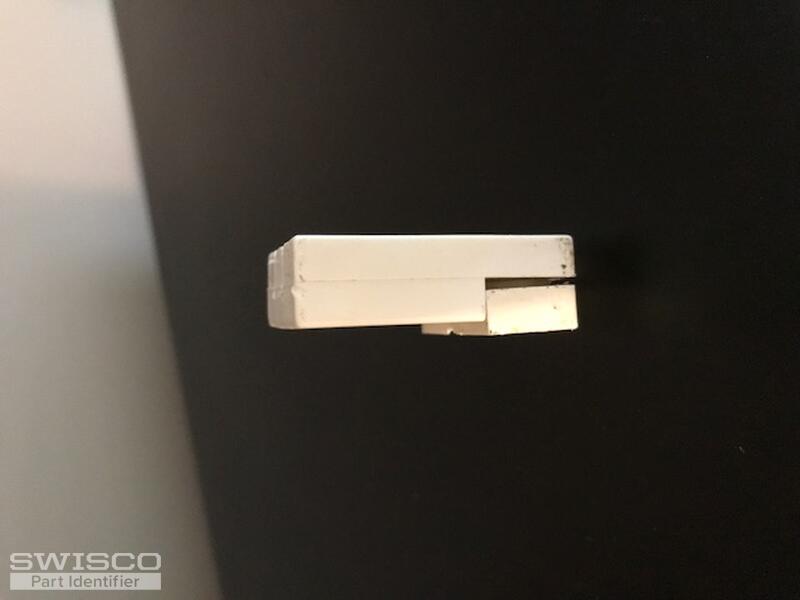

I have broken pivot shoes on my silverline 1000 series double hung windows

they are 1/2 inch thick

1 3/16 inches wide

1 3/4 inches high at the edge

the slots at the top are 10/16 apart

thanks for your help

Howard S.

Profile picture of Paul
Paul from SWISCO responded:
September 27, 2018

The pivot shoe on your Silverline 100 Series vinyl window has been replaced with the 15-046. These type of shoes go with the Series 765 tilt balance. Take a look and see if you agree with this recommendation.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Balance Stop
Balance Stop
26-053A
$1.42
