Quick Learner from PA

Sep 6, 2024 5:33 pm

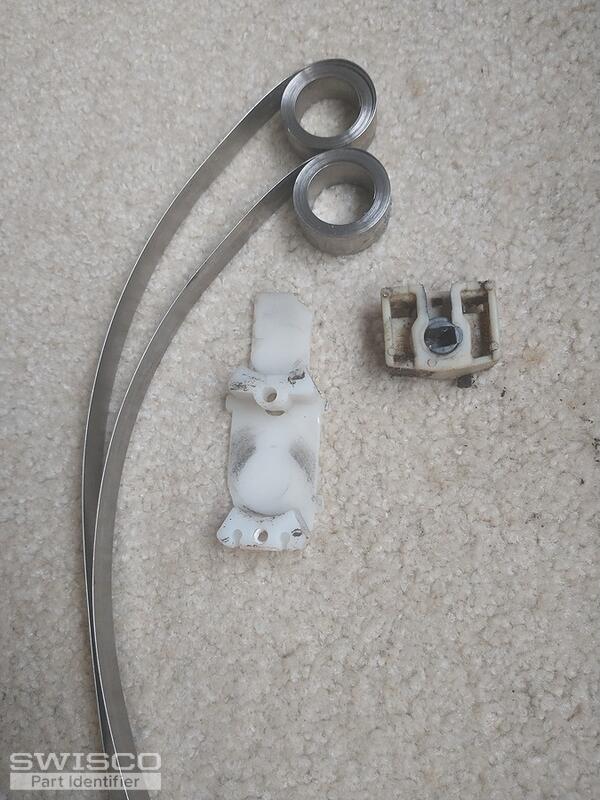

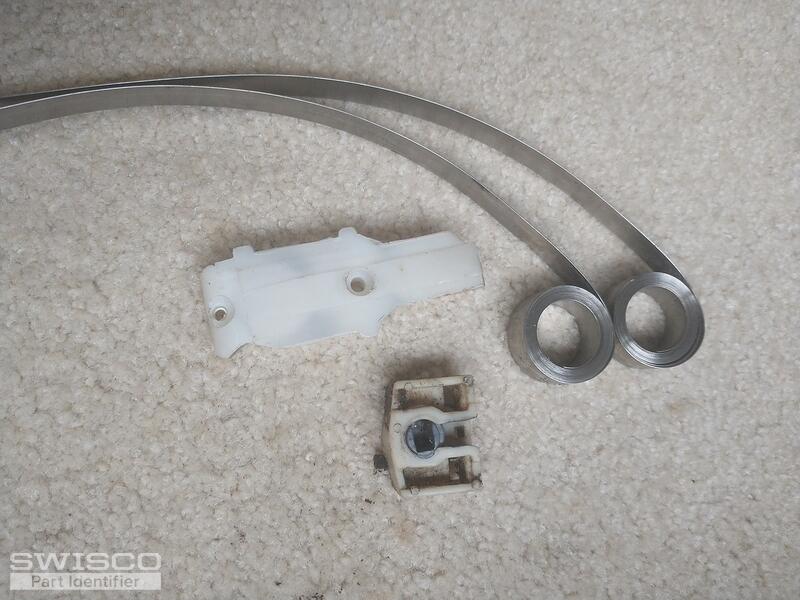

1998 Simonton see pictures and make sure I got correct numbers.
1/2 coil S160-06.
15-191 shoe
15-150D support, which looks different.

2 user uploaded images

9 Replies

Casey from SWISCO

Sep 11, 2024 1:15 pm

Hello,

I agree that your pivot shoe resembles our 15-191, which works with the Series 160 coil spring. As long as your coil springs are stamped with 6, you're good to go with the S160-06 replacements. The 15-150D is the new-style version of the cover used with this assembly. Thanks for posting!

Alternate image for 15-191

Quick Learner from PA

Sep 11, 2024 5:39 pm

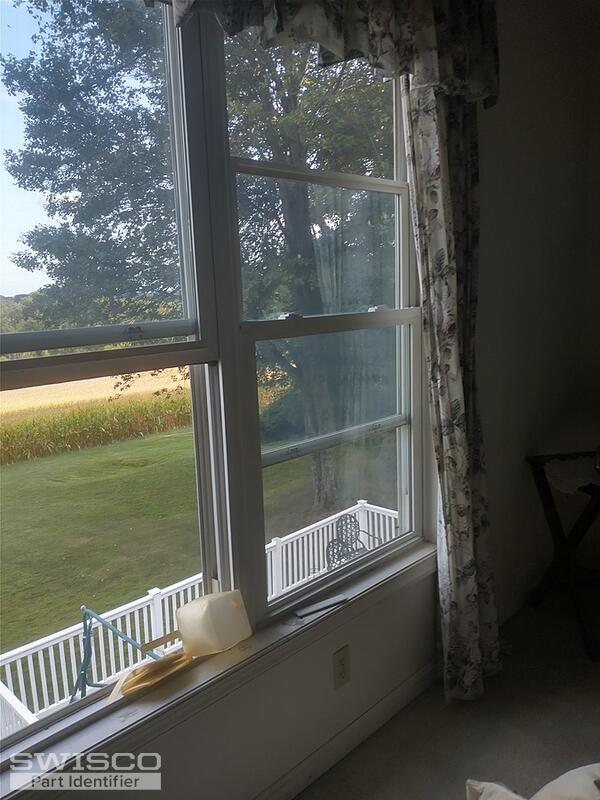

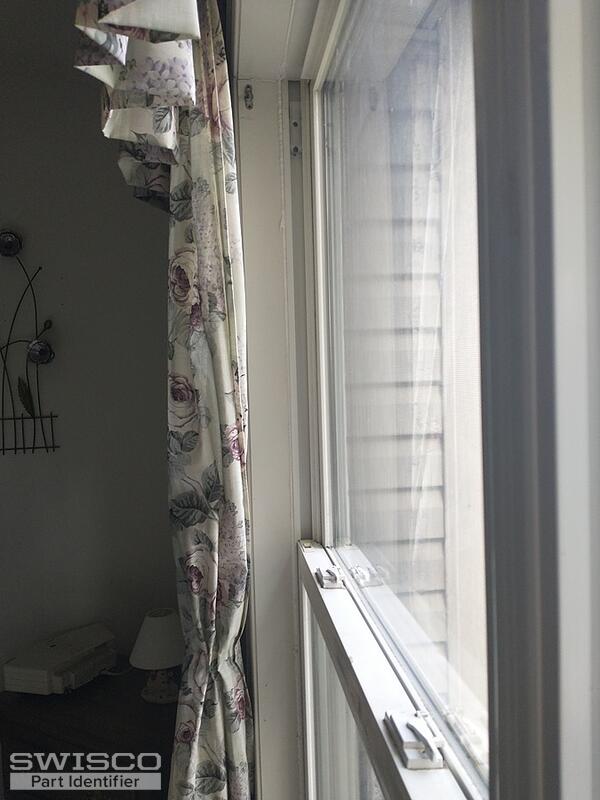

I have looked all over these coils and cannot find a stamp. The smallest sash in my house is approximately 32x31. Note where coil brackets are mounted on lower sash. That's how long coils are, from top to bottom. Every video I watched and my complete first floor has coil brackets right above cut outs?

2 user uploaded images

Casey from SWISCO

Sep 12, 2024 8:45 am

No problem. If there are no numbers stamped on your coil springs we'll need you to confirm the exact weight of the sash that the coils support to calculate the strength options for your replacements.

Quick Learner from PA

Sep 12, 2024 6:33 pm

The following window sash weights.
19.2 lbs.
20.5 lbs.
20.7 lbs.
24.5 lbs
27.3 lbs. Will be ordering all sizes. Thanks for everything.

Casey from SWISCO

Sep 13, 2024 8:25 am

For your 19 and 20-pound sashes, I'd recommend using one S160-10 coil on each side. For the 24-pound sash, You'll need one S160-09 and one S160-03 on each side. The 27-pound sash would use One S160-10 and one S160-03 on each side. Juts let us know if you need anything else.

Quick Learner from PA

Sep 13, 2024 10:35 am

All of my 20 lbs Windows had double coils. So I should also change brackets to 15-150S. Thanks again.

Casey from SWISCO

Sep 13, 2024 10:53 am

Yes, you can use the 15-150S single support for your lighter sashes.

Quick Learner from PA

Sep 13, 2024 11:03 am

Very thankful for you all.
