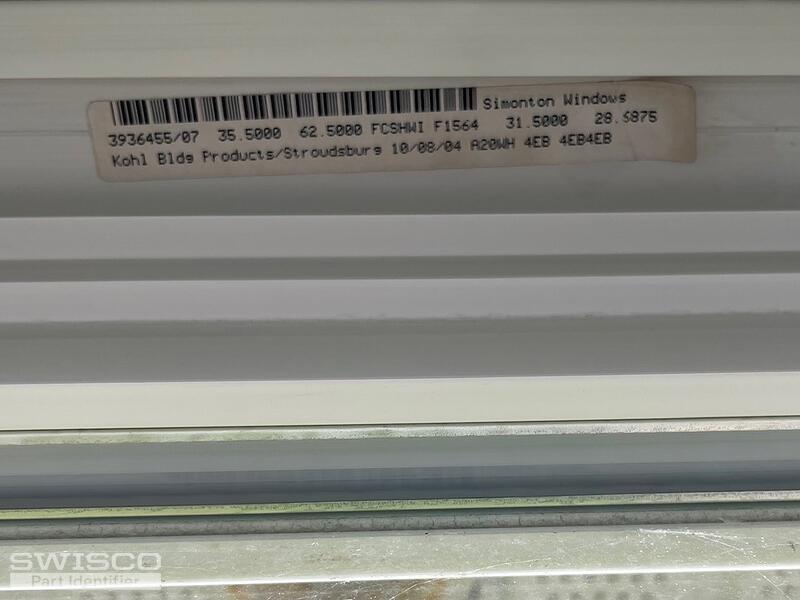

Simonton Double Hung Window 3936455/07

Home Owner from East Stroudsburg PA

May 4, 2024 3:07 pm

Hello,
I am kindly asking for your help and guidance. Needing a replacement window tilt sash latch (left hand side) and a pair of coil balances with the pivot lock shoes. Could you please review the pics and advise? Thanks!

5 user uploaded images

6 Replies

Tom from SWISCO

May 7, 2024 9:35 am

We should be able to help with this hardware. I'll make a recommendation for each part in the order of your request:

Tilt latch: 26-243 and 26-244
Coil Spring: Series 160

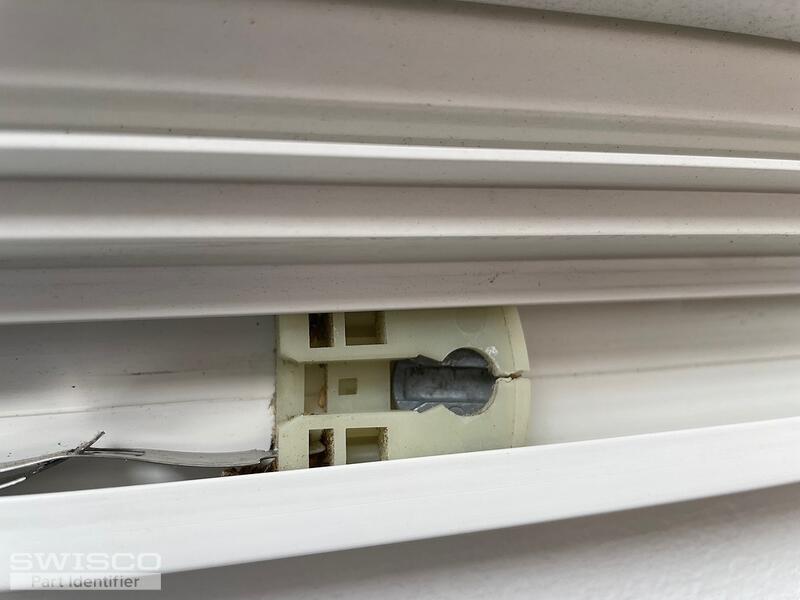

Pivot shoe: 15-199

Make sure to review the dimensions we show for each product before you buy anything. If they differ in any way, let me know how and we can work from there!

Home Owner from East Stroudsburg PA

May 8, 2024 10:27 pm

Hi - thanks a lot. For the series 160 coil spring, do you happen to know which balance weight I would need?

Tom from SWISCO

May 9, 2024 9:39 am

It's tough to tell from your photo. You can usually go by the stamp, but yours is a little too faded to be sure. It would be whatever number comes before the "35" stamp.

If you aren't able to read that code, I would suggest weighing your sash on a scale, then dividing that by how many springs support the sash in total.

For example, if your sash was 22 pounds, you could use four 5.5 pound spring (two on each side).

Home Owner from East Stroudsburg PA

May 12, 2024 6:24 pm

Hi, I was able to remove the triple coil balance and found it was 3/8" wide and a #4 - which was your 4lb 165series coil balance. All the other pieces did match up as you recommended. Will be ordering to fix - thanks!

Tom from SWISCO

May 13, 2024 9:20 am

Awesome! I'm glad to hear that you got the parts you needed.

Please feel free to reach out if we can be of any further assistance.
