Simonton Double Hung Window Balance Assembles (and sash vent stops)

A contractor from Wilmington, DE says:
January 27, 2022
Dear Sir or Madam,

A customer has asked me to repair 2 identical Simonton double hung windows; all 8 of the pivot shoes appear to be broken. I've attached photos of a balance assembly I removed from one sash. Two coil springs are attached to each pivot shoe with a screw. (I tore the coil support removing it from the jamb.) Each coil spring is lightly stamped 406 J, with the J under the 0. The metal pivot shoe body is embossed 09 53 and marked CHINA. The coil support has a small 1 and a 2 embossed and what appears to be a date stamp 1/09. It seems the windows were made/installed in 2010

I suppose I'd need 8 new pivot shoes at least, probably 8 coil supports and perhaps 16 springs? Or 8 complete assemblies? Can you identify the parts? How much are they per item? Do you sell a generic balance assembly that could be used? Also, would need 3 sash vent stops (photo included) Lastly, do you sell Simonton jamb spreading wedges? Thanks in advance for any information you can offer! Sincerely, Tim Sharpe

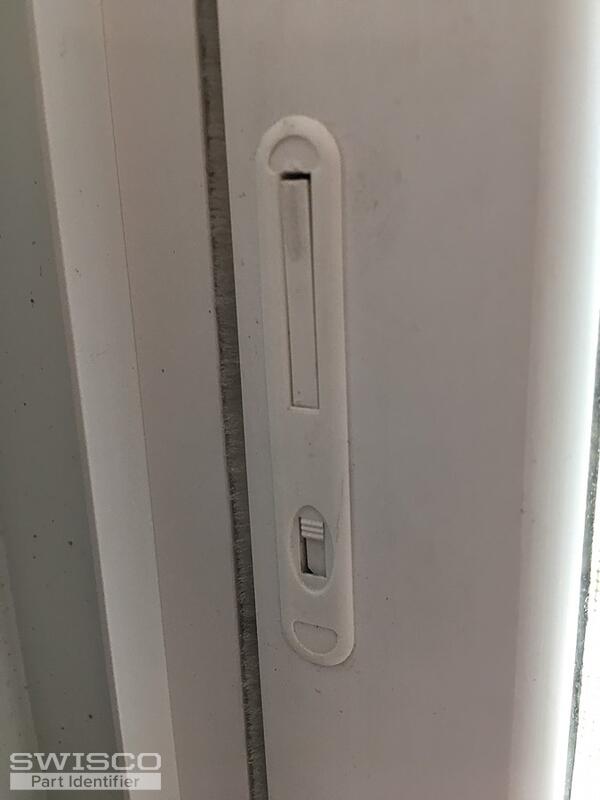

Thumbnail of the uploaded file named Sharpe Sash Vent Stop.jpg

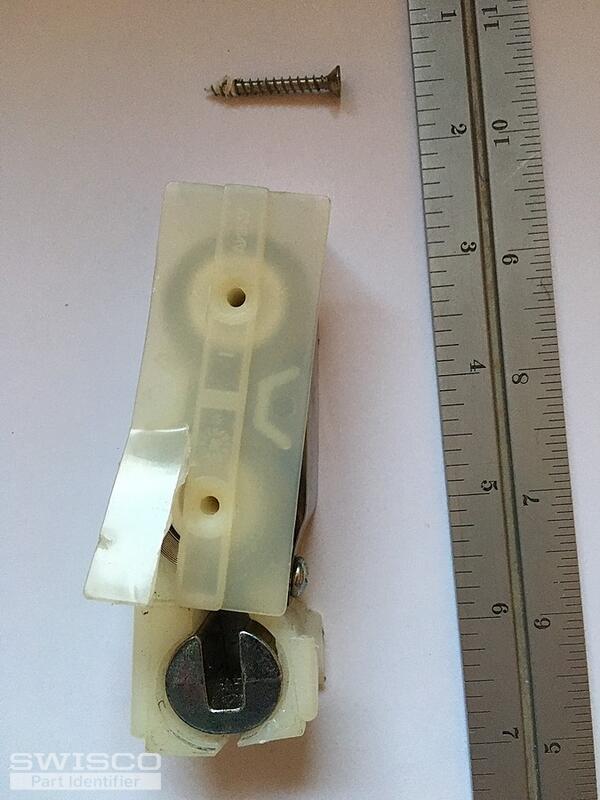

Thumbnail of the uploaded file named Sharpe Balance Assembly 2.jpg

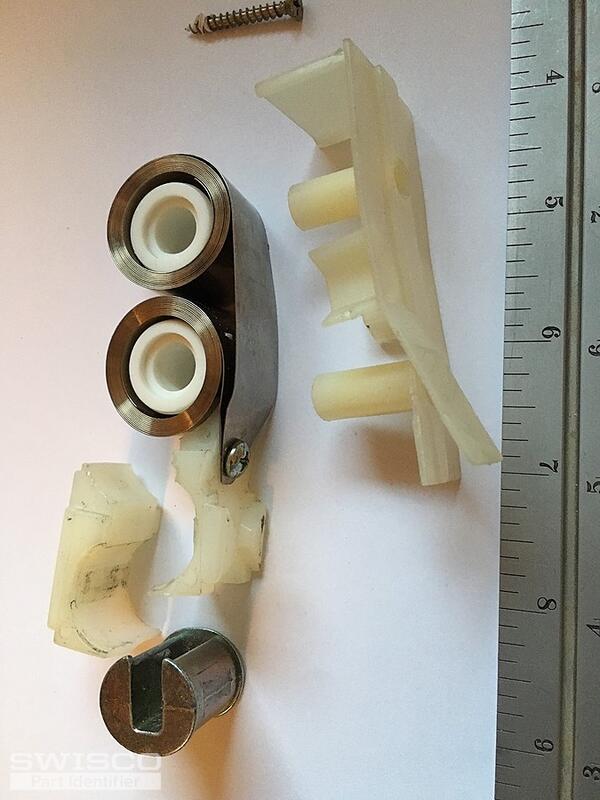

Thumbnail of the uploaded file named Sharpe Balance Assembly 1.jpg
Profile picture of Bob
Bob from SWISCO responded:
January 28, 2022

Thanks for posting. I am afraid this exact Simonton coil balance assembly is no longer made. However, we have found you can replace it with the Series 159 Coil Springs and 15-259 Shoe. The video below shows how to do this.

We do sell jamb spreaders, but you also can make a cutout in the jamb track to remove and replace the balance systems. The second video below shows how to do this for a similar balance system.

For the sash stop, see if the 26-354 matches up.
Coil Balance Pivot Shoe
Coil Balance Pivot Shoe
15-259
$2.57
Sash Vent Stop
Sash Vent Stop
26-354
$2.10
3/4" Coil Double Support
3/4" Coil Double Support
15-256
$1.15
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-083
$1.12
