Simonton Prism windows; manufactured 2006

Question

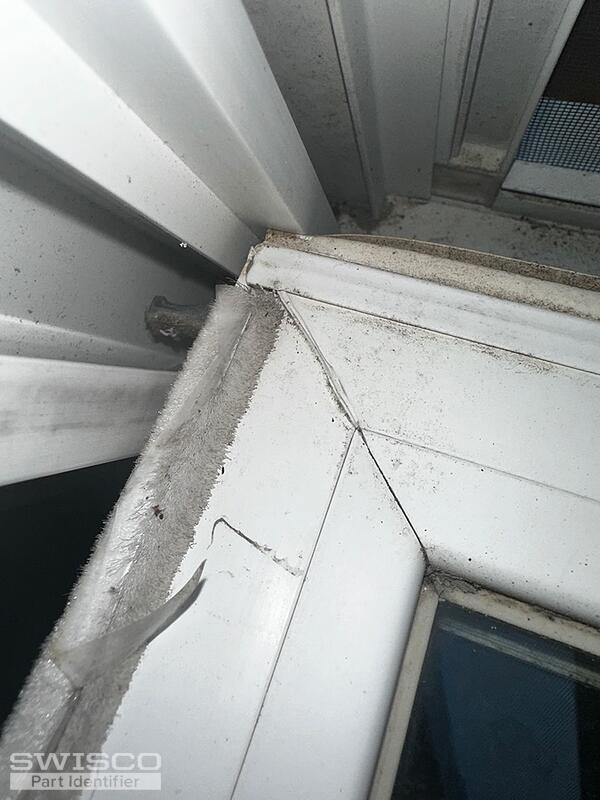

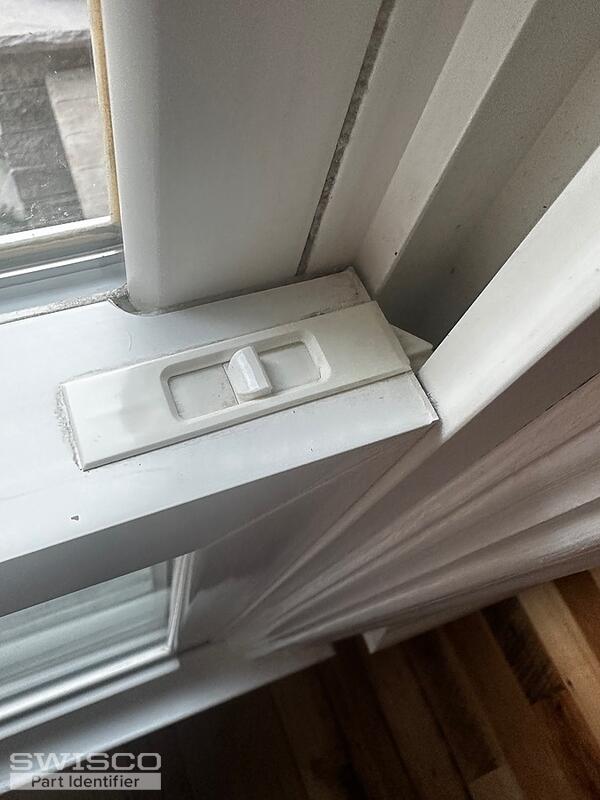

Trying to repair several double hung tilt windows. I think I identified the tilt latches correctly; they are the thicker ones so 26-243 and 26-244. However, several of my constant force balance assemblies are a mess; I had a guy out here who told me I needed "double 3/4 inch constant force balances" as well as the pivot bar with screw to fit my windows. Can you help me figure out which ones to get? Thank you...

Bob · Accepted Answer

Thanks for posting. Firstly, regarding your tilt latches: I agree the 26-243 and 26-244 look promising. Just make sure the dimensions below match what you have. Let me know if anything differs.

Alternate view of 26-243

Profile view of 26-243

Next, regarding the coil balances. This old Simonton system is actually no longer made. Because of this, we've devised a substitute: the 15-259 Pivot Shoe and Series 159 Coil Balances should fit your window. We have a video that walks you through the conversion process. Check it out and let me know if you have any questions.
