I have 1 Simonton window that needs the coil spring, pivot shoe, spring cover and pivot bar to be replaced on both sides of the window. Also have 1 window where the tilt latch needs to be replaced. I also included 2 pictures of the Simonton model.
Not sure what part numbers I need to order.
Thank you.
Tom
Hi there Tom.

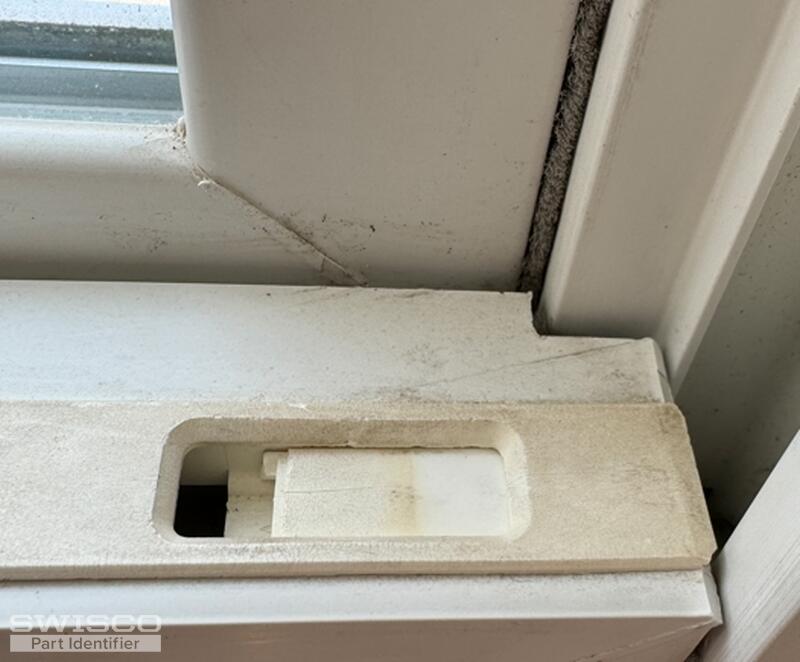

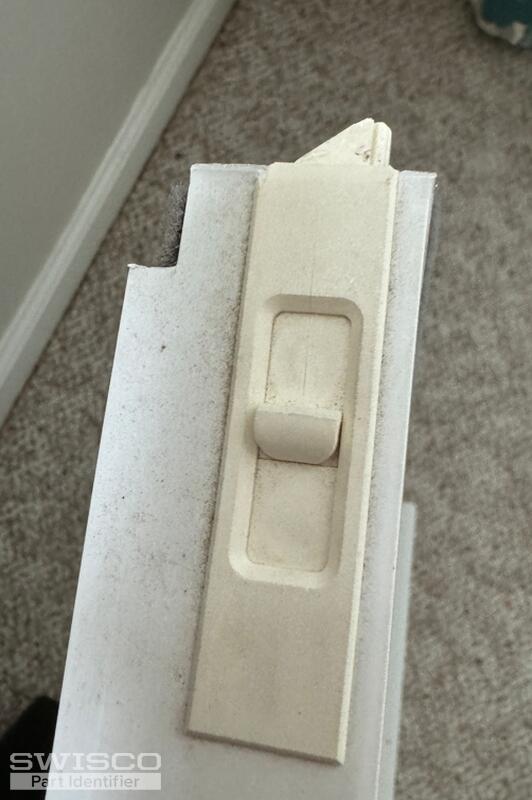

Thanks for reaching out to us. The 26-243 and 26-244 come to mind for the tilt latch. Compare the specifications with an undamaged version of yours to see if they match up.

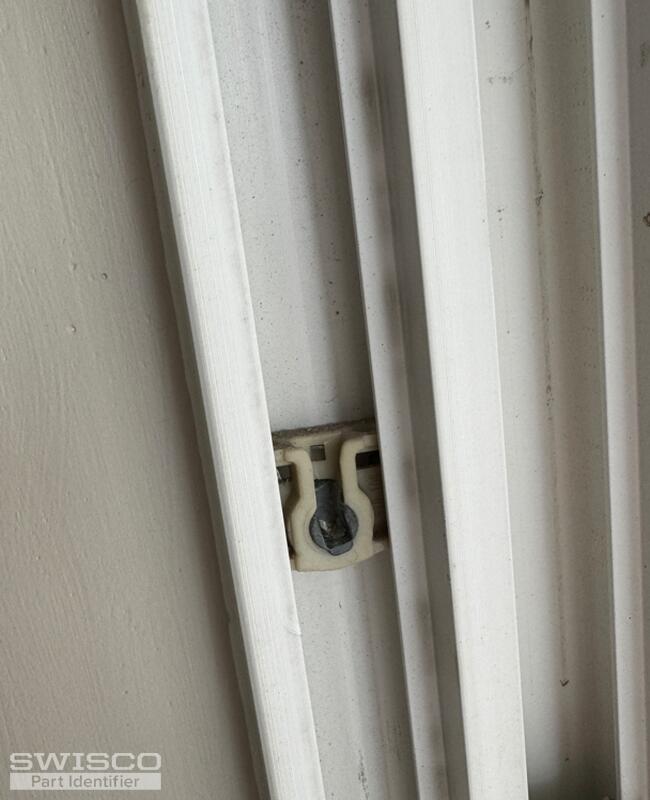

The pivot shoe is too obscured, unfortunately. Can we see a photo of it removed from the window? That will allow us to determine your replacement options.
The 15-111 appears to match your pivot shoe. This part uses the 1/2" Series 160 springs which are compatible with the 15-150D double coil spring support. There should be a stamp printed on the tongue of the coil spring that indicates the proper spring weight.

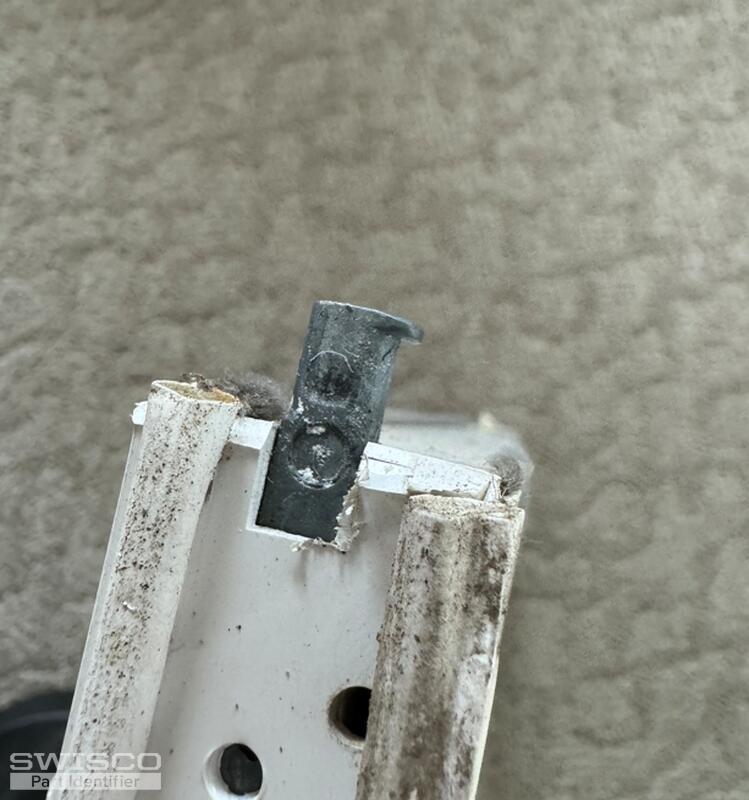

If you need the pivot bar, take a look at the 26-241's specifications to see if they align with your old one.
