Simonton Window Balance Assembly

Question

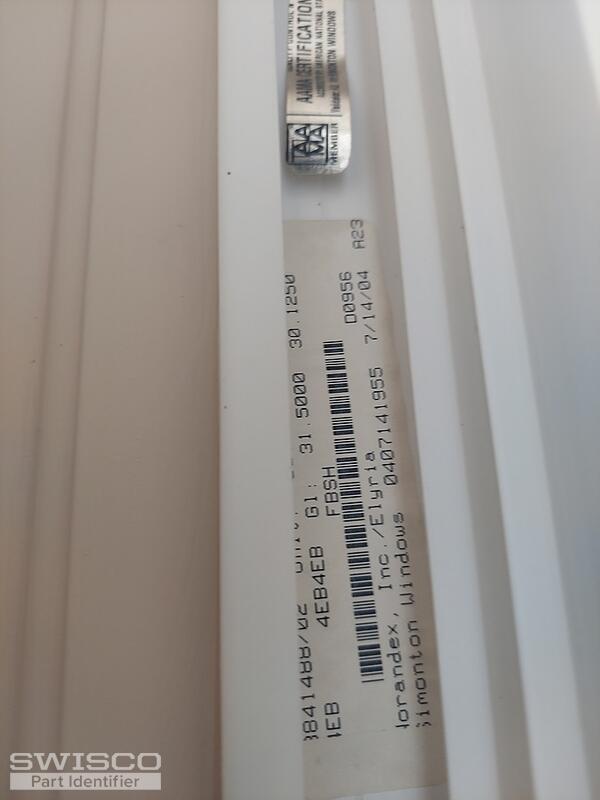

I have 3 Simonton single hung windows looking for i thimk it would be called the balance assembly no sure pictures attached looking from the outside in they are all on left side one on each window installed in 2004
Thanks Sam

Jasmine · Accepted Answer

Thanks for reaching out! Your pivot shoe looks like it could be the 15-199. Carefully compare the dimensions to your existing shoe to confirm that this is the right fit.

Alternate view of 15-199

This shoe is compatible with either the Series 160 (1/2" thick) or Series 165 (3/8" thick) coil balance. To determine which series you need, confirm the thickness of your balance. Once you've confirmed the series, you'll need to look for any stamps/markings on the metal coil. That will help you to determine the spring strength needed for the balance series needed for your window.
