Simonton Window Balance Assemblies

Quick Learner from Skippack, PA
Hello.

I am in the process of replacing broken/outdated, window balance assemblies from Simonton.

I am converting my original, double coil assemblies to single coil ones.

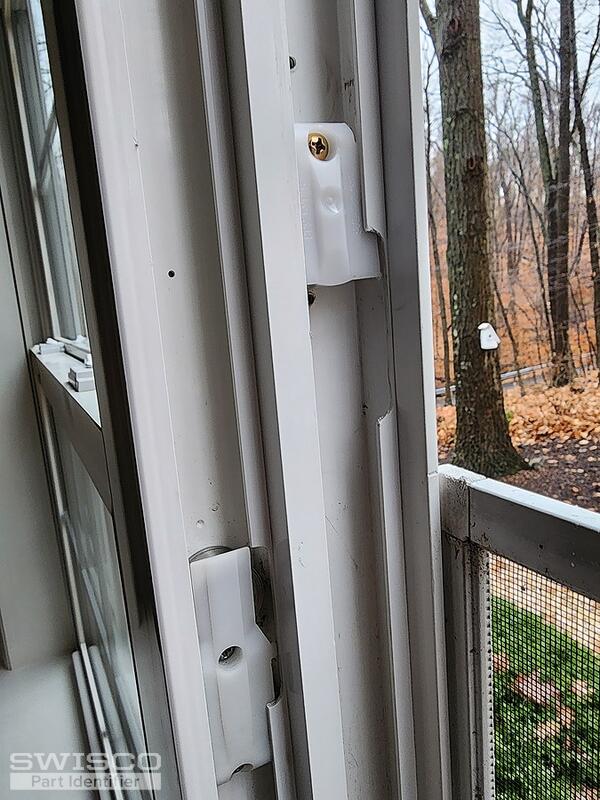

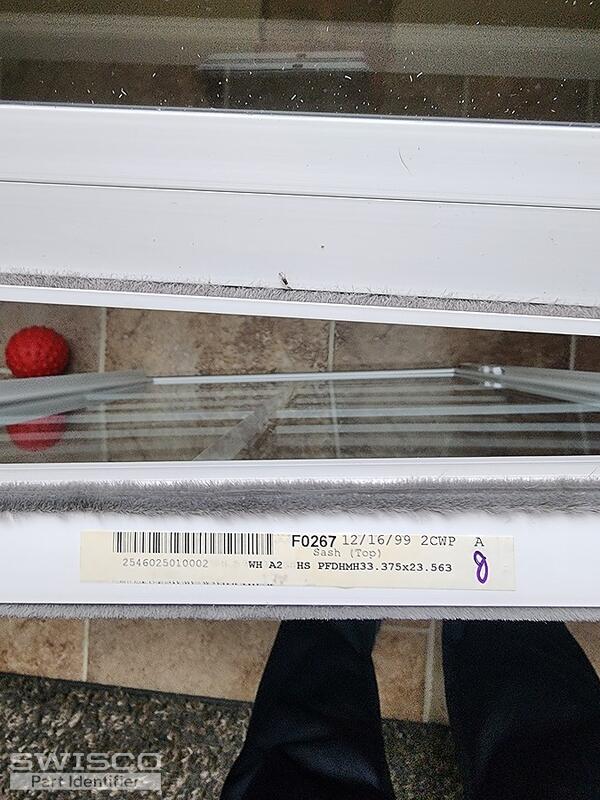

Attached are my Simonton window pics (I already replaced one of the doubles with a single coil that I had).

The sashes weigh 15 lbs. each. So, I would like to use 7.5 lb. rated coils. I have 1/2" wide, window tracks.

I erroneously ordered 3/4" parts and have since sent them back. However, I was able to use the 2 1/2" pivot bars that I received.

Please supply the part number(s) of the replacement coil balance pivot shoes, 7.5 series coil balance, and single coil support. ALL 1/2"

Thank You!

2 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to help but we'll need more information to confirm the correct replacement parts for your window. If you could show us the springs and pivot shoes they attached to removed from the window, we can go from there. See the videos related on this page to assist you. Thanks for posting!

Quick Learner from Skippack, PA
Hello.

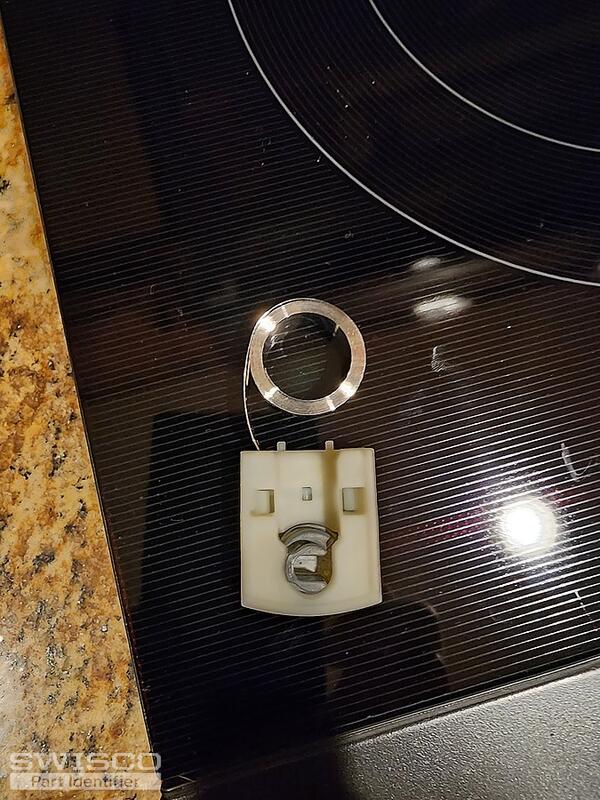

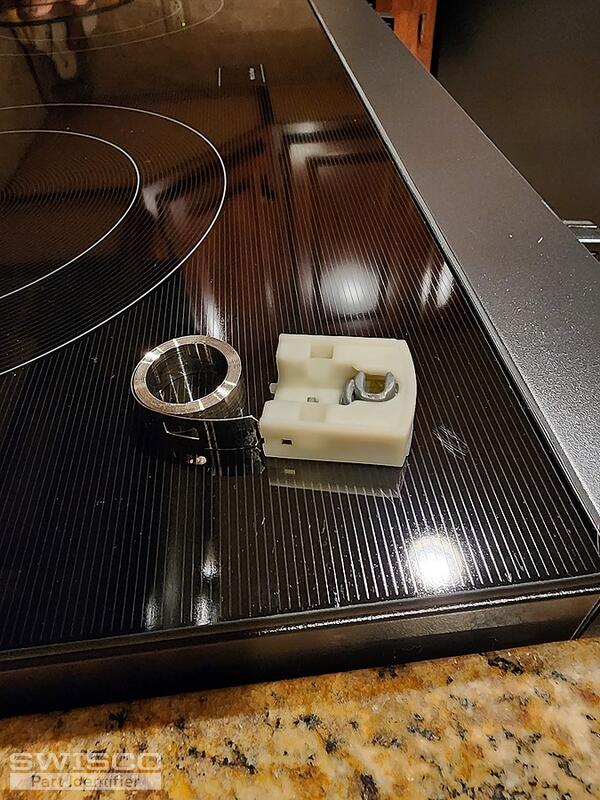

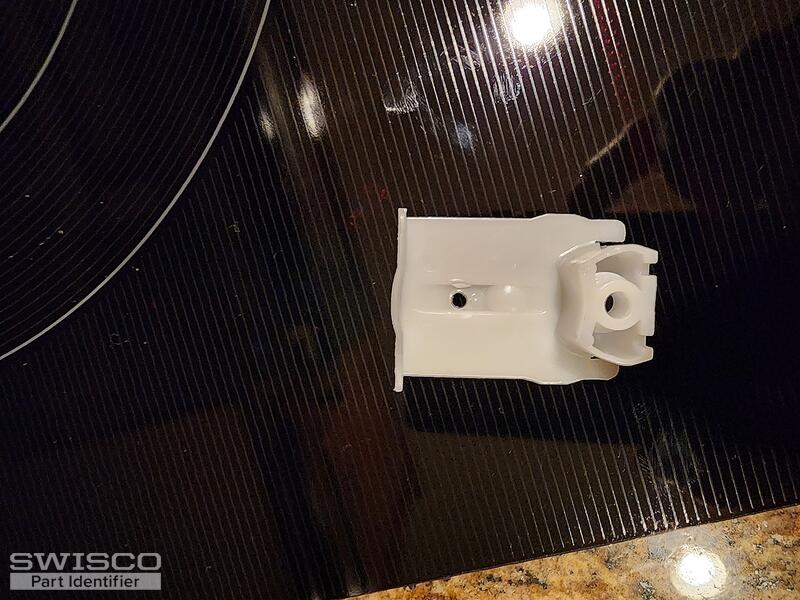

Here are the additional pictures that you had requested.

I believe that my issue is 1/2" vs 3/4". I need 1/2".

Thank You!

3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. Your pivot shoe resembles the 17/32" deep 15-199, which would be compatible with the 1/2" thick S160-07 coil springs. See the 15-150S single supports for the springs.

Alternate view of 15-199
Alternate view of 15-199
