Simonton Window balance and coil

Quick Learner from New Jersey, USA

Sep 27, 2022 5:03 pm

the balance coil broke on my Simonton window and looking for a proper replacement.

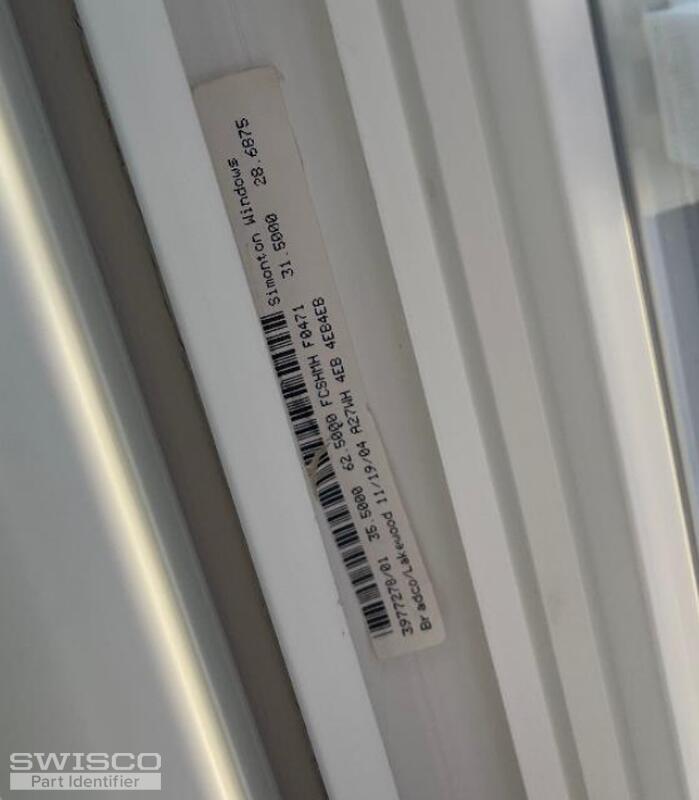

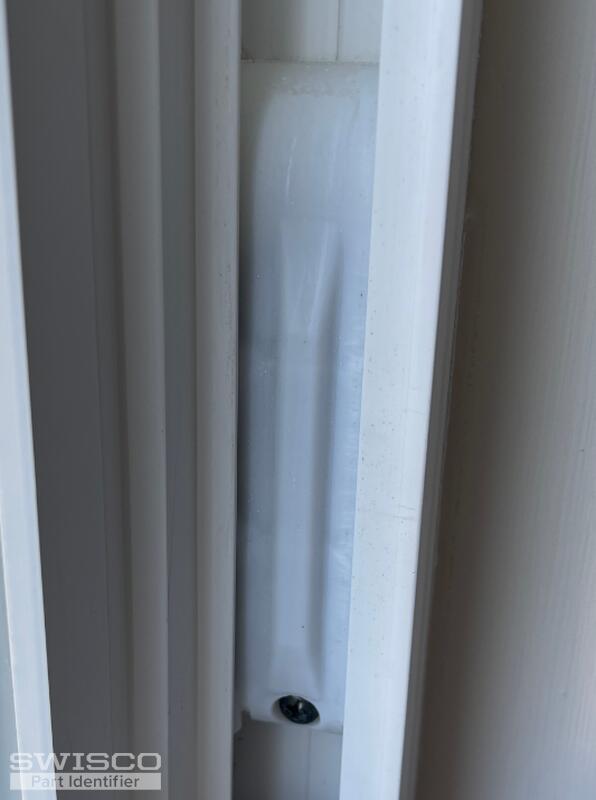

See the attached photos of part and window label. Any guidance or recommendation would be appreciated. Thanks

2 user uploaded images

4 Replies

Casey from SWISCO

Sep 30, 2022 10:05 am

Hello,

We'd be happy to help but we would need to see photos of your pivot shoe and coil springs removed from the window to compare to our inventory. Thank you!

Quick Learner from New Jersey, USA

Oct 3, 2022 11:59 am

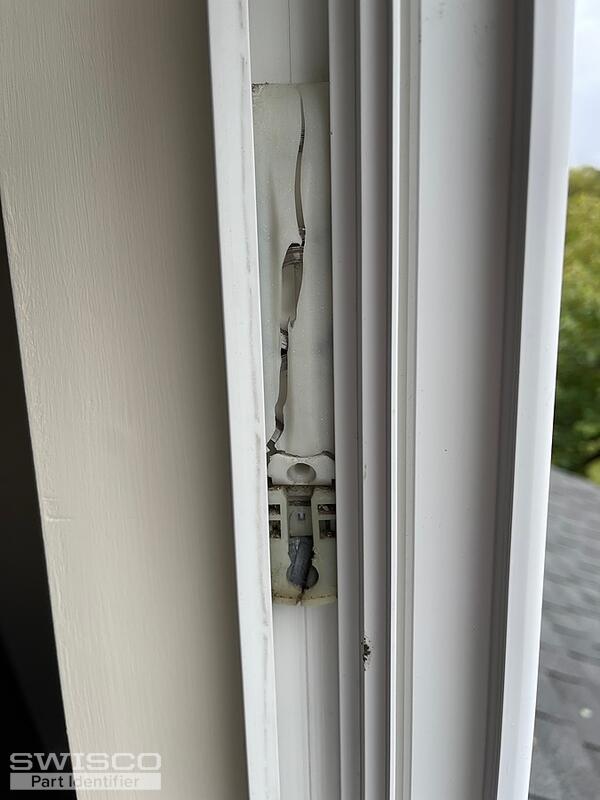

Here is picture of pivot shoe and coil springs.

1 user uploaded image

Casey from SWISCO

Oct 3, 2022 1:04 pm

Your photo resembles the 15-199 pivot shoe, which uses the Series 160 or Series 165 coil springs depending on the width of your originals. You'll need to remove the balance system from the window to compare the dimensions to our parts. There should also be numbers stamped at the base of your coil springs that indicate the strength option needed for your replacements. Once you determine if you have the S160 or S165, you'll find the compatible covers under the related items section of the coil product page. Thanks for posting!
