Simonton Window (circa 2006) single hung balance

Home Owner from Waterville, OH

Aug 12, 2024 8:14 pm

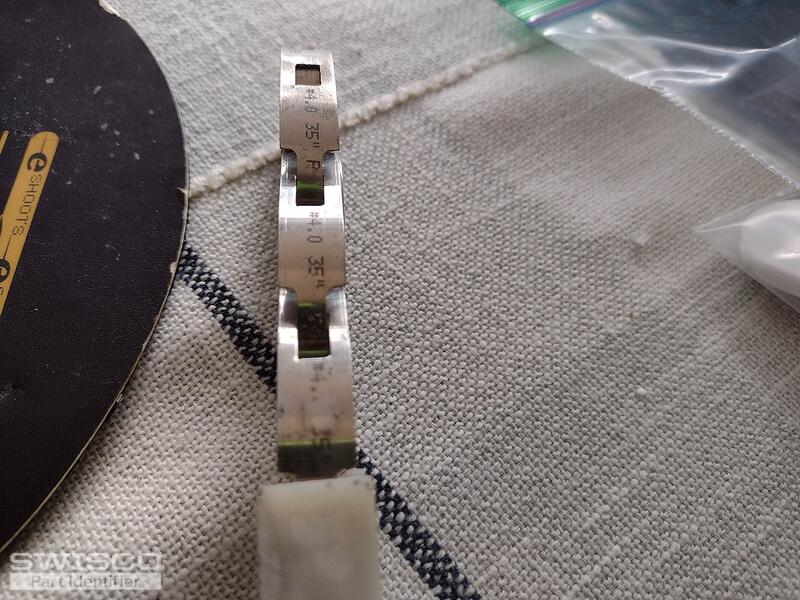

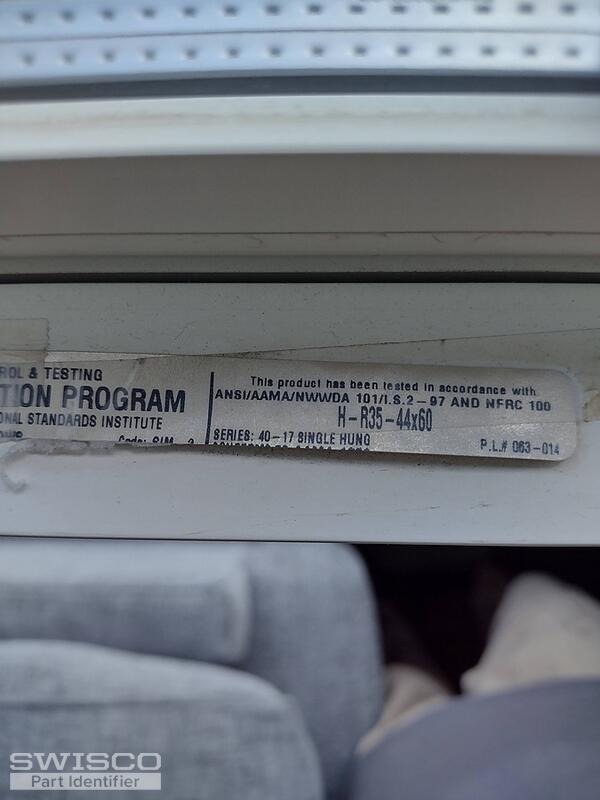

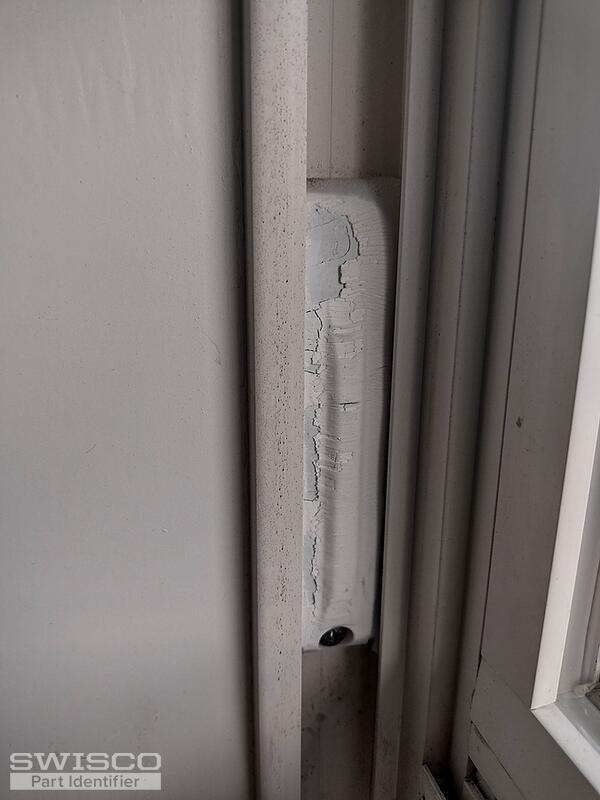

Looking for replacement balances for Simonton single hung window with tilt in sash model 40-17 from 2006. Balance cover has deteriorated from UV exposure. Triple coil...coils have the following same markings on each of the three coils...#4.0 35" 5232208. Thanks!

4 user uploaded images

3 Replies

Home Owner from Waterville, OH

Aug 12, 2024 8:49 pm

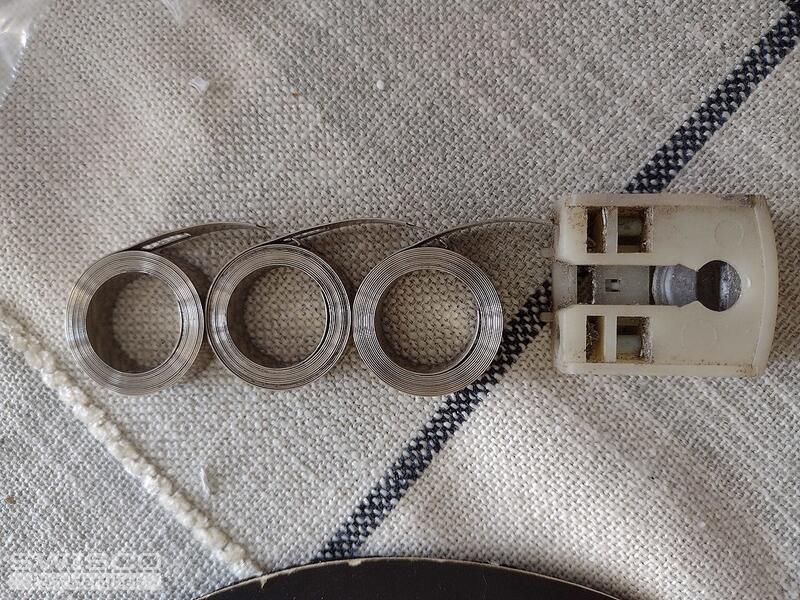

Hmmm...I think all i need is 15-205 3/8" egress coil triple support since everything but the cover is intact and the coils are 3/8" wide and the support looks almost identical to the support on the window.

Emily from SWISCO

Aug 14, 2024 8:44 am

Hello there!

Thanks for reaching out to us. You're correct. You only have to replace what's broken. The 15-205 triple support looks like a great match for your old one.

Let us know if you have any other questions!
