Product Code: 15-205

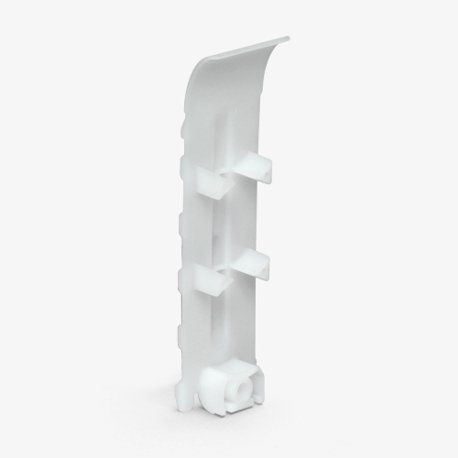

3/8" Egress Coil Triple Support

Name: 3/8" Egress Coil Triple Support
SKU: 15-205
Price: 2.1 USD
Availability: InStock

$2.10

Quantity	Price
1-24	$2.10/ea
25-49	$1.95/ea
50-99	$1.60/ea
100-199	$1.41/ea
200+	$1.30/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

Triple coil spring holder support used in the Series 165 constant force balance window sash support system. Assemblies should be installed with a #8 pan head screw (not included). NOTE: Do not over tighten the screws as this could result in damage to the profile walls.

Helpful Tip!

This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.

How to join 3 coil balances together?

I've identified I need the 165 4 lbs Egress Coil balances to fix my windows. Each side has 3 coils so I was going to buy the 15-205 triple balance cover. My question is...do you provide instructions on how to join the 3 coils together so they operate as a single unit? My current balances are designe ... (cont.)

Balance Assembly and Tilt Latch

The spring is labeled with #4.0, 35", and a code that appears to be PA__2322, with the underscores illegible. I need to replace the balance assembly including spring and cover. I potentially need to replace the pivot shoe, as well. I also need to replace the tilt latch assembly. I have included a pi ... (cont.)

Simonton Coil Triple Support Replacement

Window Stkr: H-R25-48x80, Series 40-17 Single Hung. No markings found on orgnl part. Holds 3x #4.0 35" P coil sprngs. I added captions to pics of 20 yr old, UV baked part based on beam caliper & quadril paper 4sq/inch. Seems similar to ur 15-205. Asking for verification or other suggestion. ... (cont.)

Tripple coil spring window balance replacemnt

Can you please help to identify the parts I should purchase? Thanks!

Window Balances

I need to replaces these window balances on most of my south facing windows.
