Simonton Window won't stay up

Home Owner from San Francisco CA

Aug 20, 2024 11:47 am

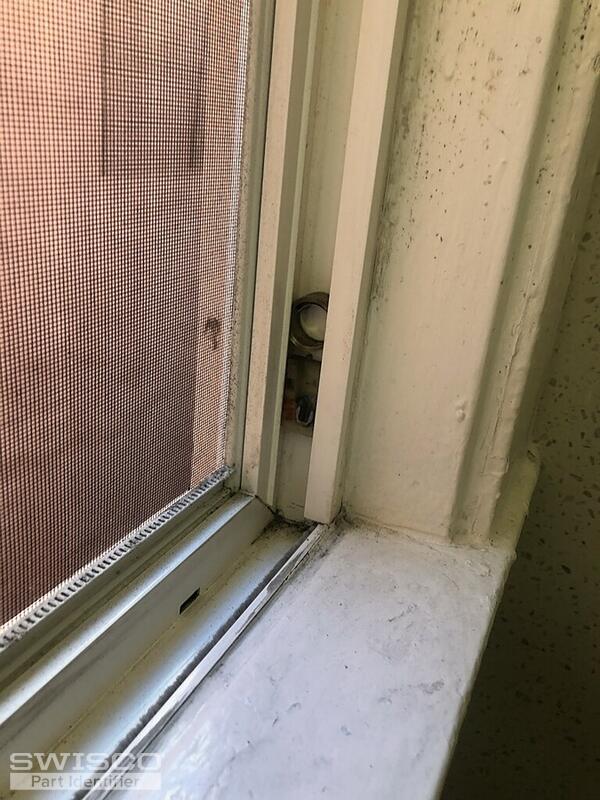

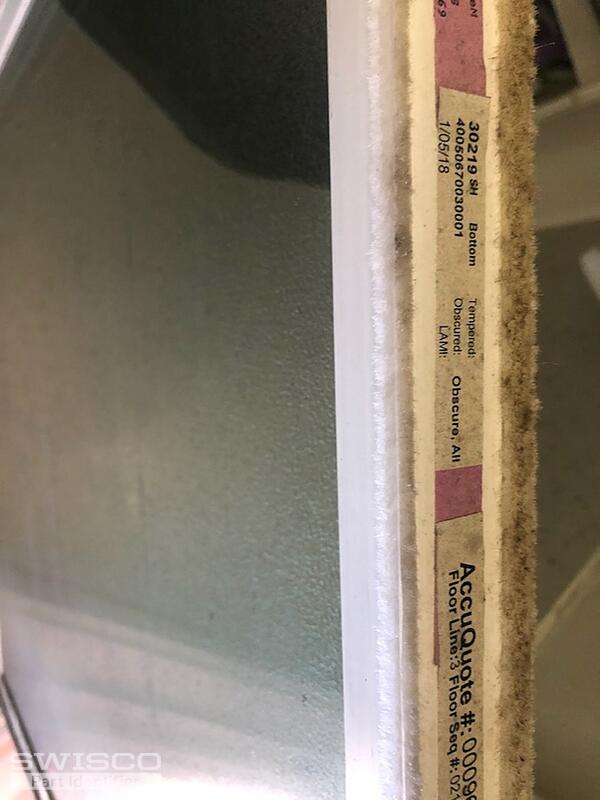

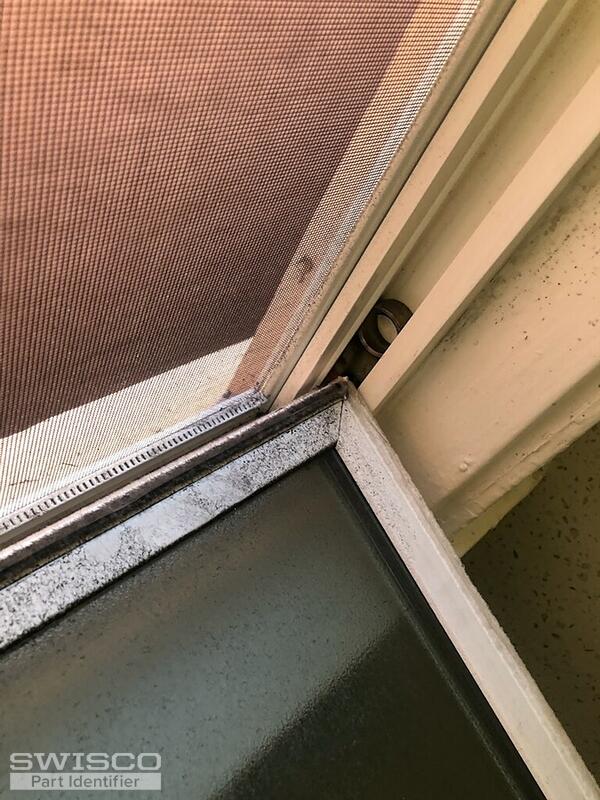

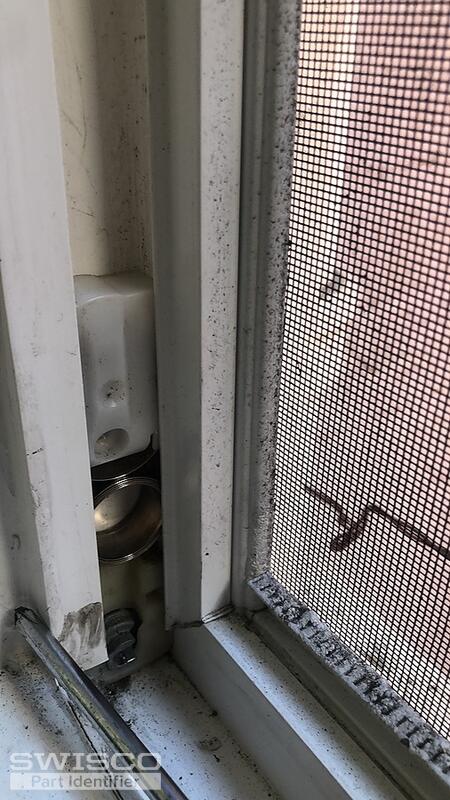

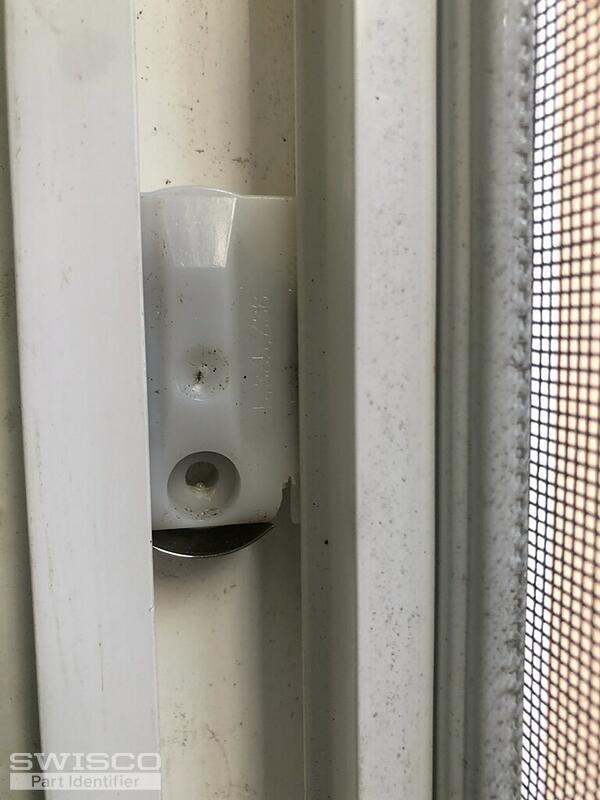

Hoping to buy the correct parts to fix this window. It won't stay up. The coiled spring when stretched out is about 23 inches.

5 user uploaded images

6 Replies

Tom from SWISCO

Aug 22, 2024 10:05 am

Sounds like you need new coil balances. Simonton has made a couple varieties over the years, and yours are unfortunately a little hard to make out while they're still in the track. Is it at all possible to remove it and show us a photo without obstruction? I specifically need to see the pivot shoe.

Home Owner from San Francisco CA

Sep 6, 2024 1:44 pm

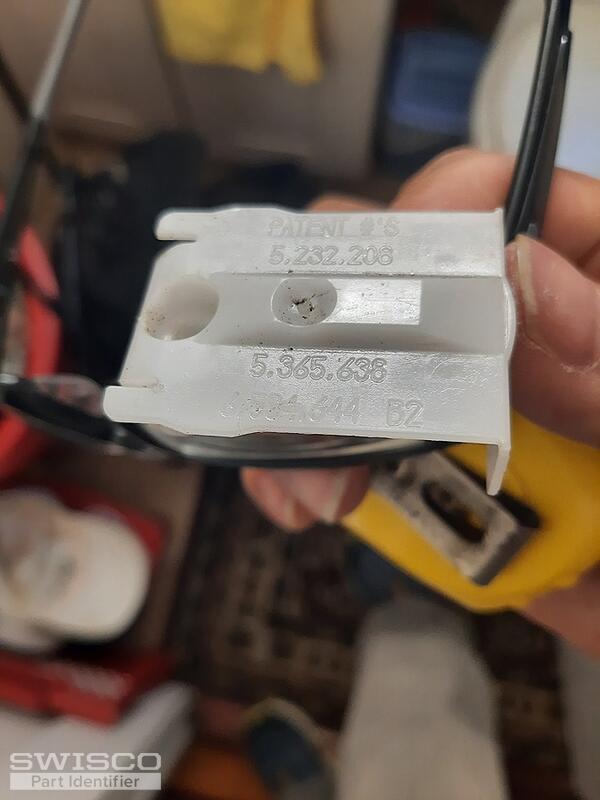

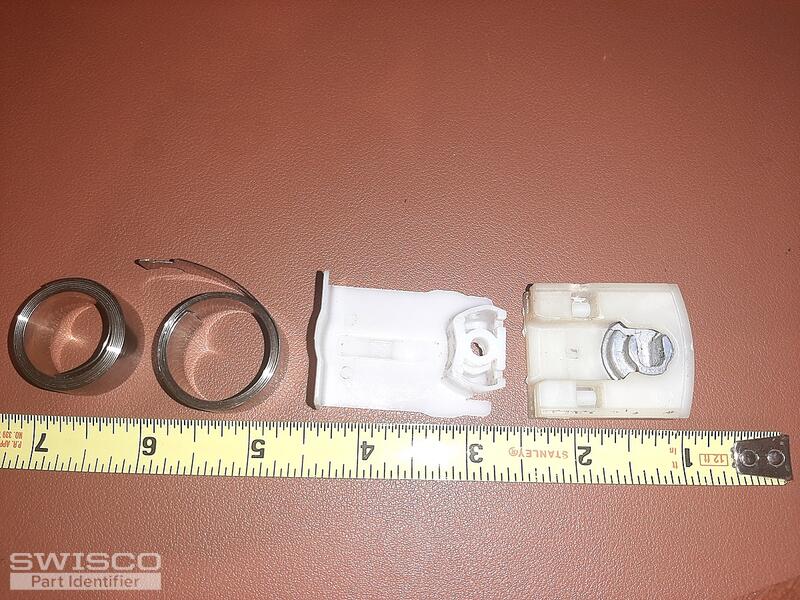

Thanks Tom, Here are the parts that we were able to take out. The only part number that I was able to find was on the plastic cover which is 6.584.644 B2

2 user uploaded images

Tom from SWISCO

Sep 9, 2024 10:36 am

These photos are a huge help, thanks! We do sell these parts, but only as individual components. My top recommendations are:

15-199 pivot shoe
Series 160 coil spring, 1/2"
15-150S 1/2" spring support

Make sure to check the width of the band to ensure that it's the same size at 1/2". If there was no number printed on the spring itself, then you'll have to weigh your sash on a scale to determine the appropriate weight option. What you want to do is get the weight then divide that by how many springs support the sash; in your case, two (one of each side).

Home Owner from San Francisco CA

Sep 9, 2024 3:32 pm

thank you Tom. Just put in my order.

Tom from SWISCO

Sep 10, 2024 8:26 am

No problem! Please let us know if you have any future hardware questions.
