Simonton broken inner frame parts

Question

I am lookin for both window pivot pins, pivot latches inner c shaped pieces and  the inner assist Springs.

Casey · Accepted Answer

Hello,

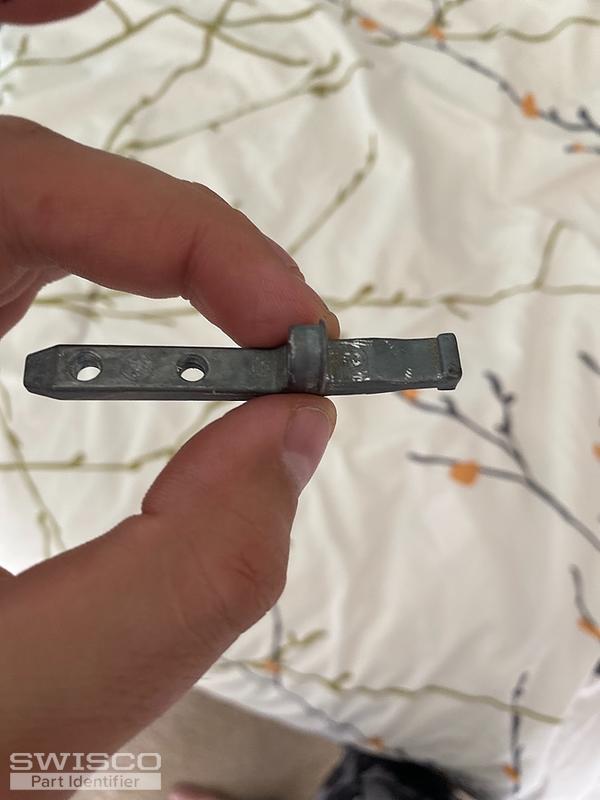

The manufacturer of your part, Simonton, specifically designed the 26-336 to replace the pivot bar in your photo. Also, take a look and compare our 15-192 pivot shoe to yours, though you may need to reuse your existing metal cams. These pivot shoes are used with Series the 170 and Series 171 coil springs.

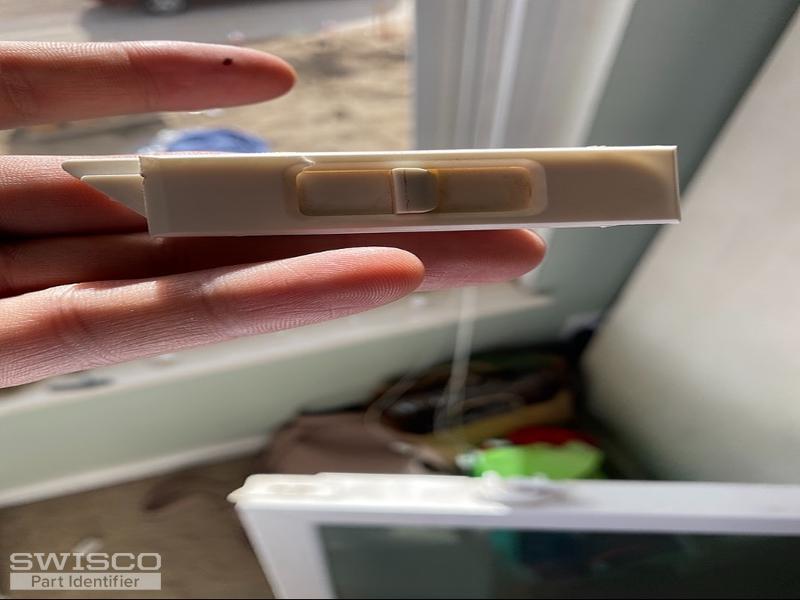

As for your tilt latches, your photo appears to be distorted but you can start by comparing our 2-5/8" long 26-419 and 26-420 or 26-243 and 26-244 but you'll need to compare all of the dimensions on both product pages to see if one of these sets could work for you. Thank you!
