Simonton coil balance assembly

A quick learner from Middletown, PA says:
October 30, 2022
Need replacement coil balance for Simonton window,see picture for model sticker. Please confirm which assembly would work with this window. I understand I may need pivot shoe (15-259), coil support (15-255), coil spring (S159), and pivot bar (26-083). Is this correct? My current coil spring does not list the weight, the only number inked on spring is "4095" or "409S".
Thumbnail of the uploaded file named 597A6DAC-5FA2-45C3-AECF-B0AA8A83B210.jpeg
Thumbnail of the uploaded file named 5F11C7AF-AAB7-44CF-BD8E-C6AE68A4F853.jpeg
Thumbnail of the uploaded file named 536D6810-E1D1-4687-B082-8F8822639C67.jpeg

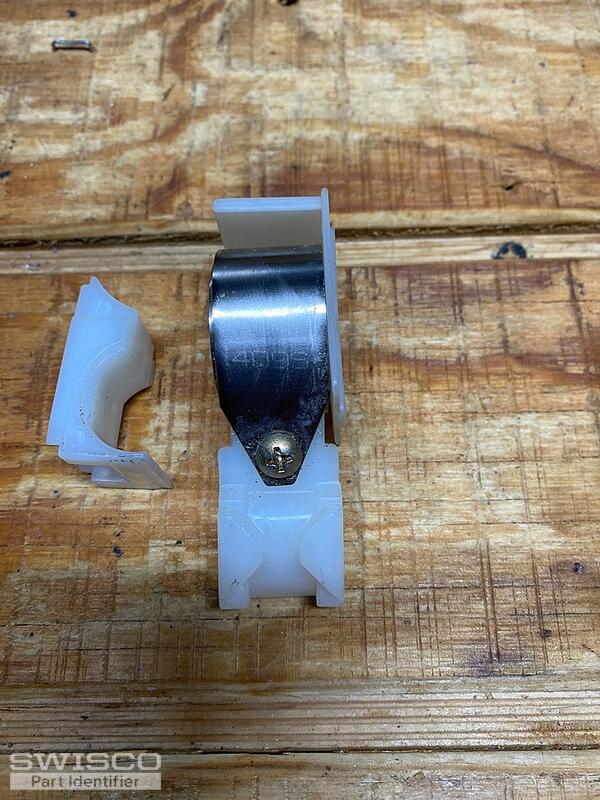

Thumbnail of the uploaded file named 5373E965-8CAA-45AF-A460-4CF49362EDB5.jpeg
Profile picture of Casey
Casey from SWISCO responded:
November 3, 2022

Hello,

It sounds like you may have seen the Simonton conversion video below, which I agree would be the best replacement option for your original hardware. I would also recommend weighing your window sash and dividing the weight by the number of coils on both sides of the widnow to confirm the correct strength options for your relacement S159 springs. Thank you.
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-083
$1.12
Coil Balance Pivot Shoe
Coil Balance Pivot Shoe
15-259
$2.57
