Simonton double hung windows

Home Owner from Ridgeley, WV

Mar 25, 2023 11:47 am

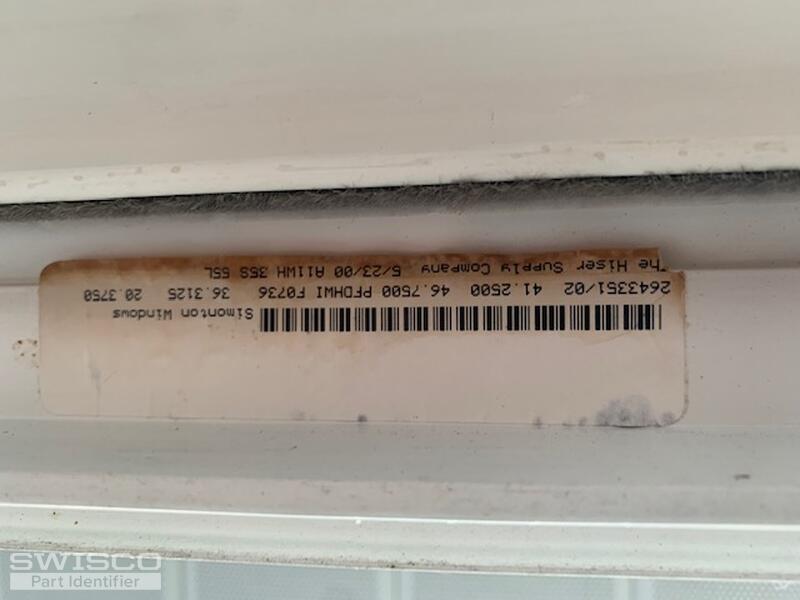

Need to know which double coil springs and shoes along with the pivot bars I need. I need to replace both sides of the windows. I have 4 windows I need to repaire.

5 user uploaded images

4 Replies

Lauren from SWISCO

Mar 28, 2023 9:36 am

Hello, thank you for posting,

Your balance assembly resembles the 15-199 that is compatible with either the 1/2" thick Series 160 or 3/8" thick Series 165 coil springs. Please review all dimensions to confirm a good fit!

Alternate view of 15-199

To further review for a replacement pivot bar, are you able to show us your original? Thank you!

Home Owner from Ridgeley, WV

Mar 28, 2023 6:48 pm

Thank you, what about the coil spring assembly. Any idea on it?

Lauren from SWISCO

Mar 29, 2023 8:11 am

The 15-199 pivot shoe is compatible with either the 1/2" thick Series 160 or 3/8" thick Series 165 coil springs. You will need to measure your original spring to determine the correct series.

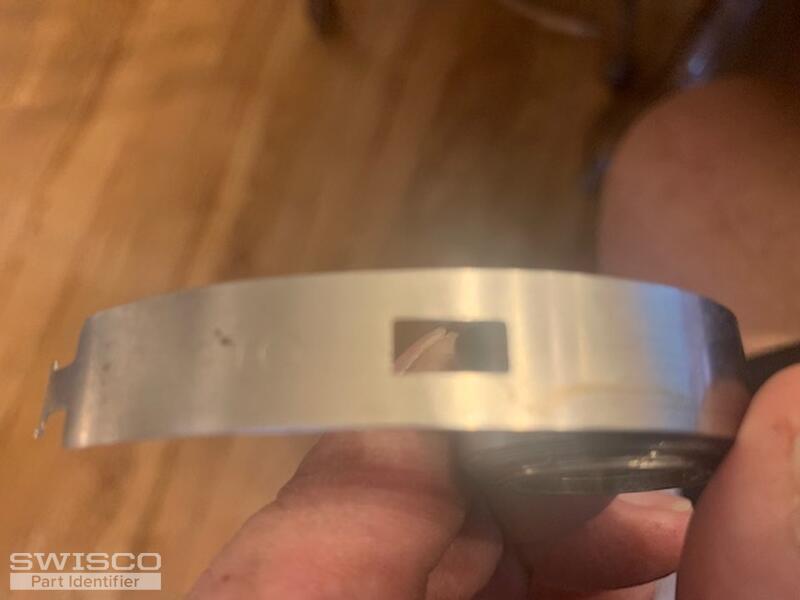

Once the series is determined, review the original coil springs to see if there are any numbers stamped on the metal that will indicate the weight options needed to support the sash.

If these numbers are unclear or missing, please provide the weight of the window sash to move forward. Thank you!
