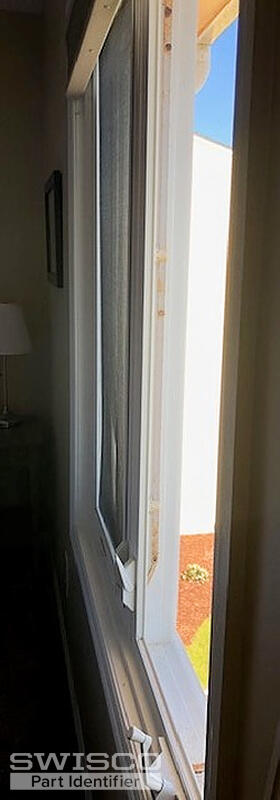

Simonton replacement casement window parts - circa 2000

Hello,

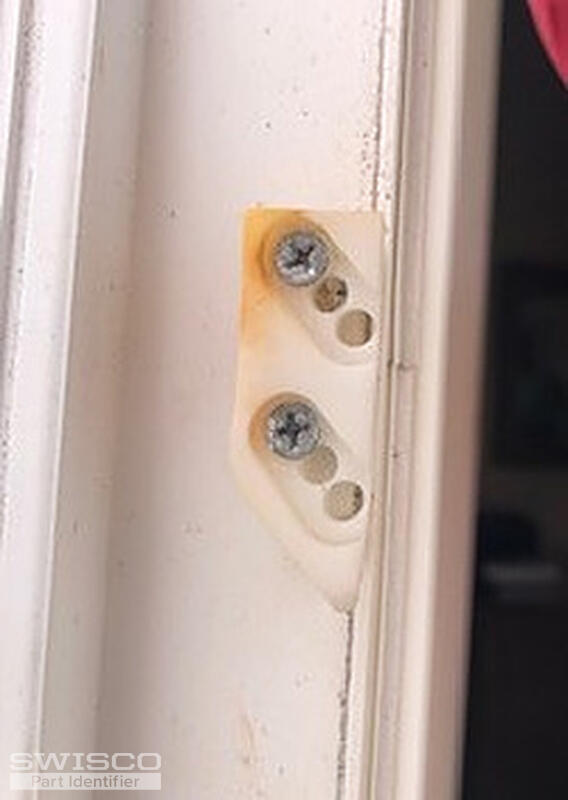

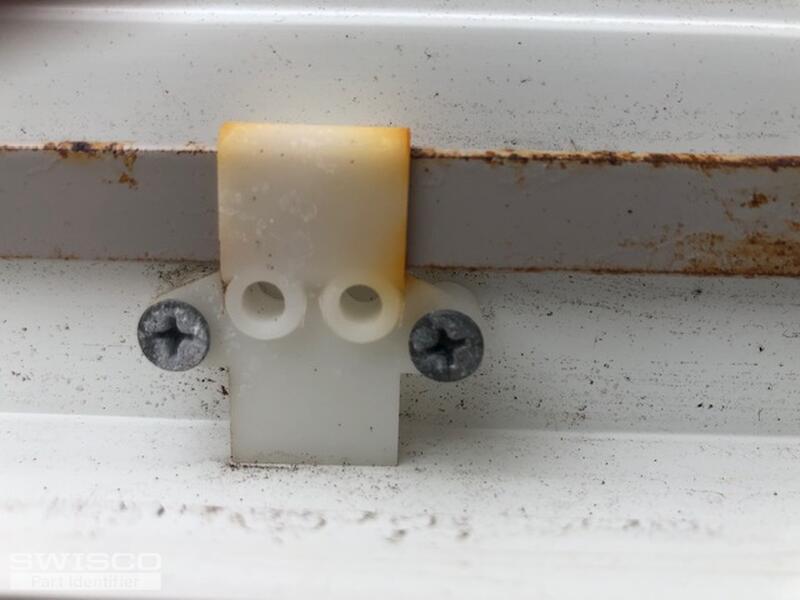

I agree that as long as the dimensions shown on our product pages match up to yours, the 38-091 and 38-092 do look like promising replacements for your casement window lock. I also agree that either the 39-417 or 39-448 tie bar guide could work for your repair. The keepers shown in your photos resemble our 38-130 and 38-131.

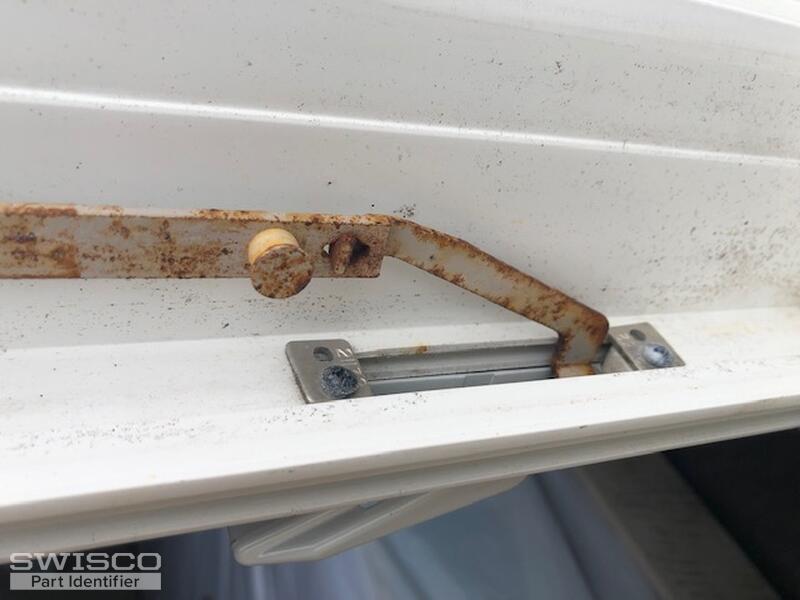

The only part in question would be the tie bar itself. Unfortunately, we only carry one 38.9" long tie bar, the 38-907, but it has cone-shaped rollers that differ from yours. Due to this difference, I am not confident that it would work for your application. We apologize for the inconvenience.

It looks like the tie bar shown in your photos uses interlock rollers, while the 38-907 uses cone-shaped rollers. Unfortunately, they are not designed to be used interchangeably. As for the 38-919 that you mentioned, a 46.9 tie bar will not fit in your window if the original only measures 38.9" long. It also uses cone-shaped rollers, which you do not have. I'm sorry that we won't be able to supply a closer match.

Thank you for confirming! We do offer the 38-968 tie bar guide with the roller shape and 46.9" length that you need. Review the specifications below and see what you think. Unfortunately, we do not carry a tie bar that will work as a replacement for your shorter assembly.

Dimensions for 38-968

The number of rollers is important but we do not currently carry a version of the tie bar that you need with four rollers. Please give me a bit more time and I will check with our inventory manager to confirm if any of our suppliers can provide a closer match.

Thank you for your patience. If you have interlock rollers and the tie bar measures 38.9", we can supply replacements with either 2 rollers or 3 rollers. If you see 4 rollers, one of them is most likely the lock drive point.

I would recommend sending us detailed photos of your entire 38.9" and 46.9" tie bars to confirm if the parts that we can supply would work for your application. Please note that it will take at least 5-6 weeks to have the 38.9" tie bars manufactured. If you would like to wait and purchase them, we would be happy to get the process started for you.
